Product Overview
3/4" Offset Light-Duty Pivot Set - Includes Top and Bottom Pivot - For use with interior doors up to 300 lbs.
- 626 Satin Chrome Finish Standard
- Top pivot 180 included
- Model 119 or M19 intermediate pivot(s) sold separately
- Bottom pivot mortised into floor
- Non-ferrous base material
- Doors up to 90" in height should use one intermediate pivot. Each additional 30" of door height warrants another intermediate pivot
- 3/4" offset (measured from centerline of pivot to face of door)
- Door edges must be beveled 1/8" in 2"
- Furnished with wood and machine screws
- Doors will swing 180°, trim permitting
| Brand | |
|---|---|
| Hand |
LH (Left Hand), RH (Right Hand) |
| Door Weight |
up to 300 lbs. |
| Compliance |
ANSI/C07162/C07202 |
| Usage |
Light Duty |
| Pivot Type |
Offset Pivots |
| Finishes |
626 Satin Chrome |
Related Products
-
McKinney - 5540/5545 Reinforcing Pivot Hinge
Starting at: $72.68 -
Hager - 253 Full Surface Reinforcing Pivot
Starting at: $113.09 -
Adams Rite - B1923 Reinforcing Pivot
Starting at: $67.49 -
Cal-Royal - RPH45 Full Surface Reinforcing Pivot
Starting at: $85.36 -
Cal-Royal - PV010 Intermediate Pivot
Multiple FinishesStarting at: $167.69
Usage: Heavy Duty -
ABH - 019 Intermediate Pivot
Starting at: $130.24Usage: Heavy Duty -
ABH - 0117 Offset Pivot Set
Starting at: $192.81Usage: Standard Duty -
ABH - 0127 Jamb Mounted Pivot Set, Center Hung
Starting at: $127.97Usage: Standard Duty -
ABH - 0128 Floor Mount Pivot Set, Center Hung
Starting at: $127.97Usage: Standard Duty -
ABH - 0147 Offset Pivot Set
Starting at: $256.51Usage: Heavy Duty -
ABH - 0195 Offset Pivot Set
Starting at: $244.56Usage: Heavy Duty -
ABH - 0519 Pocket Door Pivot
Starting at: $241.72Usage: Heavy Duty -
Rixson - 117 Offset Pivot Set
Starting at: $452.77Usage: Light Duty -
Rixson - 127-3/4 Center Hung Side Jamb Attached Pivot Set
Multiple FinishesStarting at: $296.56
Usage: Light Duty -
Rixson - 128-3/4 Center Hung Side Pivot Set
Multiple FinishesStarting at: $296.56
Usage: Light Duty -
Rixson - 147 Offset Pivot Set
Multiple FinishesStarting at: $637.75
Usage: Standard Duty -
Rixson - L147 Offset Pivot Set
Starting at: $895.56Usage: Heavy Duty -
Rixson - 195 Jamb Attached Offset Pivot Set
Multiple FinishesStarting at: $625.42
Usage: Standard Duty -
Rixson - 370 Center Hung Pivot Set
Starting at: $438.09Usage: Standard Duty -
Rixson - M19 Offset Intermediate Pivot
Multiple FinishesStarting at: $333.56
Usage: Standard Duty -
Rixson - E-M19 Offset Electrified Intermediate Pivot
Starting at: $582.55Usage: Standard Duty -
Ives - 7215 Jamb Mount 3/4" Offset Pivot Set
Starting at: $445.18Usage: Standard Duty -
Ives - 7215-7226-7227 INT 3/4" Offset Intermediate Pivot
Starting at: $227.44Usage: Standard Duty -
Ives - 7230F 3/4" Offset Pivot Set, 1000 lb, Fire Rated
Starting at: $737.03Usage: Heavy Duty -
Ives - 7230F-7237F INT 3/4" Offset Intermediate Pivot, Fire-Rated
Starting at: $445.18Usage: Standard Duty -
Ives - 7255 Center Hung Pivot Set
Starting at: $360.30Usage: Standard Duty -
Ives - 91105F Pocket Pivot Hinge, Fire-Rated
Starting at: $476.48Usage: Standard Duty -
McKinney - 8540/8545 Reinforcing Pivot Hinge
Starting at: $32.70 -
McKinney - 4007 Double Acting Spring Pivot Hinge
Starting at: $1,166.84 -
McKinney - 8007 Double Acting Gravity Pivot Hinge
Starting at: $159.89

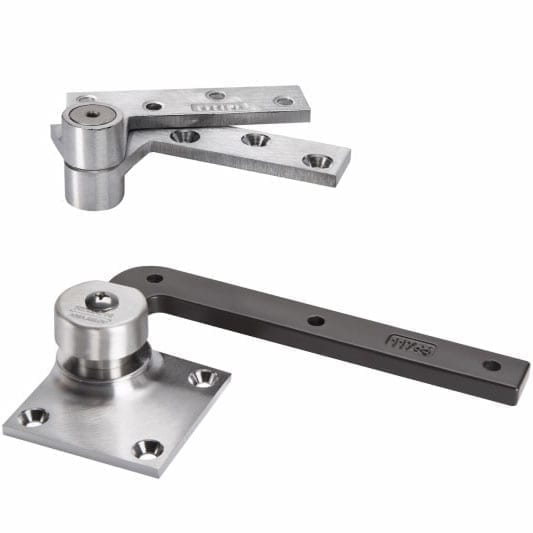

Rixson 117 Offset Pivot Set
