Product Overview

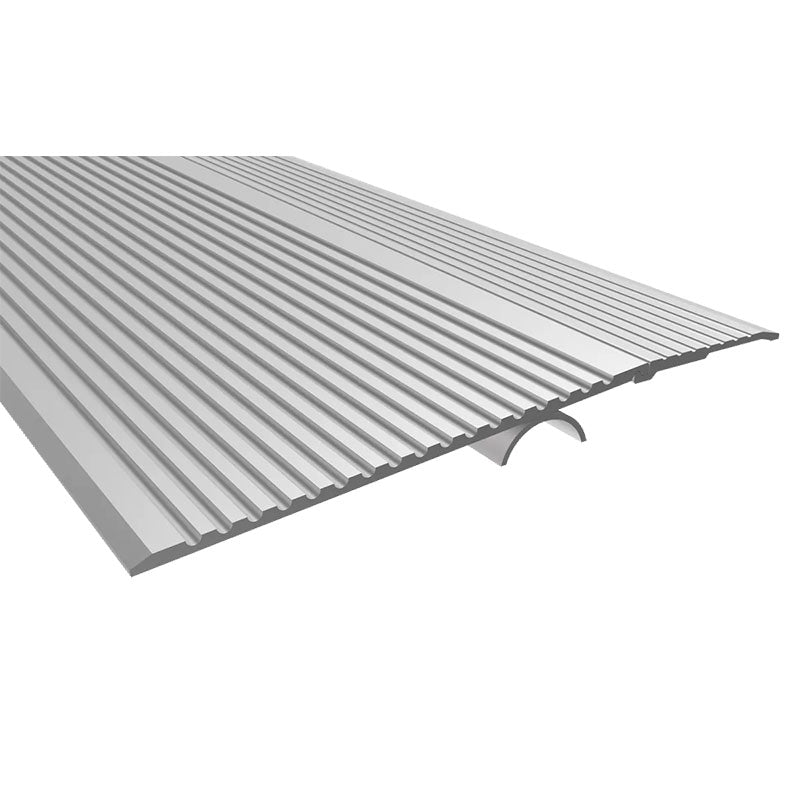

Pemko RVARIOSS Series Variable Ramp Assembly, 13-1/2" Wide, Adjusts for 1/4" to 1-1/4" Offsets
The RVARIOSS Variable Ramp Assembly with a 3 1/2" top plate is a versatile solution for creating wheelchair accessible entryways. This assembly allows for smooth and easy transitions between different height surfaces and adjusts for 1/4" to 1-1/4" offsets. It includes RAMP2, RAMP7, and RAMP8 components. With its durable construction and adjustable design, it provides a reliable and customizable ramp system for individuals with mobility needs.

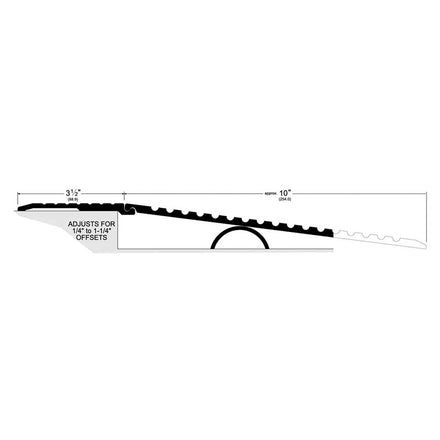

- Total ramp length: 13-1/2" (342.9 mm)
- Total plate length: 3-1/2" (88.9 mm)
- Ramp components length: 10" (254.0 mm)
- Offset: 1/4" to 1-1/4" (6.4 mm - 31.8 mm)
- Number of components: 3
- Assemblies are supplied with #10 stainless steel wood screws
- Assemblies are provided NET length
- Mill finish (optional Pemkote skid resistant finish)
- Pemkote™ is highly recommended for all threshold assemblies, especially exterior conditions where moisture may be present. Pemkote Meets Requirements of: ASTM D 2047 & Federal Specifications P-F-430C.
Finishes
- RVARIOSSA: A - Mill Finish Aluminum Aluminum
- RVARIOSSAK: AK - PemKote Skid Resistant Surfacing Aluminum
This product is fabricated to order and is not returnable or refundable.
| Brand | |
|---|---|
| Finishes |
Mill Finish Aluminum, AK - Mill Finish Aluminum w/ PemKote |
| Length |
36", 60", 72", 84", 96", 48" |
| Width |
13-1/2" |
| Height |
1-1/4" |
| Fire-Rating |
Fire rated-UL10c |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
