Pemko 257X259_ Modular Aluminum Ramp Threshold - 12" Wide

$157.93

Usually Ships: 5-10 Business Days

12″ Wide, 1/2" offset
ADA compliant
Fire-rated up to 3 hours

Available Options:

Clear

Finish
Length

Quantity:

Added to Cart

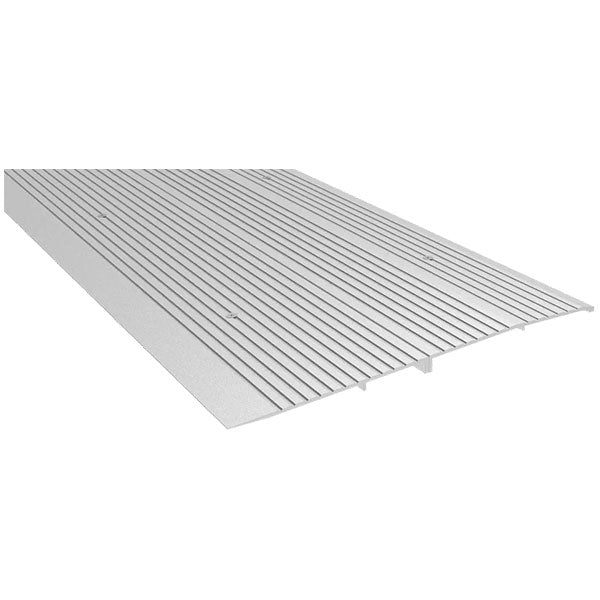

Pemko 257X259 Aluminum Ramp, 12" W

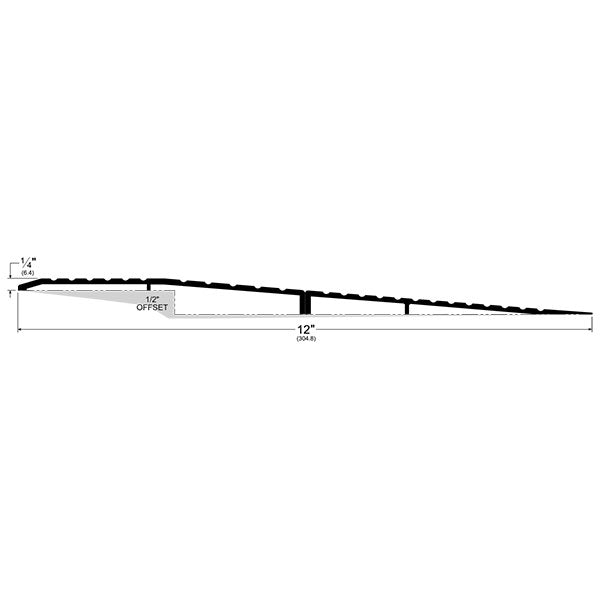

The 257x259 Ramp Threshold is a 12" modular ramp threshold designed for barrier-free accessibility. It has a 1/2" offset with a short top plate. This threshold is recommended for exterior conditions where moisture may be present, and PemKote non-slip coasting application is highly recommended for added protection. Its fire rated, BHMA certified, and ADA compliant.

12" wide
Fluted top

Ratings

BHMA Certified
ADA Compliant
Fire Rated - UL10C - Positive Pressure
Underwriters Laboratory 4L10

Warranty Info

Guaranteed for five (5) years against defects in material or workmanship, except: Powder Coated finishes are warranted for two (2) years; normal wear is not included in coverage.

Brand	Pemko
Finishes	Mill Finish Aluminum, BSP - Black Suede Powder Coat
Length	36", 48", 72", 96"
Width	12"
Height	1/4"
Fire-Rating	Fire rated-UL10c
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Buy American Act Compliance	Meets Buy American Act - Made in USA

Pemko-257x259-Modular-Ramps-Barrier-Free-Ramp-Thresholds-Cut-Sheet

Pemko 257X259_ Modular Aluminum Ramp Threshold - 12" Wide

Pemko 257X259_ Modular Aluminum Ramp Threshold - 12" Wide

Product Overview

Pemko 257X259 Aluminum Ramp, 12" W

Specifications

Specification Sheets
