Product Overview

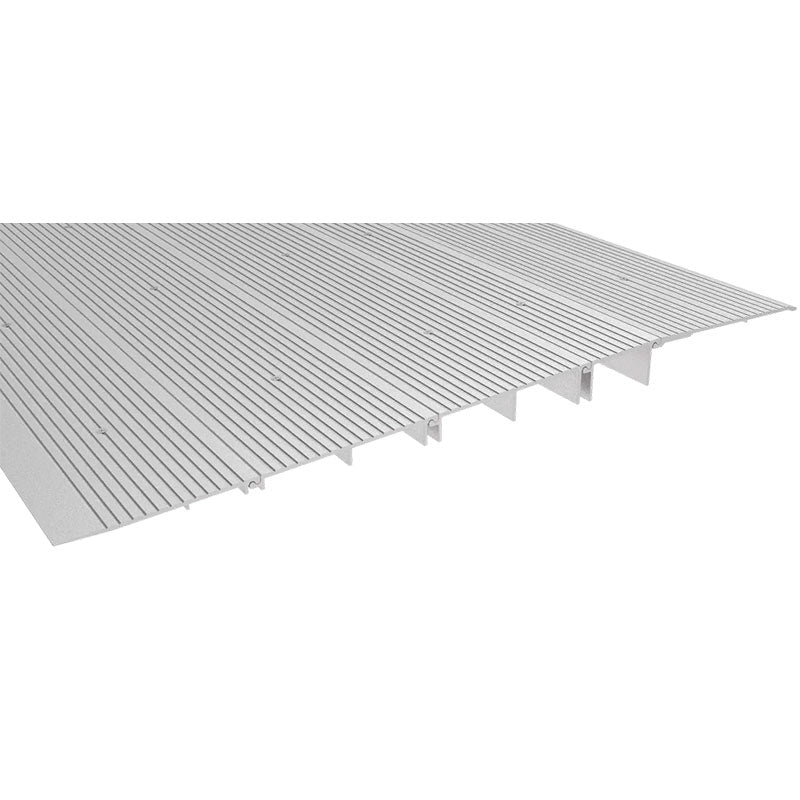

Pemko R1.5OS_ 1-1/2" H x 28-3/4" W ADA Compliant Aluminum Interlocking Ramp

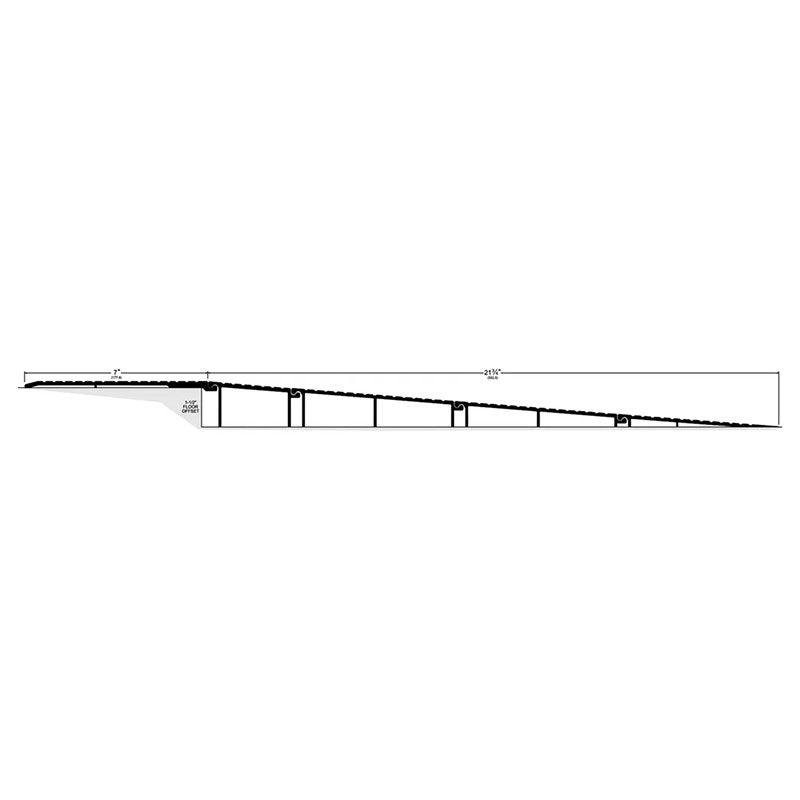

The R1.5OS 1-1/2" Offset Modular Ramp Assembly with a 7" top plate and 28-3/4" width is designed to provide smooth and safe passage to individuals with limited mobility when transitioning between offset floor conditions. PemKote non-slip coating application is highly recommended for added protection.
Assemblies accommodate 1⁄2" to 21⁄4" floor offsets in meeting the 1:12 slope requirements of the “Americans with Disabilities Act”.
- 28-3/4" wide x 1-1/2" offset
- 1-1/2" floor offset
- 7" top plate
- Number of components: 5
- Assemblies are supplied with #10 stainless steel wood screws
- Assemblies are provided NET length
- Mill finish (optional Pemkote skid resistant finish)
- Pemkote™ is highly recommended for all threshold assemblies, especially exterior conditions where moisture may be present. Pemkote Meets Requirements of: ASTM D 2047 & Federal Specifications P-F-430C.
Finishes
- R1.5OSA: A - Mill Finish Aluminum Aluminum
- R1.5OSAK: AK - PemKote Skid Resistant Surfacing Aluminum
This product is fabricated to order and is not returnable or refundable.
| Brand | |
|---|---|
| Finishes |
Mill Finish Aluminum, AK - Mill Finish Aluminum w/ PemKote |
| Length |
36", 60", 72", 84", 96", 48" |
| Width |
28-3/4" |
| Height |
1-1/2" |
| Fire-Rating |
Fire rated-UL10c |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
