Pemko

Pemko WINGEXT Wing Extender for Modular Ramp Threshold Assembly

$357.96
This item ships FREE! Usually Ships:  5-10 Business Days
  • Allows for adjustable wing width from 1-1/4" to 2-1/4"
  • Works in conjunction with WING16 for higher offset conditions
  • Sold as a pair (1ea. WINGEXTLH, 1ea. WINGEXTRH)

Available Options:

Clear

Product Overview

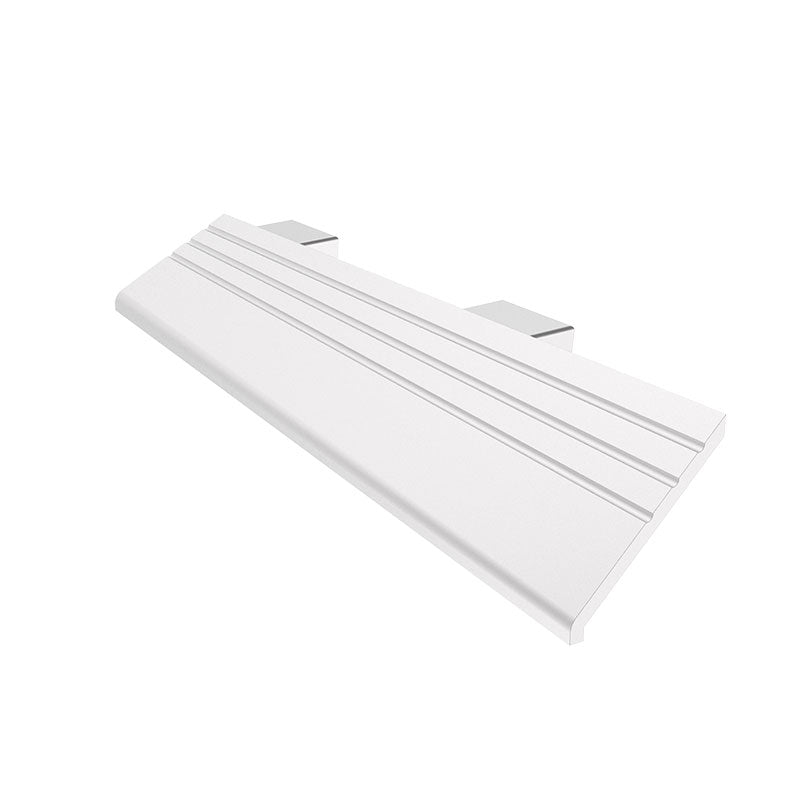

Pemko WINGEXT Series Wing Extender

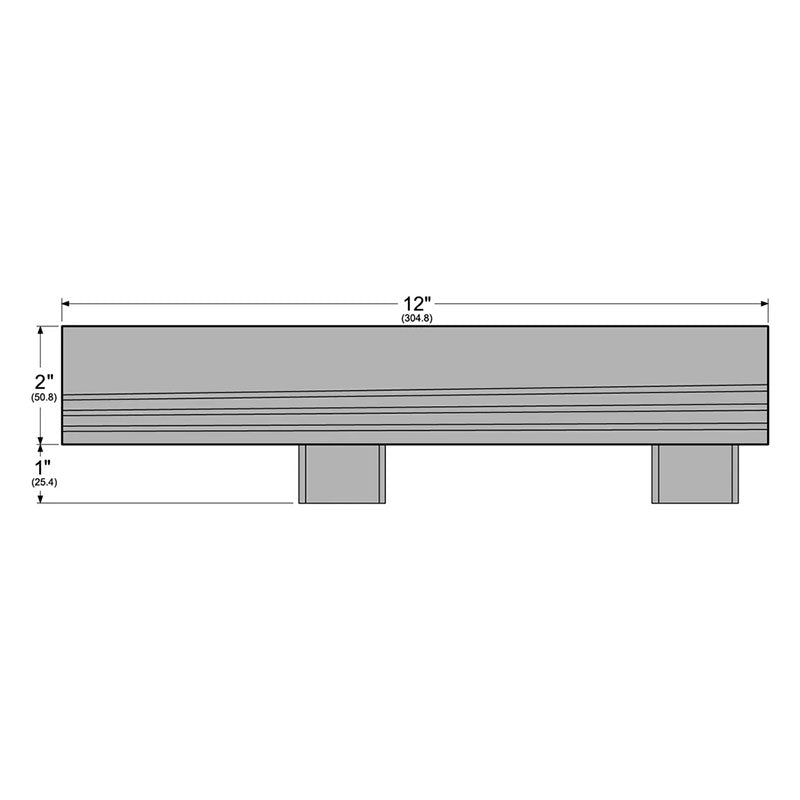

The WINGEXT Series Wing Extender is a 12" extension that allows for adjustable wing width from 1 1/4" to 2 1/4". These wing extenders are designed to fit into the end of a modular ramp threshold assembly and are secured with self-tapping machine screws. Please note that these wing extenders are not ADA compliant.

  • For modular ramp thresholds (thresholds, ramps, and other assemblies not included)
  • Sold as a pair: 1ea. left-hand (WINGEXTLH) +  1ea. right-hand (WINGEXTRH)
  • Wings fit into each end of modular ramp threshold assembly, and are fastened to ramp mid sections with self-tapping machine screws
  • Optional PemKote available
  • Cast aluminum
  • Match-drilled
  • Not ADA-compliant
  • Handed from the low end and are determined by which side of ramp it fits into
  • Included with assemblies to completely fill ends for 2" offset or 2-1/4" flush conditions
  • Works in conjunction with WING16 for higher offset conditions
  • Allows ramps larger than 13/16" up to 2 1/4" flush conditions to be closed off on edges
Brand

Finishes

AK - Mill Finish Aluminum w/ PemKote, A - Mill Finish Aluminum

ADA Compliance

Non ADA Compliant

Buy American Act Compliance

Meets Buy American Act - Made in USA
