Pemko RAMP6_ Ramp Component for Modular Ramp Assembly - 3-1/8" Wide x 1-1/4" Offset

$70.26

Usually Ships: 5-10 Business Days

Used with other components to reach 1-1/4" flush offset
Eliminates need to weld joints
Conforms to uneven surfaces

Available Options:

Clear

Finish
Length

Quantity:

Added to Cart

Pemko RAMP6_ Ramp Component for Modular Ramp Assembly - 3-1/8" Wide x 1-1/4" Offset

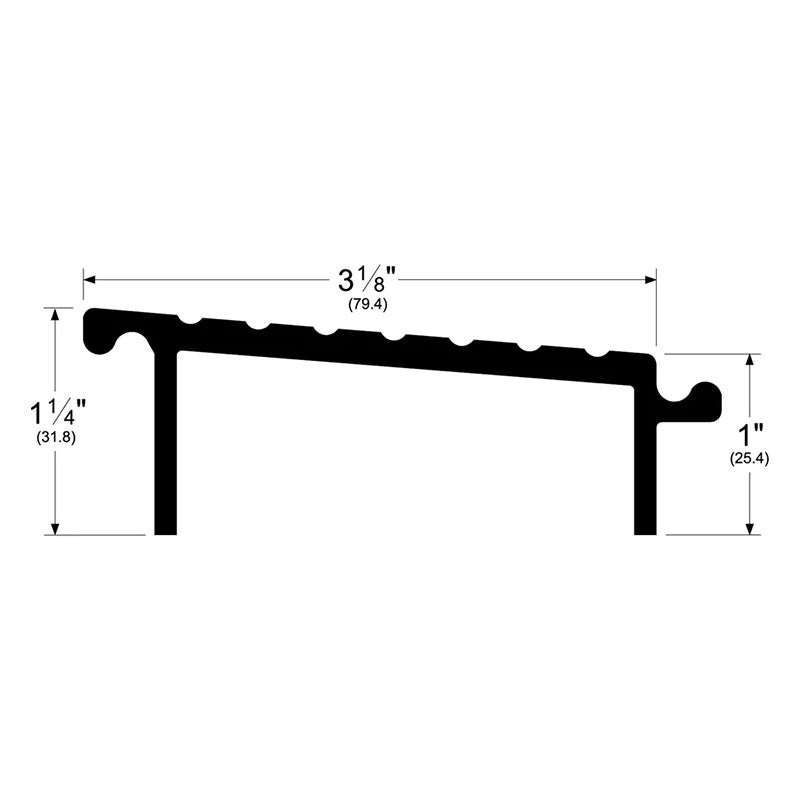

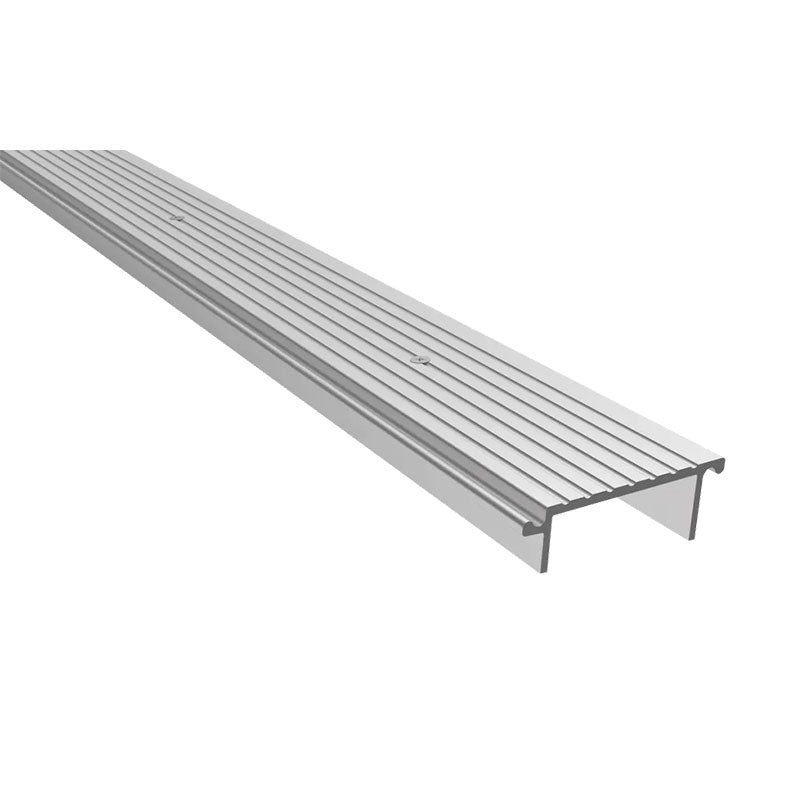

The RAMP6 is a 3-1/8" ramp component designed to reach up to a 1-1/4" offset. It is part of the modular ramp components series and is made with durable materials for long-lasting use. It's BHMA certified, ADA compliant, and UL 10C fire rated.

Used with other components to reach 1-1/4" flush offset
Fire-rated
PemKote highly recommended, especially exterior conditions where moisture may be present
Allows for creating configurations without cost of custom extrusions
Eliminates need to weld joints
Conforms to uneven surfaces

Finishes

A - Mill Finish Aluminum Aluminum
AK - PemKote Skid Resistant Surfacing Aluminum

This product is fabricated to order and is not returnable or refundable.

Brand	Pemko
Finishes	Mill Finish Aluminum, AK - Mill Finish Aluminum w/ PemKote
Length	36", 60", 72", 84", 96", 48"
Width	3-1/8"
Height	1-1/4"
Fire-Rating	Fire rated-UL10c
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Buy American Act Compliance	Meets Buy American Act - Made in USA

Pemko-RAMP6-Ramp-Component-Cut-Sheet

Pemko RAMP6_ Ramp Component for Modular Ramp Assembly - 3-1/8" Wide x 1-1/4" Offset

Pemko RAMP6_ Ramp Component for Modular Ramp Assembly - 3-1/8" Wide x 1-1/4" Offset

Product Overview

Pemko RAMP6_ Ramp Component for Modular Ramp Assembly - 3-1/8" Wide x 1-1/4" Offset

Specifications

Specification Sheets
