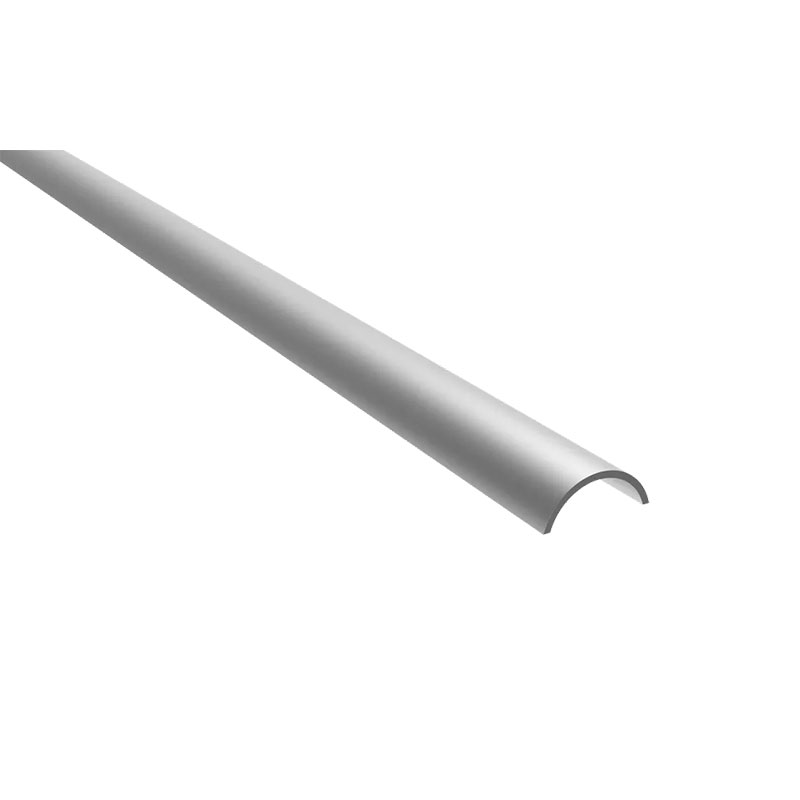

Pemko RAMP7_ Modular Ramp Component - 1-15/16" Wide x 3/4" High

$40.82

Usually Ships: 5-10 Business Days

Used to assemble a variable ramp according to specific requirements
Supplied undrilled
Accomodates offsets

Available Options:

Clear

Finish
Length

Quantity:

Added to Cart

Pemko RAMP7_ Modular Ramp Component - 1-15/16" Wide x 3/4" High

The RAMP7 is a modular ramp system that includes various components of different widths and heights. These components, such as top plates, bridge components, arch components, and riser components, are used to assemble a variable ramp according to specific requirements. It's BHMA certified, ADA compliant, and UL 10C fire rated.

For new construction, only ADA-compliant in certain applications
Ideal for use in cross-traffic corridors where a minimal projection may be required and a steeper slope may be allowed
Fire-rated
Miter returns not available
Fill and feather threshold ends; do not leave threshold ends open
Supplied undrilled
Allows for creating configurations without cost of custom extrusions
Accomodates offsets

Brand	Pemko
Finishes	Mill Finish Aluminum
Length	36", 84", 60", 48", 72", 96"

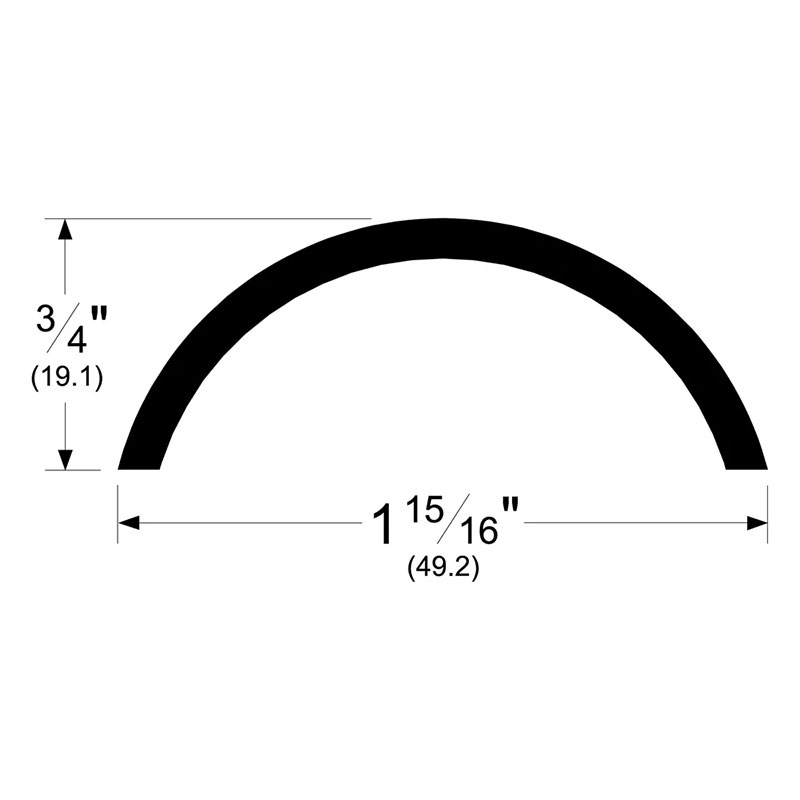

Width	1-15/16"
Height	3/4"
Fire-Rating	Fire rated-UL10c
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Buy American Act Compliance	Meets Buy American Act - Made in USA

Pemko-RAMP7-Ramp-Component-Cut-Sheet
