Product Overview

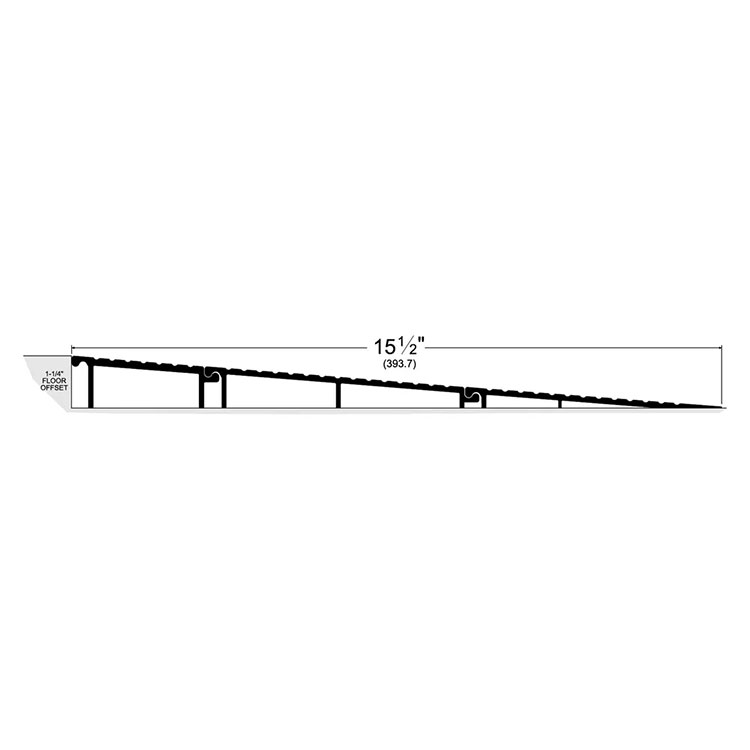

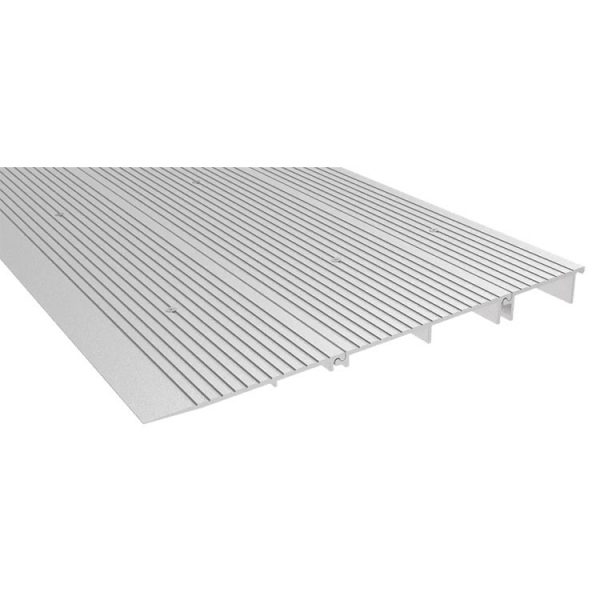

Pemko R1.25F_ 1-1/4" H x 15-1/2" W ADA Compliant Aluminum Interlocking Ramp
The R1.25F Flush Modular Ramp Assembly with 1-1/4" high offset is 15-1/2" wide and perfect for seamlessly transitioning between offset floor conditions. It provides a smooth and safe passage for individuals with limited mobility. PemKote non-slip coating application is highly recommended for added protection.
Assemblies accommodate 1⁄2" to 21⁄4" floor offsets in meeting the 1:12 slope requirements of the “Americans with Disabilities Act”.
- 15-1/2" wide x 1-1/4" offset
- Number of components: 3
- Assemblies are supplied with #10 stainless steel wood screws
- Assemblies are provided NET length
- Mill finish (optional Pemkote skid resistant finish)
- Pemkote™ is highly recommended for all threshold assemblies, especially exterior conditions where moisture may be present. Pemkote Meets Requirements of: ASTM D 2047 & Federal Specifications P-F-430C.
Finishes
- R1.25FA: A - Mill Finish Aluminum Aluminum
- R1.25FAK: AK - PemKote Skid Resistant Surfacing Aluminum
This product is fabricated to order and is not returnable or refundable.
| Brand | |
|---|---|
| Finishes |
AK - Mill Finish Aluminum w/ PemKote, Mill Finish Aluminum |
| Length |
36", 60", 72", 84", 96", 48" |
| Width |
15-1/2" |
| Height |
1-1/4" |
| Fire-Rating |
Fire rated-UL10c |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
