Schlage

Schlage PC53L RHO (Rhodes) Entrance Lever Lock, Less Cylinder

$312.66
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified Grade 1
  • ANSI Function F109 – Entrance
  • Less cylinder (sold separately)

Available Options:

Clear

Product Overview

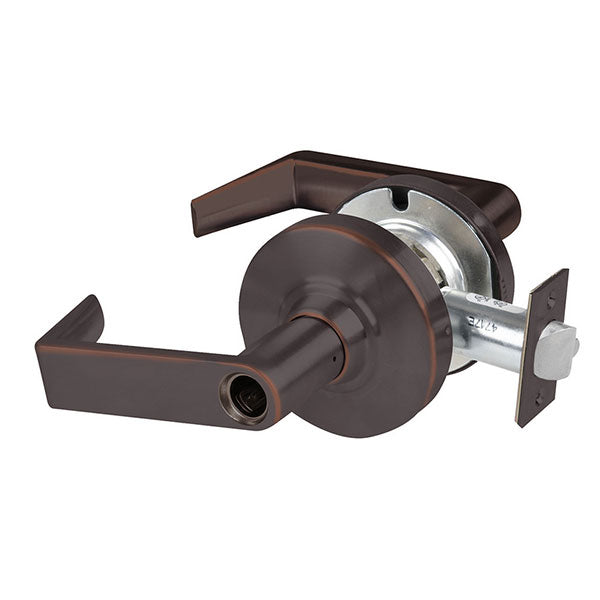

Schlage PC53L RHO Grade-1 Cylindrical Lever Lock, Entrance Function, Rhodes Lever, 2-3/4" Backset, ASA Strike, Less Cylinder

Purpose-built to serve the commercial real estate, retail, multifamily, and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point.

ANSI Function F109 – Lever with key cylinder outside; push/turn button in lever inside; deadlatch • In unlocked state latch is retracted by either lever • Outside lever is made inoperative by pushing button or pushing and turning button on inside lever; key outside does not lock • Pushed button unlocking: key outside or rotating inside lever retracts latch and releases button unlocking outside lever • Pushed/turned button unlocking: key outside or rotating inside lever retracts latch but does not unlock outside lever; rotate inside button to start position to allow button release and unlocking by key or by rotating inside lever • Inside lever always free for immediate egress

  • Cylinder not included (sold separately)
  • Certified to ANSI/BHMA Grade 1 operational and security standards
  • UL listed for 3-hour fire door
  • Chassis: Zinc and steel components zinc dichromate plated for corrosion resistance
  • Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified (self-adjustable)
  • Non-handed

codes

Brand

Finishes

613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze

Lock Function

Entry (Entrance)

Lever Design

RHO (Rhodes)

Cylinder Format

Less Cylinder

Backset

2-3/4"

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Usage

Heavy Duty

ANSI/BHMA Standard

All PC Series comply with A156.2-2022, Series 4000 Grade 1 cylindrical locks

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

CA Fire Code

All levers with a return to door of 1 ⁄2" (64 mm) or less comply

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

5 year limited mechanical warranty
