Schlage

Schlage PC53P RHO (Rhodes) Entrance Lever Lock

$361.80
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified Grade 1
  • ANSI Function F109 – Entrance
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

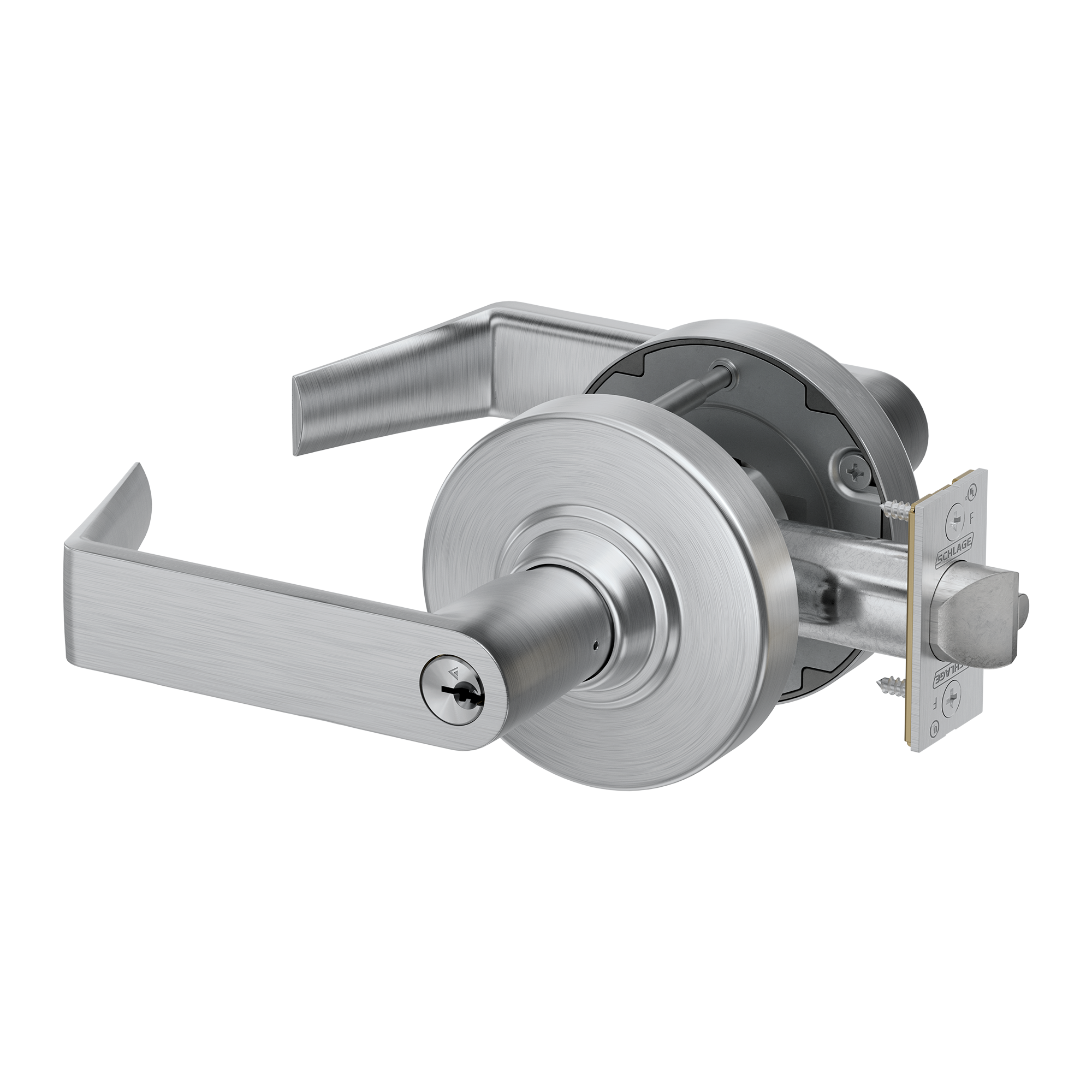

Schlage PC53P RHO Grade-1 Cylindrical Lever Lock, Entrance Function, Rhodes Lever, 2-3/4" Backset, ASA Strike

Purpose-built to serve the commercial real estate, retail, multifamily, and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point.

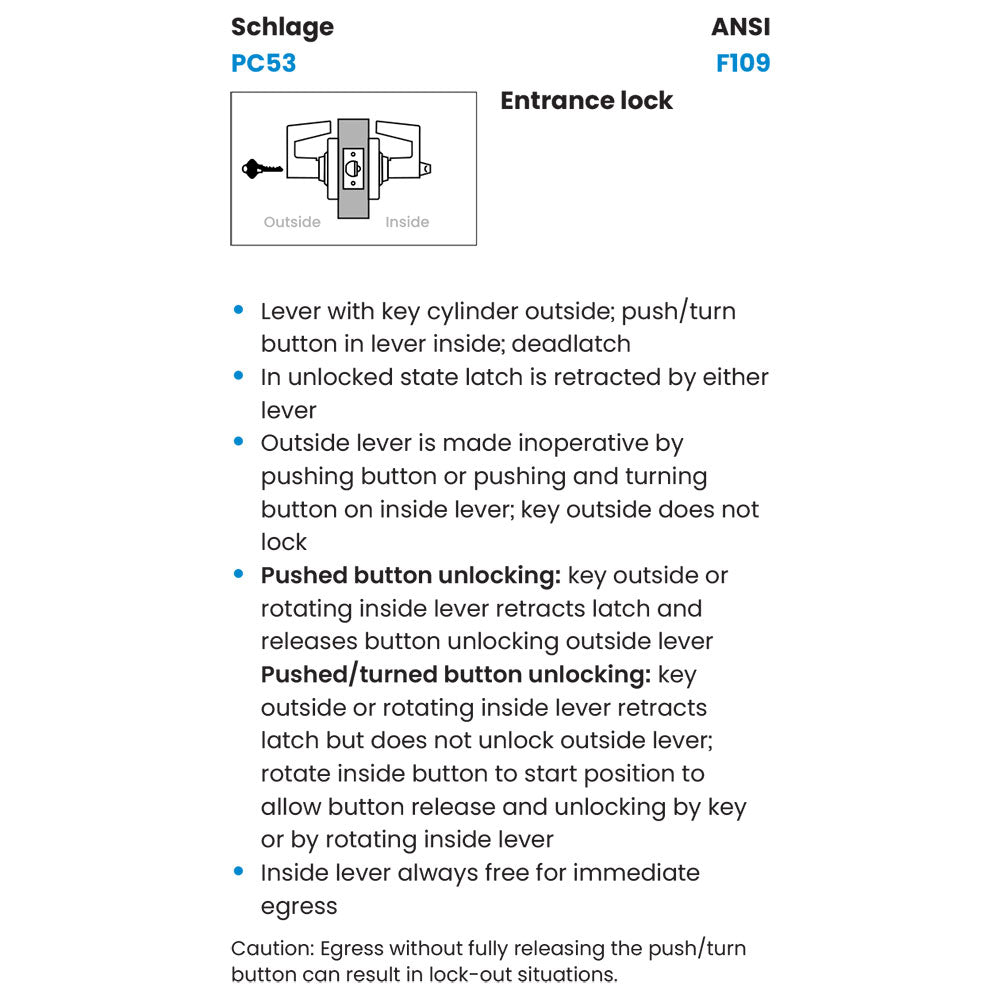

ANSI Function F109 – Lever with key cylinder outside; push/turn button in lever inside; deadlatch • In unlocked state latch is retracted by either lever • Outside lever is made inoperative by pushing button or pushing and turning button on inside lever; key outside does not lock • Pushed button unlocking: key outside or rotating inside lever retracts latch and releases button unlocking outside lever • Pushed/turned button unlocking: key outside or rotating inside lever retracts latch but does not unlock outside lever; rotate inside button to start position to allow button release and unlocking by key or by rotating inside lever • Inside lever always free for immediate egress

  • Certified to ANSI/BHMA Grade 1 operational and security standards
  • UL listed for 3-hour fire door
  • Chassis: Zinc and steel components zinc dichromate plated for corrosion resistance
  • Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified (self-adjustable)
  • Non-handed

codes

Brand

Finishes

613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze

Lock Function

Entry (Entrance)

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway, Schlage S123 Keyway

Lever Design

RHO (Rhodes)

Backset

2-3/4"

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Usage

Heavy Duty

ANSI/BHMA Standard

All PC Series comply with A156.2-2022, Series 4000 Grade 1 cylindrical locks

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

CA Fire Code

All levers with a return to door of 1 ⁄2" (64 mm) or less comply

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

5 year limited mechanical warranty
