Schlage

Schlage PC10 RHO (Rhodes) Passage Lever

$241.38
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified Grade 1
  • ADA compliant, 3-hour fire-rated
  • Both levers always unlocked and free

Available Options:

Clear

Product Overview

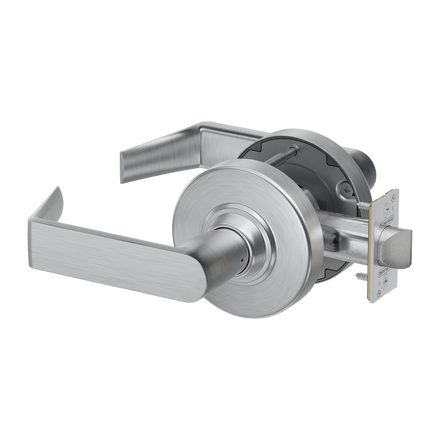

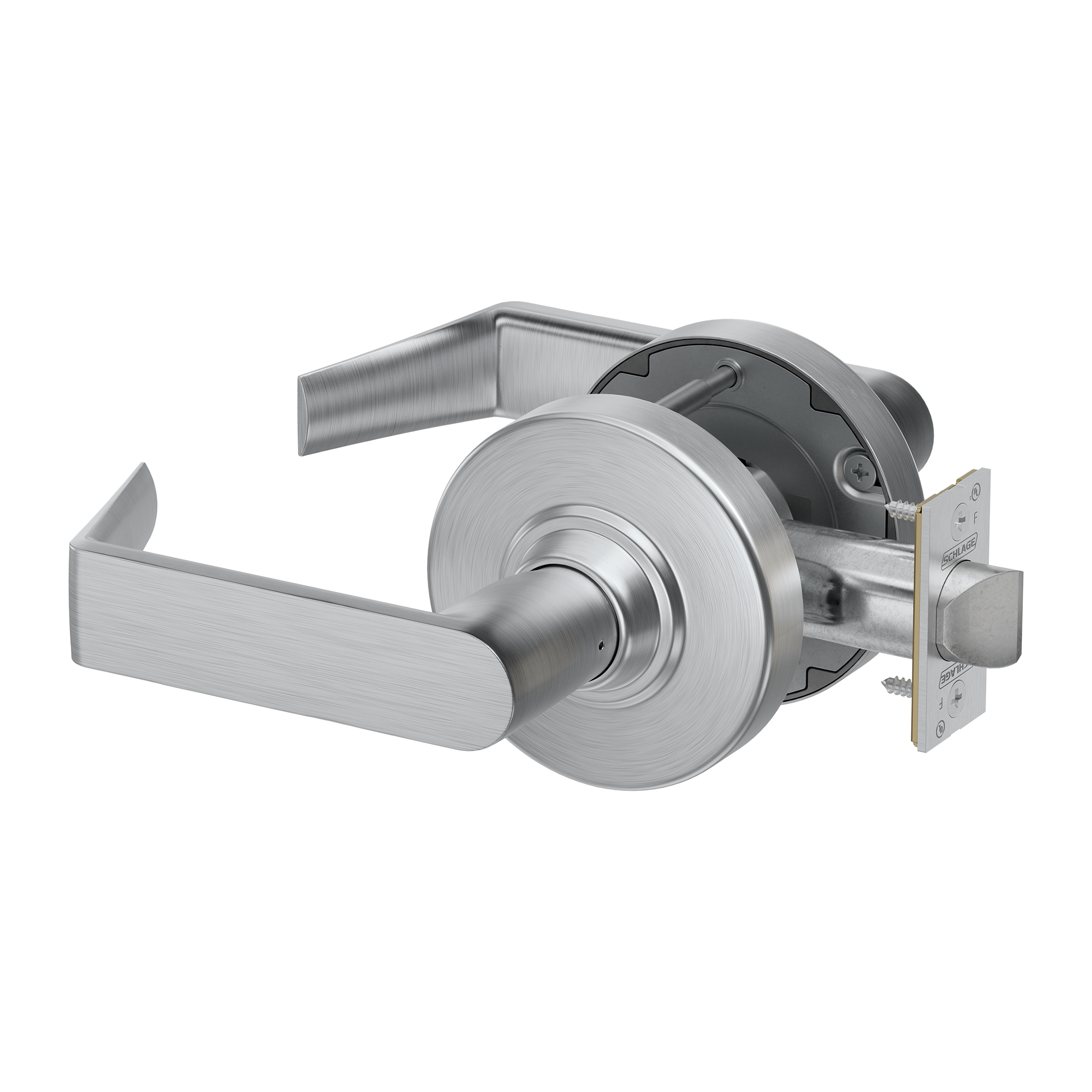

Schlage PC10 RHO Grade-1 Cylindrical Lever Lock, Passage Function, Rhodes Lever

Purpose-built to serve the commercial real estate, retail, multifamily, and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point.

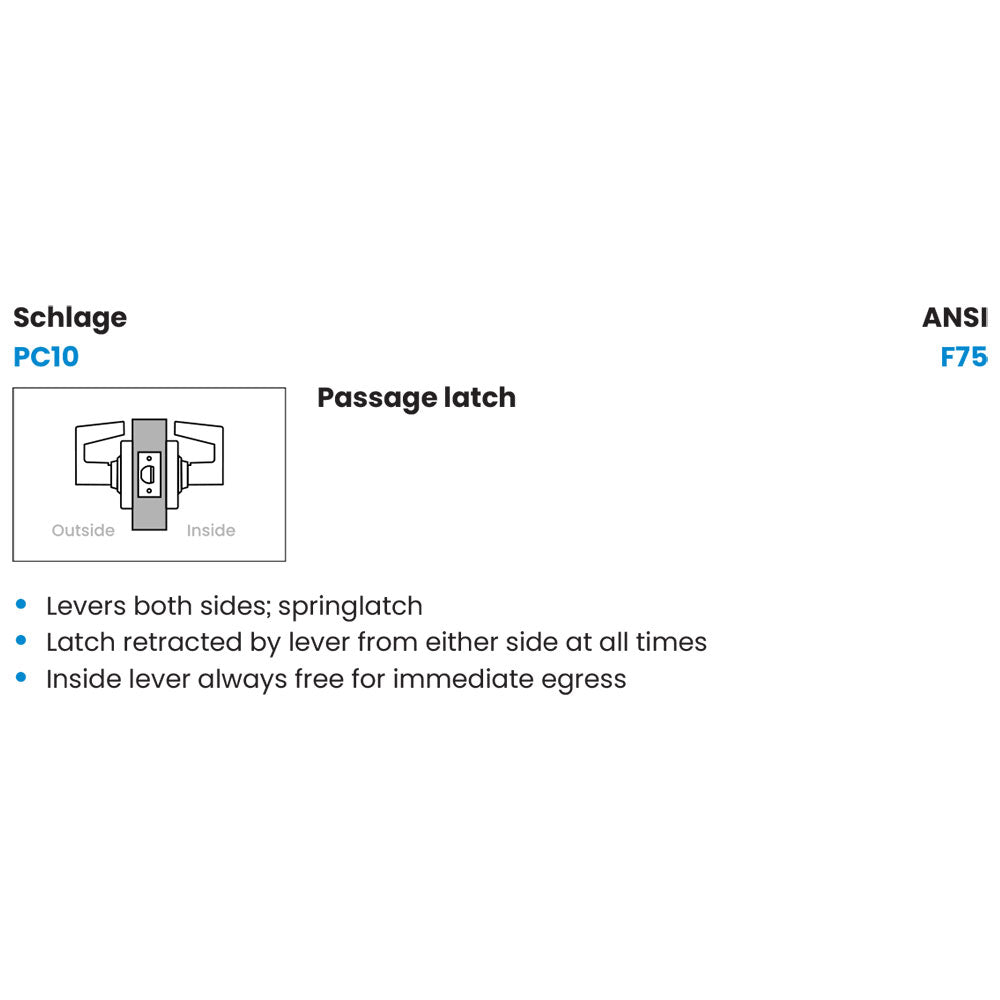

ANSI Function F75: Levers both sides; springlatch • Latch retracted by lever from either side at all times • Inside lever always free for immediate egress

  • Certified to ANSI/BHMA Grade 1 operational and security standards
  • UL listed for 3-hour fire door
  • Chassis: Zinc and steel components zinc dichromate plated for corrosion resistance
  • Accommodates 1-3/8" (35 mm) through 1-3/4" (44mm) doors without needing to be specified (self-adjustable)
  • Non-handed

codes

Brand

Finishes

626 Satin Chrome, 622 Matte Black, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel

Lock Function

Passage

Lever Design

RHO (Rhodes)

Backset

2-3/4"

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Usage

Heavy Duty

ANSI/BHMA Standard

All PC Series comply with A156.2-2022, Series 4000 Grade 1 cylindrical locks

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

CA Fire Code

All levers with a return to door of 1 ⁄2" (64 mm) or less comply

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

5 year limited mechanical warranty
