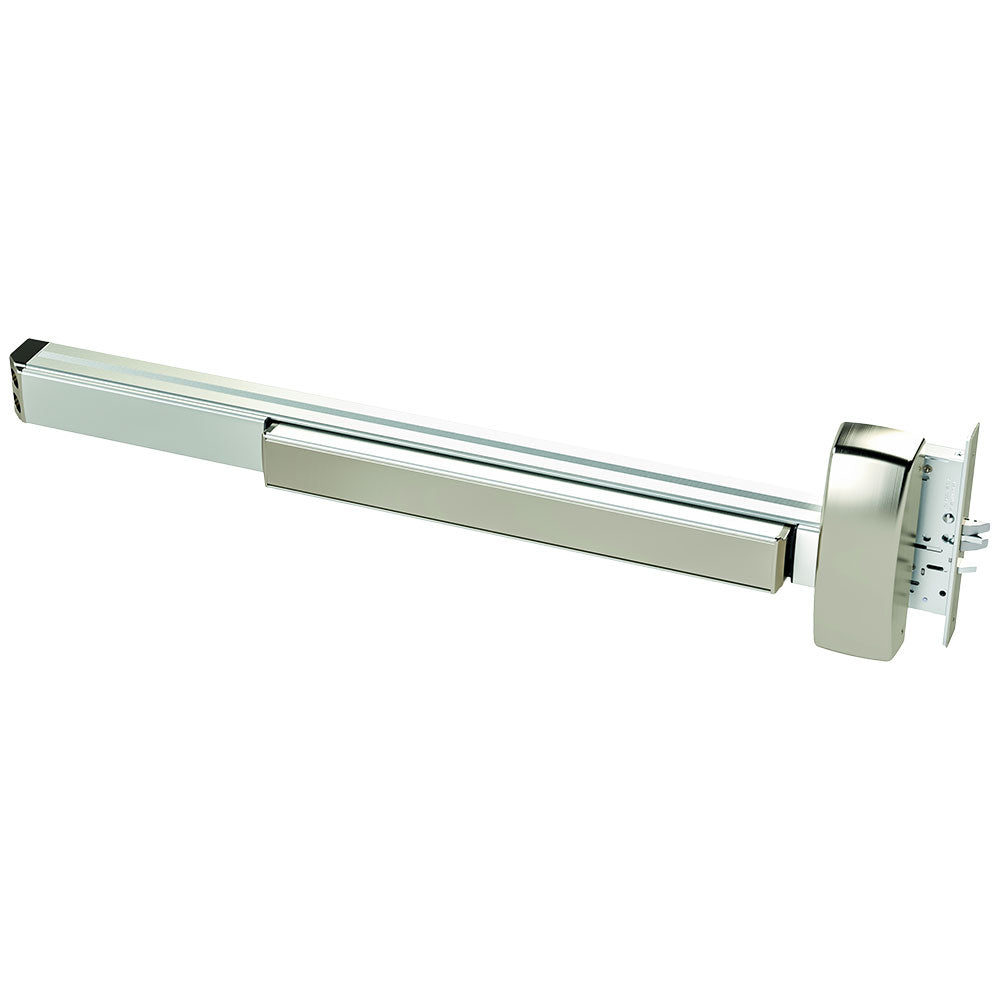

PDQ 6400M Mortise Exit Device

$676.67
Usually Ships:  3-5 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Reversible handing for easy installation
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

PDQ 6300M Series Heavy-Duty Grade-1 Wide Stile Mortise Exit Device

Designed for wide stile, single door applications, upgrade your security with PDQ’s 6300M mortise exit device. Featuring a strong 3/4" throw latch bolt, this exit device is perfect for retrofits or new installations. You can pair this mortise exit device with any surface vertical rod, concealed vertical rod, flush bolts, or an open back strike to complete your security needs.

  • Exit Only (PDQ Exit Device Trim Sold Separately)
  • The cast chassis support makes sure this exit device has increased strength
  • The cush spring allows the push bar to quietly operate in both directions
  • It’s compression spring is designed to guarantee a reliable push bar return
  • For pry resistance, heavy-duty end caps are added to the exit device

Certifications

  • UL 305
  • UL 10C and CAN/ULC-S104 listed 3-hour fire door, for single doors up to 4’ x 10’, double doors with mullion up to 8' x 8' (single egress pair)
  • Certified to ANSI/BHMA A156.3 Grade 1
  • FL #40297 +60/-65 psf 4080 16ga Single
  • FL #40297 +50/-50 psf 4080 18ga Single
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • Meets requirements of the BAA as a COTS product manufactured in the United States
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, 622 Flat Black, 625 Bright Chrome, 626 Satin Chrome, 630 Satin Stainless Steel, 630F Full Satin Stainless Steel

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.3 Grade 1

Usage

Heavy Duty

Stile Type

Wide (Standard)

Minimum Stile Width

5"

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

4-7/8" ASA Strike

Trim

None - Exit Only (Outside Trim Sold Separately)

Handing

Completely Reversible

Warranty

10 Year Limited

Buy American Act Compliance

Meets BAA - Buy American Act
