PDQ

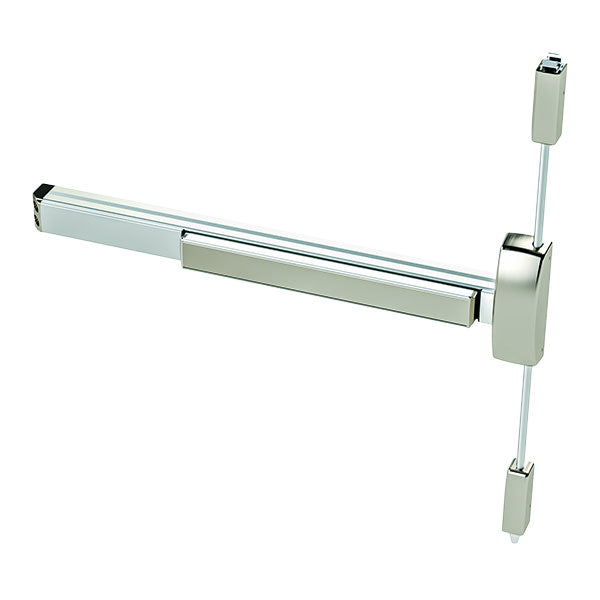

PDQ 6300V Surface Vertical Rod Exit Device

$641.25
This item ships FREE! Usually Ships:  3-5 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Non-handed for easy installation
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

PDQ 6300V Series Heavy-Duty Grade-1 Surface Vertical Rod Exit Device, 7ft Door Height

Wide Stile SVR exit device with 3/4” toggle latch top, and 5/8” travel drop bolt on the bottom. Use for wide stile double door applications.

  • Exit Only (PDQ Exit Device Trim Sold Separately)
  • Cast chassis support for increased strength
  • Cush spring quiets in both directions
  • Compression spring for touch bar return
  • Heavy-duty flush end cap for pry resistance

Certifications

  • UL 305
  • UL 10C and CAN/ULC-S104 listed 3-hour fire door, for double doors up to 8' x 8' (LBR), 8' x 10' (single or double egress pair)
  • Certified to ANSI/BHMA A156.3 Grade 1
  • FL #40297 +50/-50 psf 8080 18ga Pair
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • Meets requirements of the BAA as a COTS product manufactured in the United States
Brand

Finishes

622 Matte Black, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel

Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)

Device Type

Surface Rod Device

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.3 Grade 1

Usage

Heavy Duty

Stile Type

Wide (Standard)

Minimum Stile Width

3-1/2"

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latch

Top - Stainless Steel 3/4” toggle • Bottom - 5/8” Travel Drop Bolt

Strike

Cast top strike, plate bottom strike

Trim

None - Exit Only (Outside Trim Sold Separately)

Handing

Completely Reversible

Warranty

10 Year Limited

Buy American Act Compliance

Meets BAA - Buy American Act
