Product Overview
PDQ 6300R Series Heavy-Duty Grade-1 Rim Exit Device
PDQ’s 6300R, rim exit device, is an excellent solution for safe and secure entering and exiting of a building. PDQ’s 6300R wide stile exit device is engineered with a strong 3/4" pullman latch.
Whether it’s installed in educational institutions, healthcare facilities, or office complexes, the 6300R can offer a piece of mind for its dependability.
6300R/RF - Wide Stile Rim exit device with 3/4” pullman latch. Use for wide stile single door applications or for double door applications with a mullion.
- Exit Only (PDQ Exit Device Trim Sold Separately)
- Cast chassis support for increased strength
- Cush spring quiets in both directions
- Compression spring for touch bar return
- Heavy-duty flush end cap for pry resistance
- Roller strike comes standard
Certifications
- UL 305
- UL 10C and CAN/ULC-S104 listed 3-hour fire door, for single doors up to 4’ x 10’, double doors with mullion up to 8' x 8' (single egress pair)
- Certified to ANSI/BHMA A156.3 Grade 1
- FL #40297 +60/-65 psf 4080 16ga Single
- FL #40297 +50/-50 psf 4080 18ga Single
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
- Meets requirements of the BAA as a COTS product manufactured in the United States
| Brand | |
|---|---|
| Finishes |

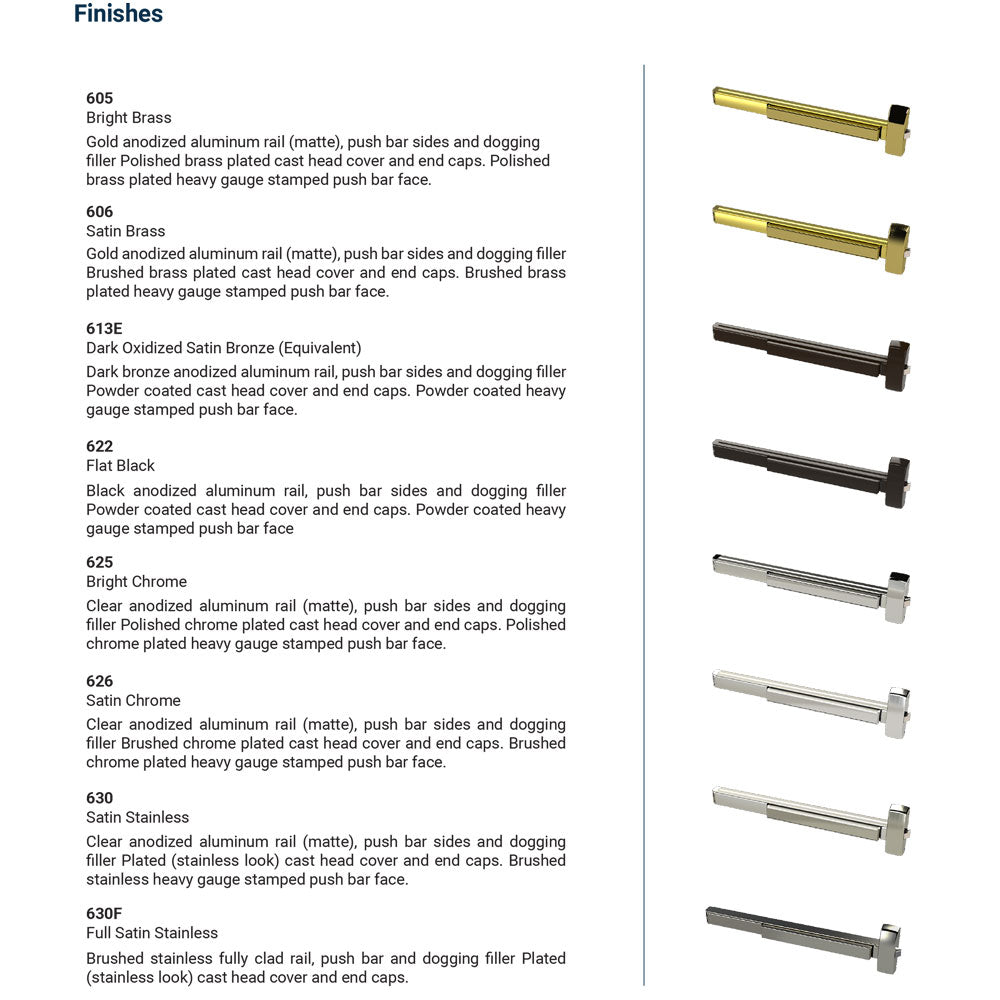

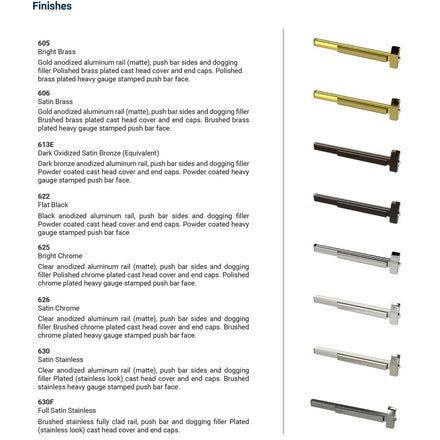

605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, 622 Flat Black, 625 Bright Chrome, 626 Satin Chrome, 630 Satin Stainless Steel, 630F Full Satin Stainless Steel |
| ANSI/BHMA Standard |
Certified to ANSI/BHMA A156.3 Grade 1 |
| Usage |
Heavy Duty |
| Stile Type |
Wide (Standard) |
| Minimum Stile Width |
3-1/2" |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Strike |
Roller Strike |
| Trim |
None - Exit Only (Outside Trim Sold Separately) |
| Handing |
Completely Reversible |
| Warranty |
10 Year Limited |
| Buy American Act Compliance |
Meets BAA - Buy American Act |
