Design Hardware Z-82-F Entry/Office Lever Lock

$117.58

Usually Ships: 3-5 Business Days

Extra heavy-duty, meets ANSI Grade 1 standards
ANSI function: F82, turn/push-button locking
ADA compliant, 3-hour fire-rated

Quantity:

Added to Cart

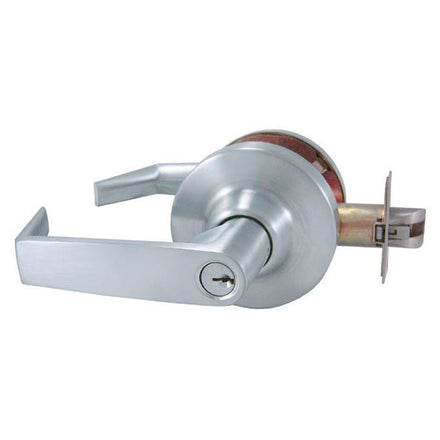

Design Hardware Z-82-F Lever Lockset, Entry/Office Function, Extra Heavy-Duty Grade-1, (F) Flat Lever Design, US26D Satin Chrome Finish

Z-82 Entry / Office - ANSI Function F82 - Turn/ Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Deadlocking latchbolt operated by inside lever at all times.

Tested to withstand over 2 million cycles
Best for high to very high traffic
Designed for fast and easy installation
Clutching levers standard for Vandal resistance on locking functions

Specifications

Lock Chassis: Steel, Zinc dichromated for Corrosion Resistance
Trim: 5″ Solid zinc diecast levers, 3 1/2″ wrought brass roses
Lever Return: Independent lever return springs to prevent lever sag
Standard Latch: 2-3/4" backset with 1-1/8" x 2-1/4" latchface – Stainless steel latchbolt w/ 3/4" projection
Handing: Non-Handed – Completely reversible

Brand	Design Hardware
Lock Function	Entry (Entrance)
Finishes	US26D (626) Satin Chrome
Usage	Heavy Duty
ANSI Grade	Meets ANSI - A156.2, Series 4000, Grade 1 Standards
Fire-Rating	UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Backset	2-3/4"
Latch	Stainless steel latch bolt with 3/4” projection, 1-1/8" x 2-1/4” latchface
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
Handing	Non Handed – Completely Reversible
Fasteners	Combination screws for wood or metal doors & frames
