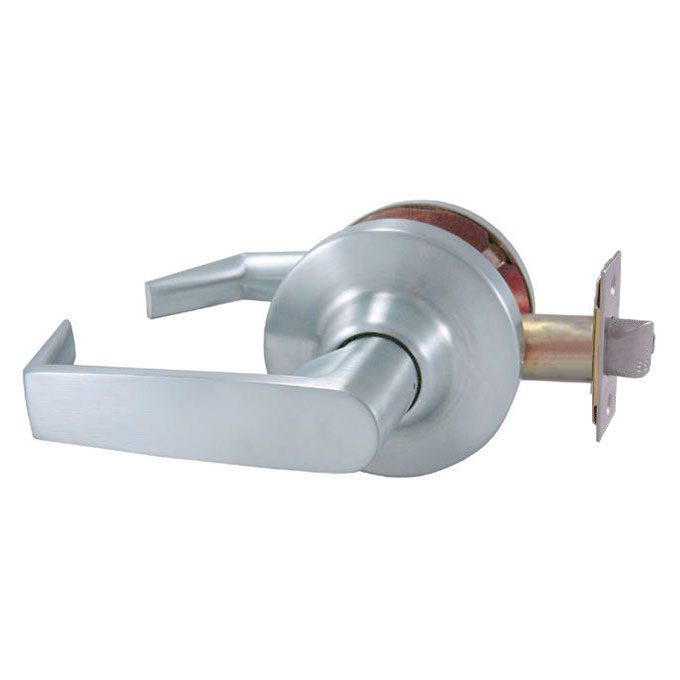

Design Hardware Z-75-F Passage Lever Set

$99.92
Usually Ships:  3-5 Business Days
  • Extra heavy-duty, meets ANSI Grade 1 standards
  • ANSI function: F75, both levers always open
  • ADA compliant, 3-hour fire-rated

Product Overview

Design Hardware Z-75-F Lever Lockset, Passage Function, Extra Heavy-Duty Grade-1, (F) Flat Lever Design, US26D Satin Chrome Finish

Z-75 Passage - ANSI Function F75 - Latchbolt operated by lever from either side at all times.

  • Tested to withstand over 2 million cycles
  • Best for high to very high traffic
  • Designed for fast and easy installation

Specifications

  • Lock Chassis: Steel, Zinc dichromated for Corrosion Resistance
  • Trim: 5″ Solid zinc diecast levers, 3 1/2″ wrought brass roses
  • Lever Return: Independent lever return springs to prevent lever sag
  • Standard Latch: 2-3/4" backset with 1-1/8" x 2-1/4" latchface – Stainless steel latchbolt w/ 3/4" projection
  • Handing: Non-Handed – Completely reversible
Brand

Lock Function

Passage

Finishes

US26D (626) Satin Chrome

Usage

Heavy Duty

ANSI Grade

Meets ANSI - A156.2, Series 4000, Grade 1 Standards

Fire-Rating

UL Listed for “A” Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Backset

2-3/4"

Latch

Stainless steel latch bolt with 3/4” projection, 1-1/8" x 2-1/4” latchface

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non Handed – Completely Reversible

Fasteners

Combination screws for wood or metal doors & frames
