Product Overview

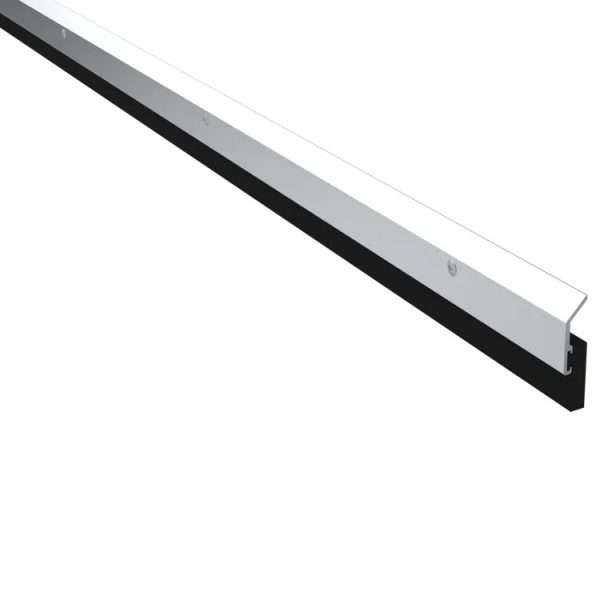

Pemko 368_N Door Bottom Sweep with Neoprene Insert

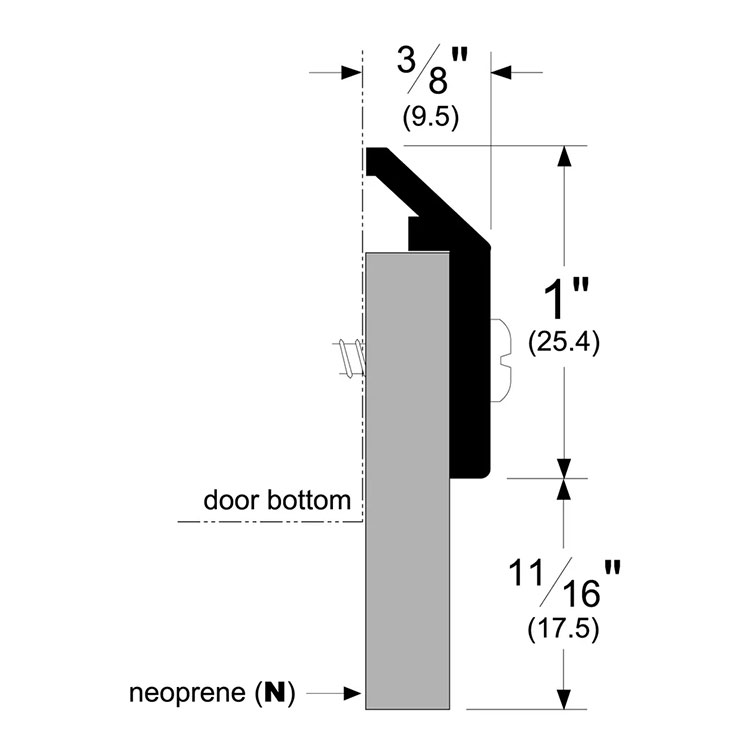

This 368_N Series Surface Plate Door Sweep features a thick Neoprene seal, measuring .688" to effectively seal gaps. It has a 1" sleek aluminum casing and is fire, smoke, and air infiltration rated. This durable and high-performing door bottom is suitable for residential, commercial, and office use.
- Slotted holes for easy adjustment
- Recommended compression of gasket is 1/16"
- Fitted with a neoprene synthetic rubber extrusion
- Surface applied
- Seal up to a 5/8" the gap between the door and threshold or to the floor surface
- Not recommended in situations that involved significant gasoline or other fuel oil, kerosene, propance, or mineral oil
- Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes
- Outstanding resistance to abrasion, hydraulic fluids, alkalis, heat, ozone, weather
- Resistant to polar substances and steam
Finishes
- 368CN: C - Clear Anodized Aluminum
- 368BSPN: BSP - Black Suede Powder Coat Aluminum
Certifications
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ASTM E-283-04 (2012)
- ASTM E 90-2009
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
| Brand | |
|---|---|
| Finishes |
BSP Black Suede Powder Coat, C – Clear Anodized Aluminum |
| Length |
36", 48" |
| Fire-Rating |
Fire Rated - UL10C - Positive Pressure |
