Product Overview
Pemko 90100_NB Door Bottom Sweep
The 90100_NB Nylon Brush Gasket with 90 degree aluminum retainer and 1" brush is perfect for sealing the gap beneath a door, preventing dust, drafts, air, wind, insects, smoke, and water infiltration. Designed for hollow metal doors.
- For Hollow Metal Doors with Inverted Bottom Channel
- Slotted holes for easy adjustment
- Design permits use as a concealed seal for many applications
- This brush gasketing is supplied with a Nylon Brush ("NB") insert

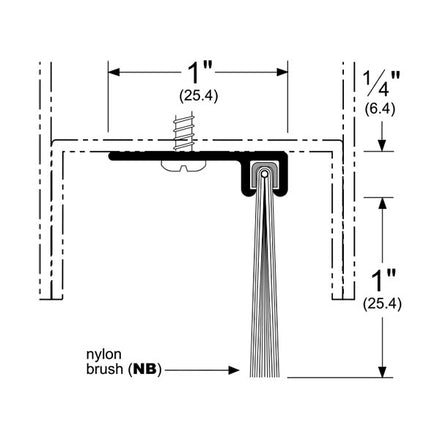

- WIDTH: 1” (25.4 mm)
- PROFILE HEIGHT: 1/4” (6.4 mm)
- HEIGHT INCLUDING BRUSH: 1-1/4” (31.7 mm)
Finishes
- 90100CNB: C - Clear Anodized Aluminum with Gray Nylon Brush insert
- 90100BSPNB: BSP - Black Suede Powder Coat Aluminum with Black Nylon Brush insert
- 90100DNB: D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert
Ratings
- BHMA Certified
- Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand | |
|---|---|
| Length |
36", 48" |
| Finishes |
C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum |
| Fire-Rating |
Fire Rated - UL10C - Positive Pressure |
