Product Overview

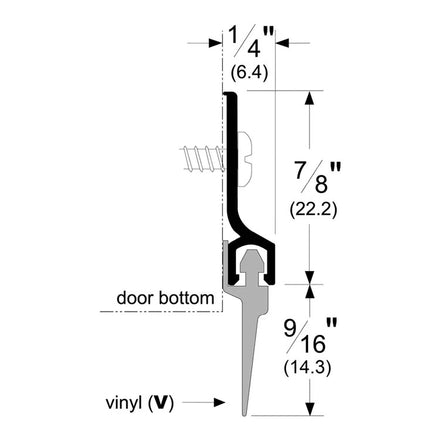

Pemko 308_V Surface Plate Door Bottom Sweep with 9/16” Eco-V Insert
The 308 Series Surface Plate Rubber Door Sweep is designed to insulate and prevent the infiltration of moisture, fire, smoke, sound, and light. It can seal gaps up to .563" between the door and threshold or the floor surface. The casing is surface mounted and fitted with a fire-rated Eco-V seal.
- Slotted holes for easy adjustment
- Recommended compression of gasket is 1/16"
- Seal up to a 9/16" the gap between the door and threshold or to the floor surface
- Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes
Finishes

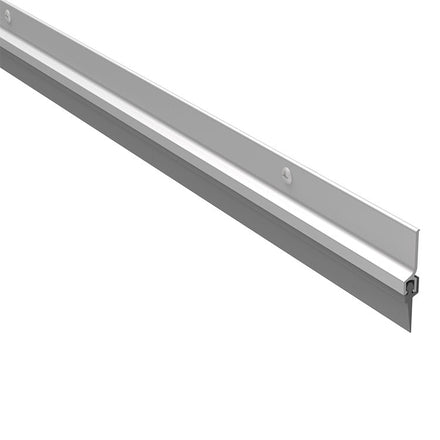

- 308AV: A - Mill Finish Aluminum with Eco-V insert
- 308BSPV: BSP - Black Suede Powder Coat with Eco-V insert
- 308DV: D - Dark Bronze Anodized Aluminum with Eco-V insert
Ratings
- BHMA Certified
- Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand | |
|---|---|
| Finishes |
BSP Black Suede Powder Coat, D – Dark Bronze Anodized Aluminum, A - Mill Finish Aluminum |
| Length |
36", 48" |
| Fire-Rating |
Fire Rated - UL10C - Positive Pressure |
