Product Overview
Pemko 29326_NB (DB) Brush Seal/180 Degree Concealed Fastener Retainer
The 29326_NB Door Bottom Sweep features a concealed fastener design, a 180 degree retainer, and a 5/8" brush seal. It effectively blocks dust, light, fire, smoke, and insects. The aluminum casing with a snap-on cover adds durability and convenience.

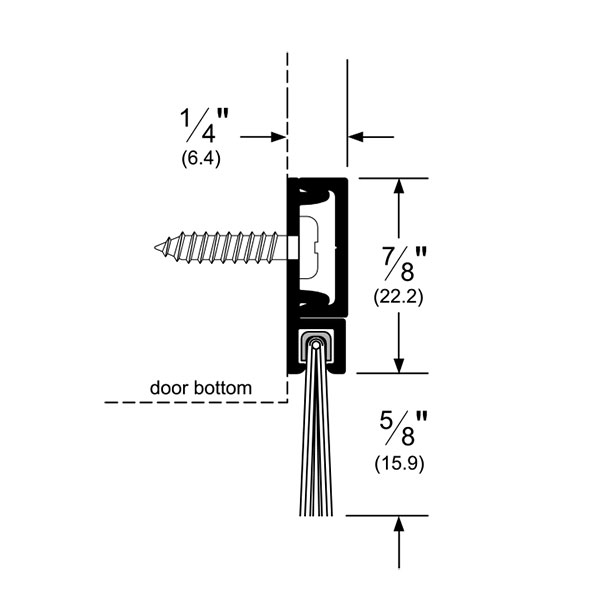

- Width: 1/4” (6.4 mm)
- Profile Height: 7/8” (22.2 mm)
- Height Including Brush: 1-1/2” (38.1 mm)
- All brush seals reduce the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes
Finishes
- 29326CNB: C - Clear Anodized Aluminum with Gray Nylon Brush insert
- 29326BSPNB: BSP - Black Suede Powder Coat Aluminum with Black Nylon Brush insert
- 29326DNB: D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert
Ratings
- BHMA Certified
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand | |
|---|---|
| Finishes |
C – Clear Anodized Aluminum, D - Dark Bronze Anodized Aluminum |
| Length |
36", 48" |
| Fire-Rating |
Fire Rated – UL10C – Positive Pressure |
