Product Overview
Pemko 18061_NB Brush Seal/180 Degree Aluminum Retainer

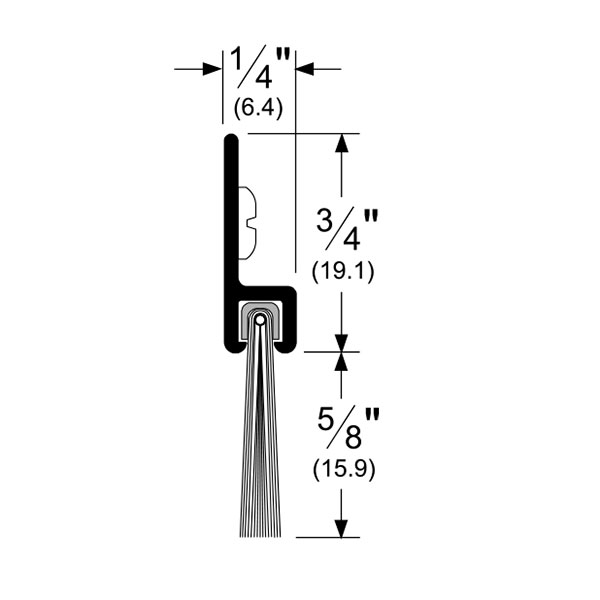

The 18061_NB Door Sweep features a densely compressed nylon brush seal to effectively seal gaps under doors. The brush is flexible and conforms to surface irregularities. It is available in various anodized finishes and can be cut to size. The casing measures 3/4" in height, while the brush portion has a height of 5/8".
This brush gasketing is supplied with a Nylon Brush ("NB") insert.
- WIDTH: 1/4” (6.4 mm)
- PROFILE HEIGHT: 3/4” (19.1 mm)
- INSERT HEIGHT: 5/8" (15.9 mm)
- HEIGHT INCLUDING BRUSH: 1-1/8” (35 mm)
Finishes
- 18061CNB: C - Clear Anodized Aluminum with Gray Nylon Brush insert
- 18061BSPNB: BSP - Black Suede Powder Coat Aluminum with Black Nylon Brush insert
- 18061DNB: D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert
Ratings
- BHMA Certified
- Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
| Brand | |
|---|---|
| Finishes |
BSP Black Suede Powder Coat, C – Clear Anodized Aluminum, D - Dark Bronze Anodized Aluminum |
| Length |
36", 48" |
| Fire-Rating |
Fire Rated – UL10C – Positive Pressure |
