Product Overview

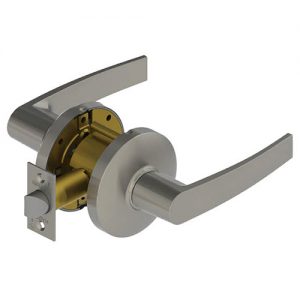

Hager 3510 Passage Lever, AUG August Lever Design
Hager 3500 Series Grade 2 lock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. It is an economical alternative to Grade 1 when Grade 1 is not required.
Hager 3510 Passage Function (ANSI F75) - Latchbolt operated by lever from either side at all times.
- Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
- No exposed mounting screws
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome |
| Lever Design |
AUG (August) |
| Lock Function |
Passage |
| ANSI Grade |
Meets BHMA ANSI A156.2, Series 4000, Grade 2 |
| Usage |
Medium Duty |
| Backset |
2-3/4" |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire-Rating |
UL/cUL listed up to 3 Hours |
| Handing |
Non-Handed |
| Latch |
1/2" throw - 1-1/8" x 2-1/4" face |
| Door Thickness |
1-3/8" to 1-3/4" |
| Warranty |
Limited Lifetime Warranty |
