Hager 3540 AUG Privacy Lever Lock

$124.83
Usually Ships:  3-5 Business Days
  • BHMA/ANSI A156.2 Grade 2 certified
  • ANSI function F76 - privacy
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear
Added to Cart

Product Overview

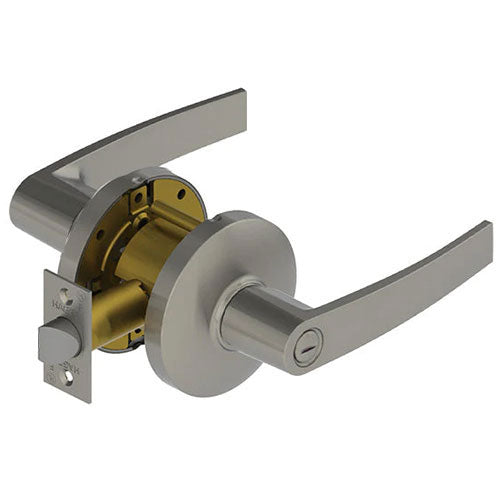

Hager 3540 Privacy Lever Lock, AUG August Lever Design

Hager 3500 Series Grade 2 lock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. It is an economical alternative to Grade 1 when Grade 1 is not required.

Hager 3540 Privacy Function (ANSI F76A) – Latchbolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside, operating inside lever or closing door.

  • Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
  • No exposed mounting screws

codes

Brand

Finishes

US26D (626) Satin Chrome

Lever Design

AUG (August)

Lock Function

Privacy

ANSI Grade

Meets BHMA ANSI A156.2, Series 4000, Grade 2

Usage

Medium Duty

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours

Handing

Non-Handed

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Door Thickness

1-3/8" to 1-3/4"

Warranty

Limited Lifetime Warranty
