Hager 3570 AUG Classroom Lever Lock

$138.50

Usually Ships: 3-5 Business Days

BHMA/ANSI A156.2 Grade 2
ANSI Function F84 - Classroom
ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Finish

Quantity:

Added to Cart

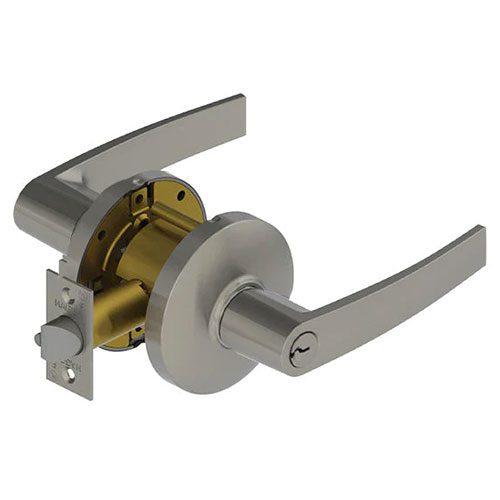

Hager 3570 Classroom Lever Lock, AUG August Lever Design

Hager 3500 Series Grade 2 lock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. It is an economical alternative to Grade 1 when Grade 1 is not required.

Hager 3570 Classroom Function (ANSI F84) - Deadlocking latchbolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latchbolt is operated by inside lever.

Standard door prep - 2-1/8" diameter (cross bore), latch hole - 1" diameter (edge bore)
No exposed mounting screws

codes

Brand	Hager
Finishes	US26D (626) Satin Chrome
Lock Function	Classroom
Lever Design	AUG (August)
ANSI Grade	Meets BHMA ANSI A156.2, Series 4000, Grade 2
Usage	Medium Duty
Cylinder & Keys	6-pin conventional, keyed different, with 2 keys
Keyway	Schlage C Keyway
Latch	1/2” throw, deadlocking - 1-1/8" x 2-1/4" face
Backset	2-3/4"
Strike	4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
ADA Compliance	Meets ADA requirements - A117.1 Accessibility Code
Handing	Non-Handed
Fire-Rating	UL/cUL listed up to 3 Hours
Door Thickness	1-3/8" to 1-3/4"
Warranty	Limited Lifetime Warranty
