Pemko PEMKOSTCSET-3A Acoustical Door Seal Set

$93.70

Usually Ships: 5-10 Business Days

Complete STC solution in a kit
Includes ACP112BL, 3692APK773BL, S773BL, and S44BL
Sound tested, fire-rated, and smoke tested

Available Options:

Clear

Size

Quantity:

Added to Cart

Pemko PEMKOSTCSET-3A Acoustical Seal Set for Frames and Doors

This kit combines our S773 and S44 adhesive-back style gasket with our 3692APK773BL acoustic door bottom to provide optimal performance and easy installation while gaskets remain unseen when the door is in the closed position.

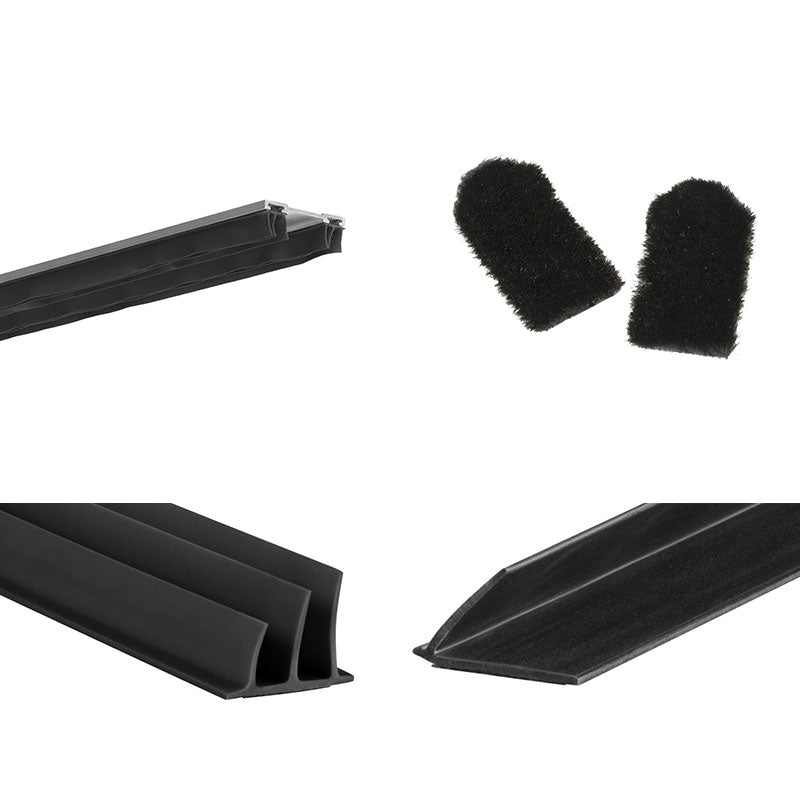

Kit Includes:

ACP112BL: Black Pile

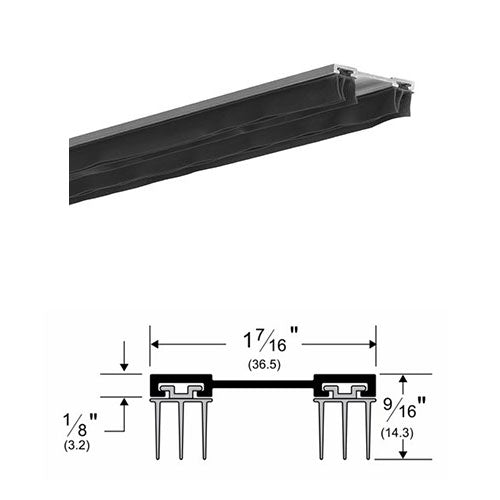

3692APK773BL : A - Mill Finish Aluminum with Black PemkoPrene insert

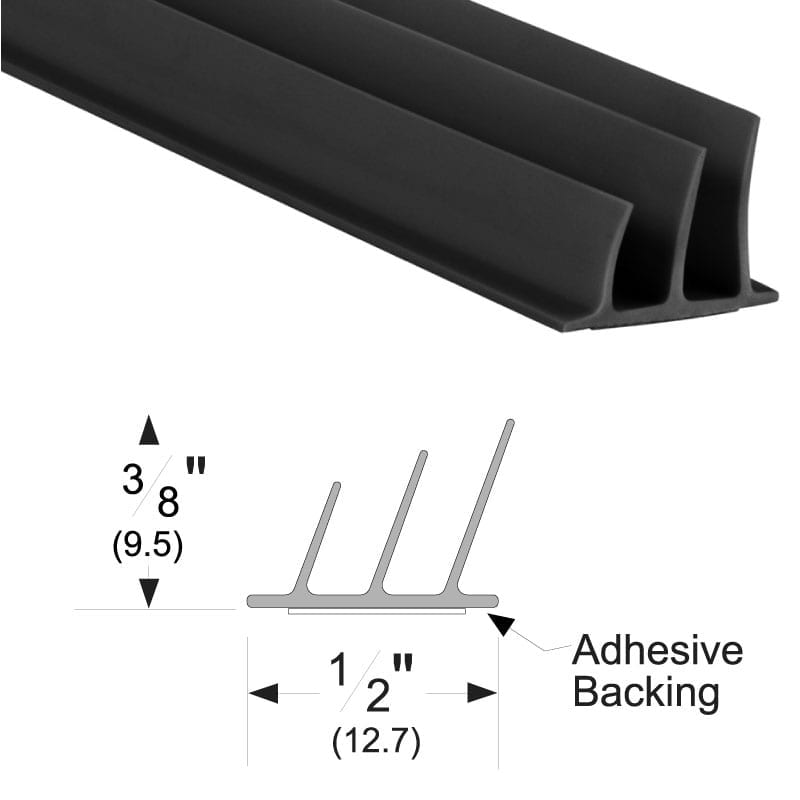

S773BL: BL - Black Silicone (Single Row)

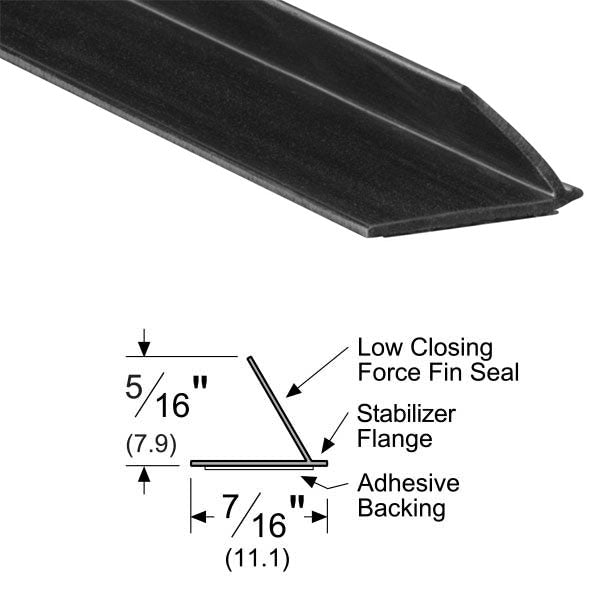

S44BL: BL - Black Silicone (Single Row)

This kit offers the following demonstrated performance

Doors with inoperable STC Ratings of:	Decible (dB) drop from Operable STC Rating
Under 42	0 dB

43 to 45	0 dB

46 to 48	-1 dB

49 to 53	-2 dB

Features

Superior acoustic performance
Lab-tested sealing solutions
Meets ANSI Standard S12.60-2002
Use with any STC Rated Door
Gasketing and inserts have achieved GREENGUARD Gold Certification

Ratings

Air Infiltration Tested - Air infiltration tested in accordance with ASTM E283-04.
Sound Tested - Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria.
BHMA Certified
Smoke Tested - UL1784
Fire Rated - UL10C - Positive Pressure
Underwriters Laboratory 4L10
GREENGUARD Gold Certified

STC
