Pemko PEMKOSTCSET-2D Acoustical Door Seal Set

$139.89

Usually Ships: 5-10 Business Days

Complete STC solution in a kit
Includes ACP112BL, 2008APK, 303AS, and S44BL
Sound tested, fire-rated, and smoke tested

Available Options:

Clear

Size

Quantity:

Added to Cart

Pemko PEMKOSTCSET-2D Acoustical Seal Set for Frames and Doors

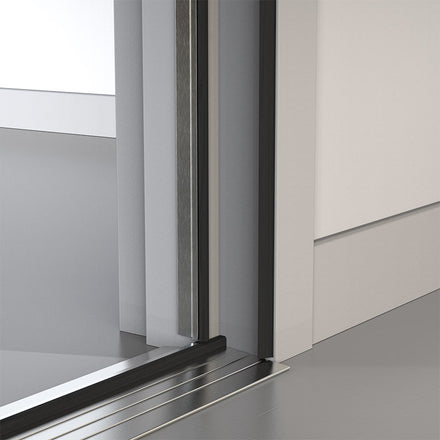

This kit combines our 303AS screw-applied gasket with silicone bulb, S44 adhesive-back style gasket, 2008APK acoustic threshold with integrated stop to provide optimal performance. The 2008APK threshold provides a continuous seal across the width of the opening and seals against the face of the door to aid with dampening and absorption of sound waves.

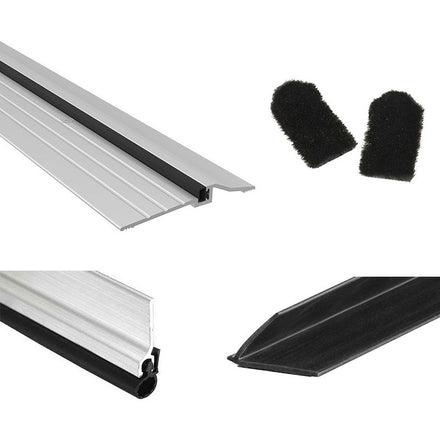

Kit Includes:

ACP112BL: Black Pile
2008APK: A – Mill Finish Aluminum Aluminum with Black PemkoPrene insert

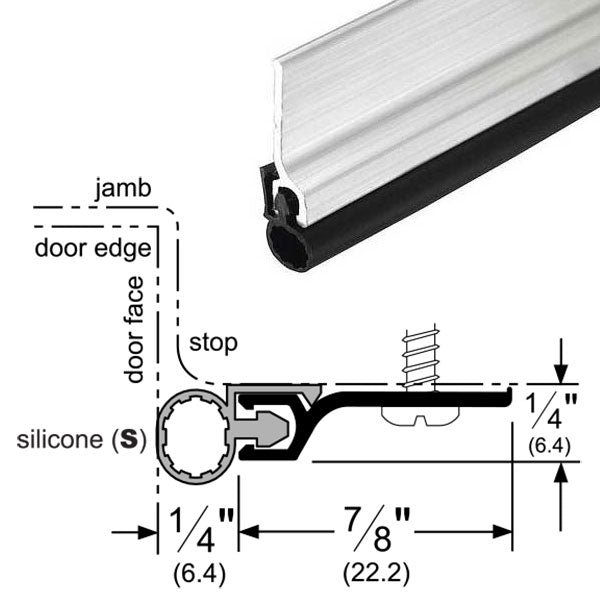

303AS: A - Mill Finish Aluminum Aluminum with Black Silicone insert
S44BL: BL - Black Silicone (One Row)

This kit offers the following demonstrated performance

Doors with inoperable STC Ratings of:	Decible (dB) drop from Operable STC Rating
Under 42	0 dB

43 to 45	-1 dB

46 to 48	-1 dB

49 to 53	-2 dB

54 to 58	-3 dB

Features

Superior acoustic performance
Lab-tested sealing solutions
Meets ANSI Standard S12.60-2002
Use with any STC Rated Door
Gasketing and inserts have achieved GREENGUARD Gold Certification

Ratings

Air Infiltration Tested - Air infiltration tested in accordance with ASTM E283-04.
Sound Tested - Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria.
BHMA Certified
Smoke Tested - UL1784
Fire Rated - UL10C - Positive Pressure
Underwriters Laboratory 4L10
GREENGUARD Gold Certified

STC
