Accentra (Formerly Yale)

Accentra (Formerly Yale) 2100 x 634F Panic Rim Exit Device with Dummy Pull Trim

$534.76
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 02 (dummy)
  • Includes 634F pull (pull when dogged)

Available Options:

Clear
Added to Cart

Product Overview

Accentra (formerly Yale) 2100 Economy Rim Exit Device, 634F Dummy Pull Trim

Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 Series Exit Device is the right choice for meeting the rigors of everyday use. The 2100 Series is a perfect fit for both back of house and prominent openings in office buildings, retail, and a long list of other facilities that require both performance and style.

  • ANSI Function 02 – Pull when dogged
  • Tough: Sturdy construction is ideal for meeting the rigors of demanding industry environments
  • Economical: Works for many building projects, regardless of budget
  • Strong & Durable: ANSI/BHMA Grade 1 Certification ensures long life and reliability

634F Dummy Pull Plate

  • ANSI Function: 02
  • Trim through-bolts to exit device for strength
  • Non-handed

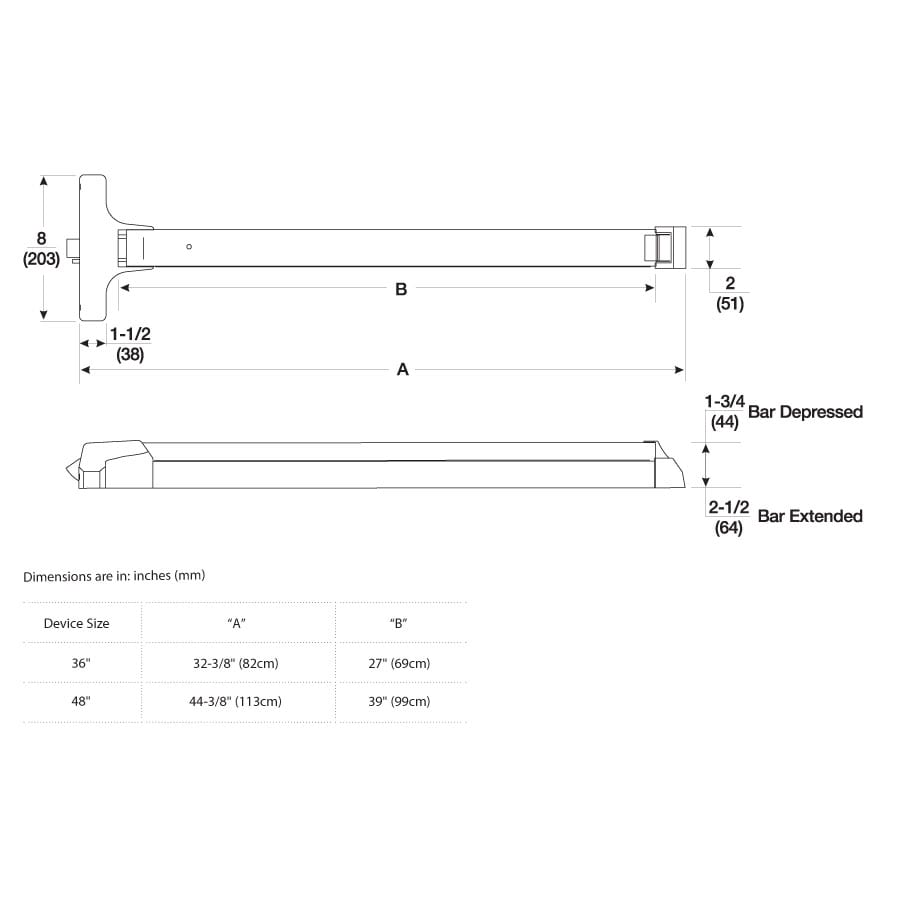

  • Dimensions: 2-3/4″ x 15-1/2″ x 5/8″
  • Projection: 2-1/8″
Brand

Length

36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors)

Finishes

630 Satin Stainless Steel

Includes Trim

Yes

Trim

634F

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Usage

Medium Duty

Stile Type

Wide (Standard)

Fire-Rating

None

Handing

Non Handed – Completely Reversible

Minimum Stile Width

4-1/2"

Projections

2-1/2" active, 1-3/4" dogged

Latchbolt

3/4" deadlocking stainless steel pullman-type

Strike

757F, 793 optional (double door application, panic only)

Dogging Feature

Half turn hex dogging standard

Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware

Door Applications

1-3/4" Metal, wood or composite doors

Warranty

3 Year
