Product Overview

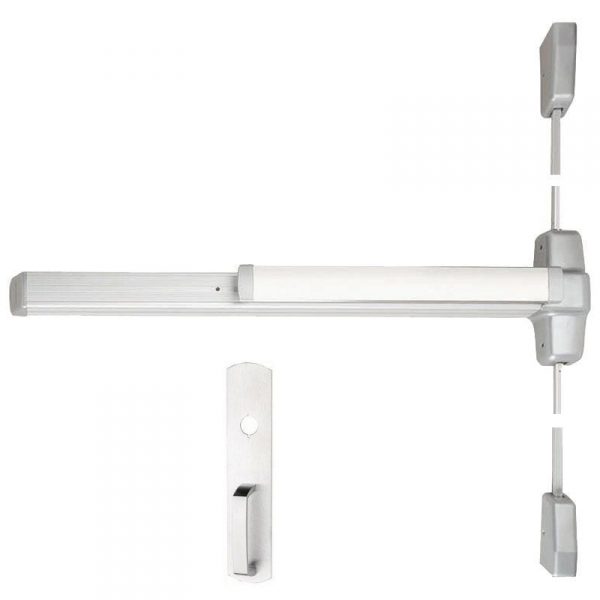

Von Duprin 9927NL Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 990NL-R/V Pull, 84″ Door Height
The 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources, and more.
- Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rod available for door up to 10’0″)
- Designed for high use and abuse in institutional applications
990NL Night Latch Pull Trim
- ANSI Function: 03 (Entrance by pull when latch bolt is retracted by key – Key is removable only when locked)
- Escutcheon plate size: 3″ x 14-13/16″ x 3/32″
- Projection: 2″
- Pull center to center: 5-1/2″
- Rim cylinder must be ordered separately
| Brand | |
|---|---|
| Length | 3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
| Vertical Rods | Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available) |
| Trim | 990NL (Night Latch – Key Retracts Latchbolt) |
| Cylinder | 1-1/8" Rim Cylinder (Sold Separately) |
| Hand | Non-handed |
| ANSI Grade | Certified ANSI A156.3-2001 Grade 1 standards |
| Usage | Heavy Duty |
| Fire Rating | 9927NL: Non-Fire-Rated – 9927NL-F: UL Listed A or B label Fire-Rated (3 Hours) |
| Strikes | 9927: 299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold – 9927F: 299F Top Strike, 304L Bottom Strike |
| Latchbolt | Deadlocking anti-friction top & bottom bolt, 5/8" throw |
| Fasteners | Includes screws for metal and wood doors |
| Dogging Feature | Hex key dogging standard on non-fired-rated devices |
| Projections | Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16" |
| Center Case | 8" x 2-3/4" x 2-3/8" |
| Stile Type | Wide (Standard) |
| Device Type | Surface Rod Device |
| Door Applications | 1-3/4″ Thick Doors |
| Finishes | 313 Duranodic Dark Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum |
| Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
