Von Duprin 9927L-NL Surface Vertical Rod Exit Device with Nightlatch Lever

$2,240.70
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • ANSI Function 09 (Key Retracts Latchbolt)
  • Includes 996L-NL-06 Night Latch Lever (cylinder sold separately)

Available Options:

Clear

Product Overview

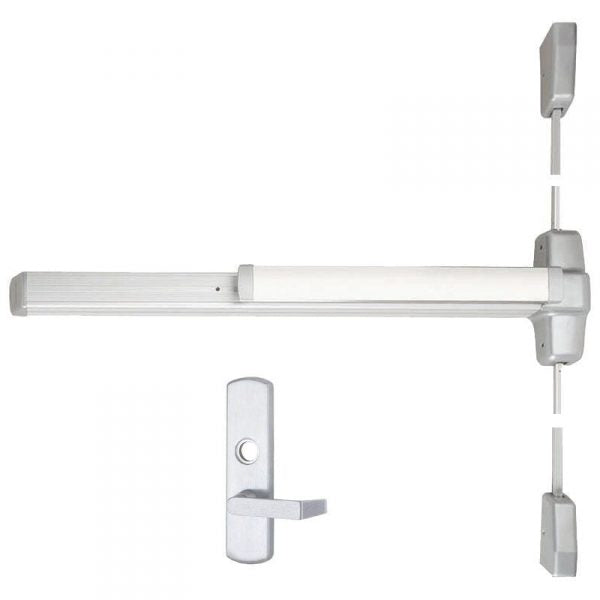

Von Duprin 9927L-NL Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 996L-NL-R/V Trim, 06 Lever, 84" Door Height

The 9927 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. 9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9927-F model is fire-rated for pairs of doors up to 8′ x 10′ – UL listed for fire exit hardware.

  • Standard Sizes: 3' x 7', 4' x 7' (extension rod available for door up to 10'0")
  • Designed for high use and abuse in institutional applications like schools, hospitals and government facilities

996L-NL Night Latch Lever Trim

  • ANSI Function: 09
  • Rim cylinder required (sold separately)
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • #06 lever style furnished standard

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (top extension rod available)

Trim

996L-NL (Night Latch - Key Retracts Latchbolt)

Cylinder

1-1/8" Rim Cylinder (Sold Separately)

Hand

Device Non-Handed - Lever Ships as RHR (Field Reversible)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire-Rating

9927L-NL: Non-Fire-Rated – 9927L-NL-F: UL Listed A or B label Fire-Rated (3 Hours)

Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw

Strikes

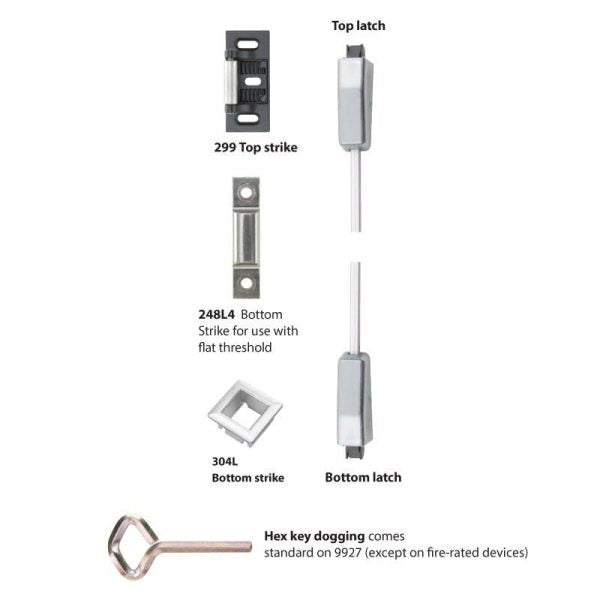

9927: 299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold - 9927F: 299F Top Strike, 304L Bottom Strike

Fasteners

Includes screws for metal and wood doors

Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"

Center Case

8" x 2-3/4" x 2-3/8"

Stile Type

Wide (Standard)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Device Type

Surface Rod Device

Door Applications

1-3/4″ Thick Doors

Finishes

US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US19 (315) Flat Black, 313 Duranodic Dark Bronze

Buy American Act Compliance

Meets Buy American Act - Made in USA
