Von Duprin

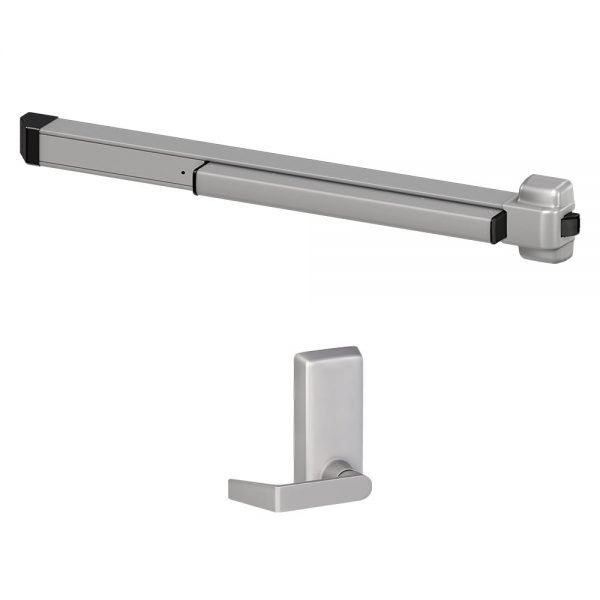

Von Duprin 22L-BE Rim Panic Bar Exit Device with Passage Lever

$530.08
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified - Made in USA
  • ANSI Function 14 (lever always operable)
  • Includes 230L-BE Lever (passage - blank escutcheon)

Available Options:

Clear

Product Overview

Von Duprin 22L-BE Grade-1 Rim Exit Device with Trim, Lever with Blank Escutcheon, Passage Function

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

230L-BE Passage Lever Trim (Lever Always Operable, No Cylinder)

  • ANSI Function: 14
  • Escutcheon plate size: 3" x 6-3/8" x 15/16"
  • Projection: 2-5/8"
  • #06 lever style furnished standard

Brand

Finishes

622 Matte Black, 695 Dark Bronze (Powder Coated), 689 Aluminum (Powder Coated)

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Trim

230L-BE

Hand

Device Non-Handed - Lever Field Reversible

Fire-Rating

22-EO Non-Rated – 22-EO-F UL listed A or B label fire rating

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Usage

Medium Duty

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Buy American Act Compliance

Meets Buy American Act - Made in USA

VonDuprin22RimDeviceInstallationInstructions VonDuprin230LL-BELeverControlInstallationInstructions How to Install Von Duprin 98/99 Rim Exit Device
