Falcon 25-R-L-BE Panic Bar Rim Exit Device with Passage Lever

$742.58
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI Grade-1 Certified, Made in USA
  • ANSI Function 14 (lever always unlocked and operable)
  • Includes 510L-BE Blank Escutcheon Dane Lever

Available Options:

Clear

Product Overview

Falcon 25R-L-BE, 25 Series Rim Exit Device with Blank Escutcheon Trim, Dane Lever Design

The 25-R-L-BE panic rim exit device with passage lever trim is for use with single doors and double doors with a mullion.

No exposed screws or rivets on the back of the device for a streamlined design and clean lines - when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design.

  • Includes 510L-BE lever trim
  • All mounting screws are concealed, sheet metal screws and machine screws standard
  • Stock Sizes: 3' and 4' - Cut to size in field

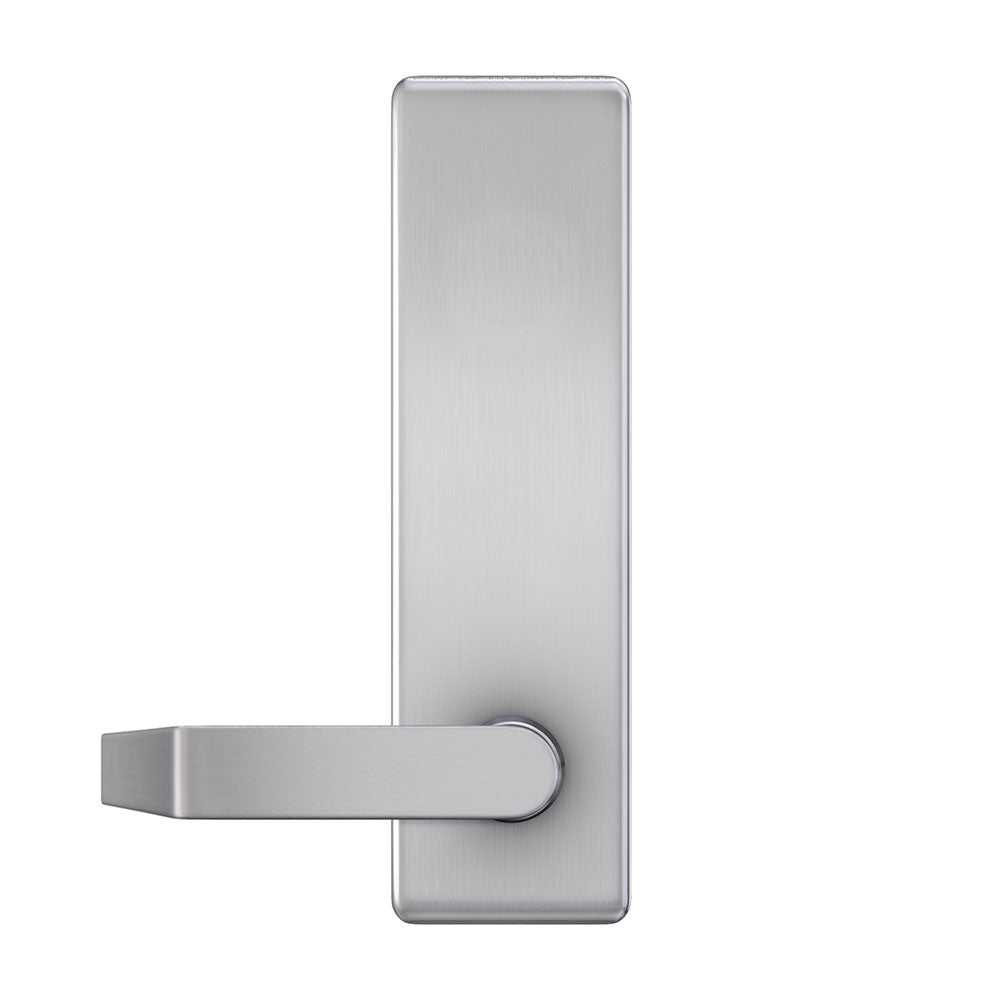

510L-BE Lever Trim (Passage – Lever Always Operable, No Cylinder)

  • ANSI Function: 14
  • Escutcheon plate size: 2-3/4″ x 9-3/4″ x 7/8″
  • DANE lever style furnished standard

Brand

Finishes

US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel, US28 (628) Anodized Aluminum, US19 Flat Black, 313AN Anodized Dark Bronze

Length

3'0" (2'8" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Includes Trim

Yes

Trim

510L-BE

Hand

Device Non-Handed - Lever Ships as RHR (Field Reversible)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Fire-Rating

25R: Non-Fire-Rated - F25R: 3 Hour Fire-Rated

Usage

Heavy Duty

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

299 roller strike standard, 299F strike with fire-rated device

Latchbolt

Stainless steel, 3/4" throw - Deadlocking

Fasteners

All mounting screws are concealed, sheet metal screws and machine screws standard

Projections

2-3/4" maximum, 2" dogged

Stile Type

Wide (Standard)

Minimum Stile Width

4" w/ Standard Roller Strike

Door Applications

1-3/4″ Thick Metal or Wood Doors

Buy American Act Compliance

Meets Buy American Act - Made in USA
