Von Duprin 22EO ALK Rim Exit Device with Battery Powered Alarm Kit

Usually Ships: 1-2 Business Days

ANSI/BHMA Grade-1 Certified – Made in USA
Includes “EMERGENCY EXIT ONLY. ALARM WILL SOUND.” decal
Includes 3215 mortise cylinder (Schlage C keyway)

Available Options:

Finish

Length

Clear

Quantity:

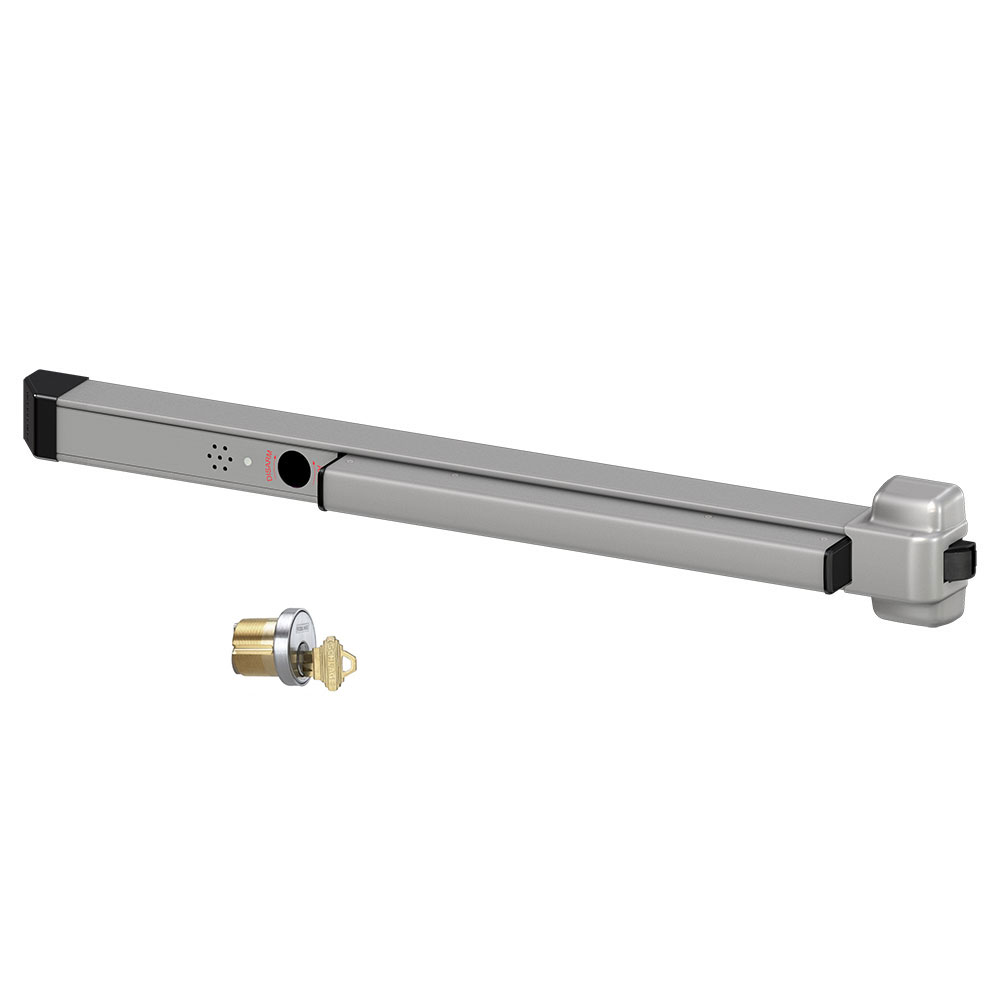

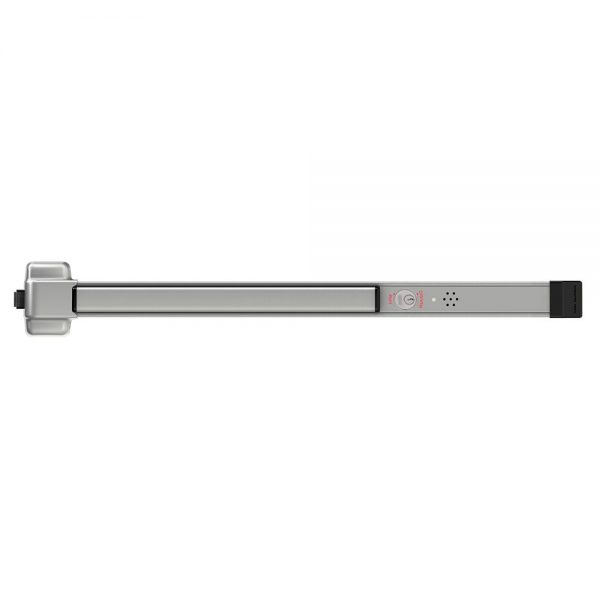

Von Duprin 22EO ALK Grade 1 Rim Exit Bar, Wide Stile Pushpad, 3ft., Exit Only, Less Trim, Battery Powered Alarm Kit with Cylinder, RX Switch

ALK Alarm Kit is a simple yet effective way to deter unauthorized use of an opening. While the exit device is still a means of egress, the ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated. The alarm kit can be armed or disarmed by key thus allowing the exit device to be set in an armed or disarmed mode. The horn is rated at 85 decibels.

The assembly includes both a 24VDC Input and External Inhibit standard. The External Inhibit provides remote arming and disarming. The key switch uses a standard 1-1/4″ mortise cylinder with a straight cam (included). The unit operates on one standard 9-volt alkaline battery. When the battery is weak, the horn will emit an intermittent low battery alert signal.

ANSI A156.3, 2008 Grade-1
Operates on one standard 9-volt alkaline battery (included)
Includes RX Request to Exit Switch
UL listed for panic hardware

Brand	Von Duprin
Finishes	622 Matte Black, 689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)
Length	3'0"
Usage	Medium Duty
ANSI/BHMA Standard	ANSI/BHMA A156.3-2008 Grade 1 certified
Fire Rating	None
Electric Options	Alarm Kit, Request to Exit
Cylinder	Includes 3215 (Schlage 20-001 – C Keyway) mortise cylinder
Stile Type	Wide (Standard)
Hand	Non-handed
Strike	299 roller strike standard
Latchbolt	Deadlatching, 3/4" throw
Fasteners	Includes screws for metal and wood doors
Dogging Feature	None
Projections	Pushbar neutral: 3-1/4" – Pushbar depressed: 3"
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
