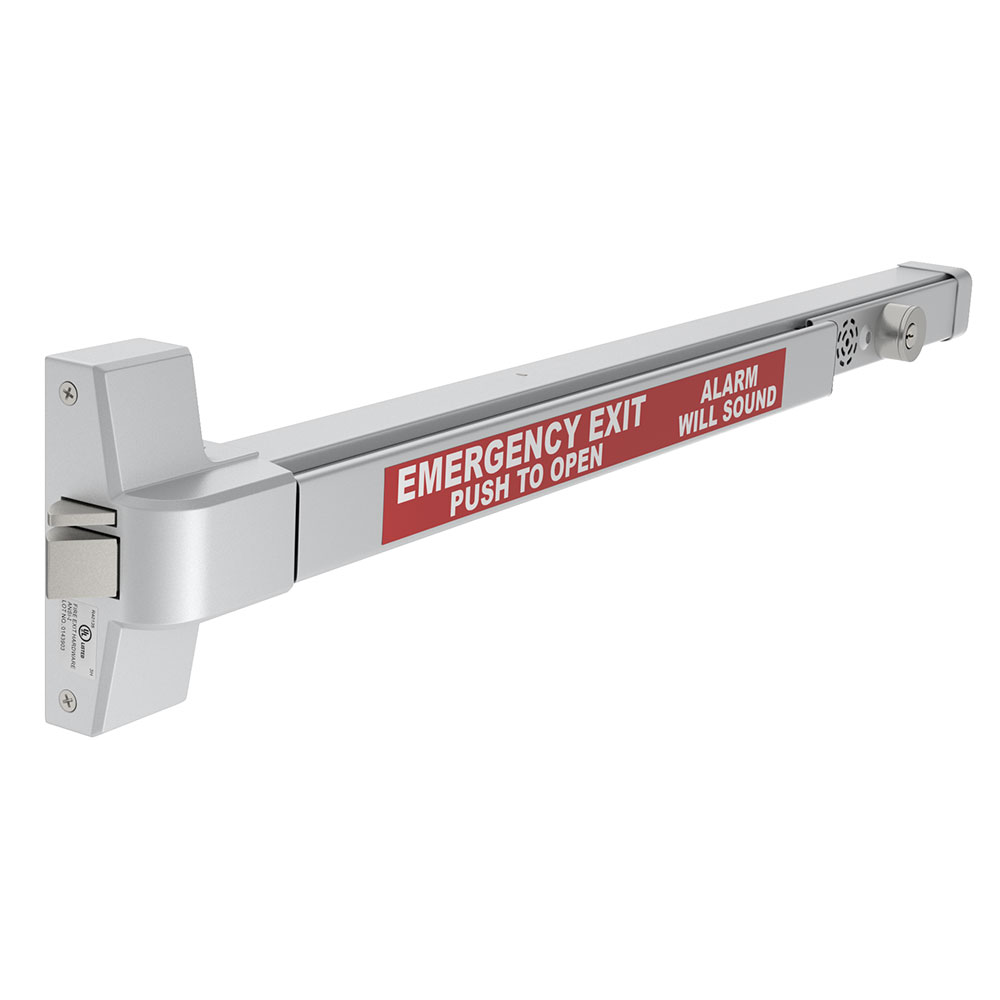

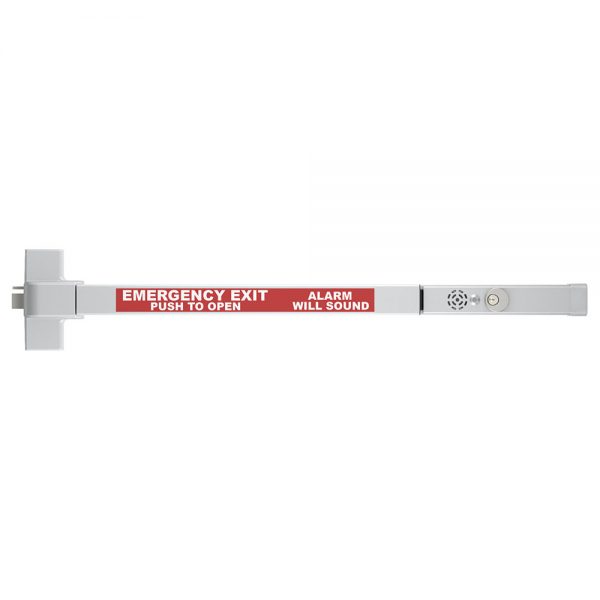

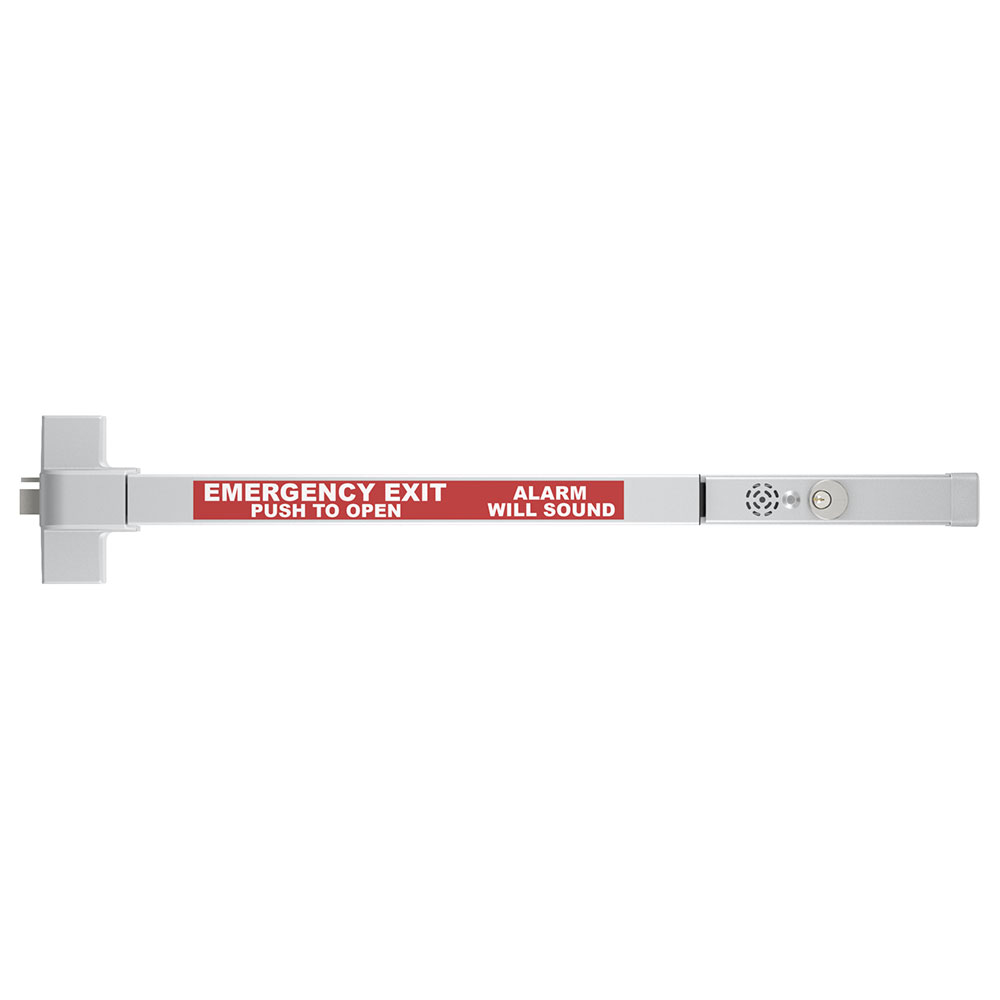

Trudoor TDE-ALK-2000R Alarmed Rim Exit Device

Usually Ships: 3-5 Business Days

Helps prevent unauthorized use of an emergency exit door
90db alarm – powered by standard 9-volt battery (included)
Alarm is activated when push bar is depressed

Available Options:

Finish

Length

Clear

Quantity:

Trudoor TDE-ALK-2000R Grade-1 Rim Exit Device, Battery Powered Alarm Kit Installed, Panic Rated, Exit Only

The TDE-ALK-2000R is designed for primary and secondary exits that require an alarmed panic device. A 90-decibel alarm will sound when someone attempts to exit, alerting management to the unauthorized exit.

Exit Only (Trudoor Exit Device Trim sold separately)
5/32” hex key dogging standard on panic exit device
Deadlocking latchbolt with 5/8” projection
Includes ASA strike (frame) filler plate and 161 door edge filler plate
UL Listed for Panic Exit Hardware

ALK Alarm Kit

Factory installed
Alarm is armed/disarmed by turning key in the mortise cylinder (cylinder included – Schlage C keyway)
LED flashes green every 30 seconds to indicate alarm is in armed position
Alarm is activated when push bar is depressed
Alarm can be bypassed by trim/key from the outside
9 Volt battery, life approximately 1 year – Low battery alert indicated by red flash & chirp every 5 seconds
Decibel Rating: Approximately 90 decibels at 15 feet
Includes 9-Volt Battery and “Emergency Exit” Sticker for touchpad or door face

Brand	Trudoor
Finishes	AL – Aluminum
Length	3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
Electric Options	Alarm Kit
Cylinder	1-1/8″ Mortise Cylinder with Straight Cam (included) – 6-Pin, Schlage C Keyway, Includes Two Keys
Includes Trim	No
ANSI Grade	Meets ANSI A156.3 – Grade 1 Standards
Usage	Medium Duty
ADA Compliance	Meets ADA requirements ANSI A117.1 with Lever Trim
UL Listings	UL Listed for Panic Exit Hardware
Fire Rating	None
Trim	None – Exit Only (Outside Trim Sold Separately)
Latchbolt	Deadlocking latchbolt with 5/8″ projection
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Strike	Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners	Wood, Machine & Self Tapping Machine Screws
Handing	Non Handed – Completely Reversible
Stile Type	Wide (Standard)
Minimum Stile Width	4" w/ Standard Roller Strike
Center Case	6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Mechanism Case	1-5/8″ Height x 1-13/16″ Wide
Projections	2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
