Pemko

Pemko 171 Saddle Threshold - 5″ Wide x 1/2″ High

$40.10
Usually Ships:  1-2 Business Days
  • 5" Wide x 1/2" High
  • Barrier-Free, ADA Compliant
  • Fire-Rated up to 3 Hours

Available Options:

Clear

Product Overview

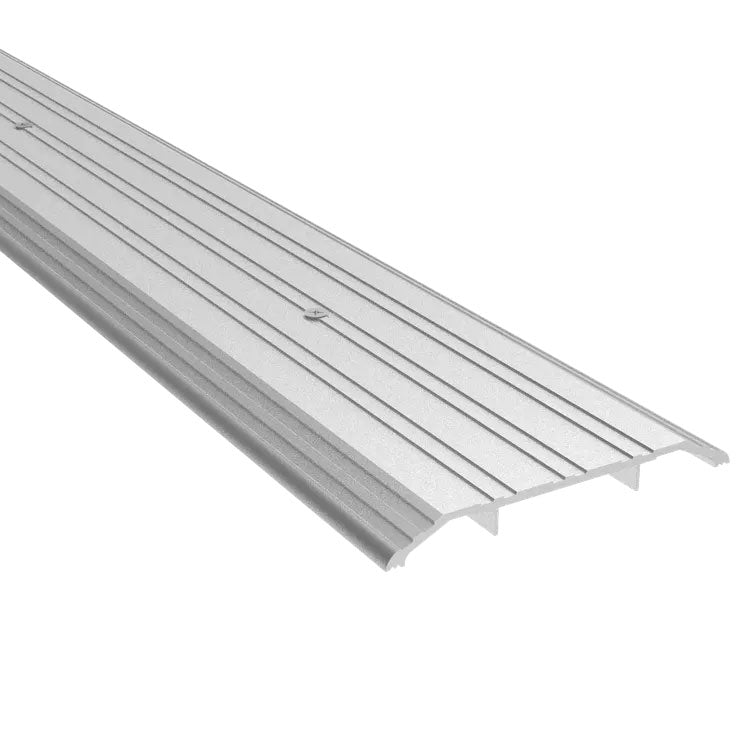

Pemko 171 Series Commercial Flat Saddle Threshold, 5″ W x 1/2″ H

The 171 Series Commercial Flat Saddle Threshold is a durable and fire-rated doorway threshold made from high quality thick metal. It is ADA compliant with a width of 5" and height of 1/2". Available in various finishes and custom cut to size. Perfect for creating a smooth transition in commercial settings.

The Pemko 171_ fluted saddle threshold for commercial door openings is our most popular and top-selling threshold. Saddle thresholds are symmetrically shaped and designed to seal the area under a door while creating a more finished look for commercial applications.

  • ADA accessible
  • Made from thick, durable metal
  • Width: 5” (127.0 mm)
  • Height: 1/2” (12.7 mm)
  • Lengths: 36", 48", 72", *96" and *120"

*excessive length shipping fee applies

Finishes

  • 171A: A - Mill Finish Aluminum
  • 171AK: AK - Mill Finish Aluminum w/ PemKote Skid Resistant Surfacing
  • 171B: B - Mill Finish Extruded Bronze (Brass)
  • 171BSP: BSP - Black Suede Powder Coat Aluminum
  • 171D: D - Dark Bronze Anodized Aluminum
  • 171G: G - Gold Powder Coat Aluminum
  • 171SN: SN - Satin Nickel Anodized Aluminum
  • 171WSP: WSP - White Suede Powder Coat Aluminum

Ratings

  • Barrier-Free (ADA): Meets the requirements of ADAAG-2010 (Amended) and ANSI A117.1-2009 - Overall height is no greater than 1/2"
  • BHMA Certified: Tested for performance with regards to the requirements in ANSI/BHMA A156.21 – Thresholds
  • Fire Rated: Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies

pemko-ratings-threshold







Warranty Info

Guaranteed for five (5) years against defects in material or workmanship, except: 1) PemKote abrasive surface for thresholds is guaranteed for ten (10) years. 2) Powder Coated finishes are warranted for two (2) years; normal wear is not included in coverage.

Brand

Finishes

A - Mill Finish Aluminum, AK - Mill Finish Aluminum w/ PemKote, B - Mill Finish Extruded Bronze (Brass), BSP - Black Suede Powder Coat, D – Dark Bronze Anodized Aluminum, G - Gold Powder Coat, SN – Satin Nickel Anodized Aluminum

Length

36", 48", 72", 96", 120"

Width

5"

Height

1/2"

ANSI/BHMA Standard

ANSI/BHMA A156.21

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
