Product Overview
The perfect solution for renovation/retrofit or new construction. MOUNTS ON DOOR FACE AND FRAME RABBET. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

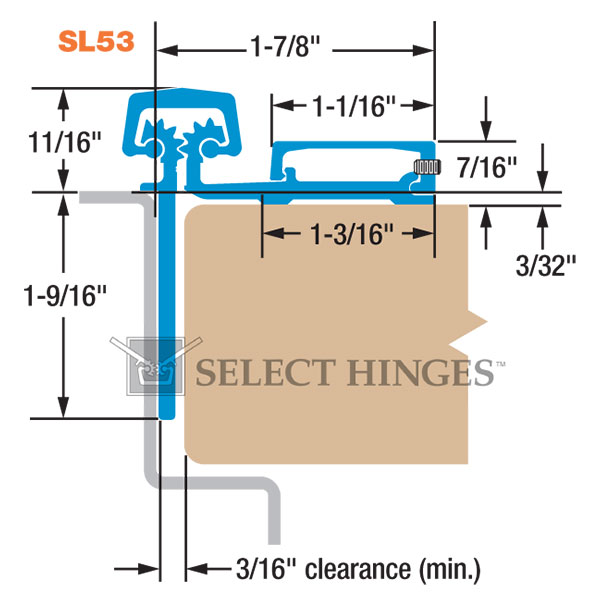

Narrow frame leaf. Tamper-resistant, removable door leaf cover. 3/32” door inset. For 1-3/4" doors.
SL53 HD600 geared continuous hinges are BHMA Grade 1 certified.
- Lifetime lubrication
- Anodized after machining
- Consistent templating
| Brand | |
|---|---|
| Finishes |
Dark Bronze Anodized Aluminum, Clear Anodized Aluminum |
| Length |
83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door) |
| Material |
Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings. |
| Load / Frequency |
For 1-3/4" doors, 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.). Heavy Duty 600 – For high-frequency doors up to 600 lb. Rivnuts are recommended in the frame when the door exceeds 450 lb |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
ANSI/BHMA A156.26-2006 Grade 1 |
| Fire-Rating |
All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost |
| Continuous Hinge Type |
Half Surface |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
