Product Overview

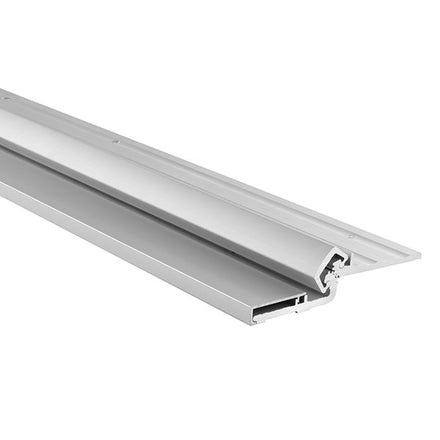

Pemko _HS_HD Heavy-Duty Half Surface Continuous Gear Hinge
Heavy Duty Anodized Aluminum Continuous Geared - designed mainly for retrofit work, and are applied to the exposed surface of the door and frame rabbet.
- Applied to the exposed surface of the door and frame rabbet
- Designed for use with hollow metal frames, where the inset conforms to S.D.I. specifications for aligning doors and frames
- Allows for adjustments in order to properly align the edge of the door to the frame
- ANSI/BHMA A156.26 and UL certified

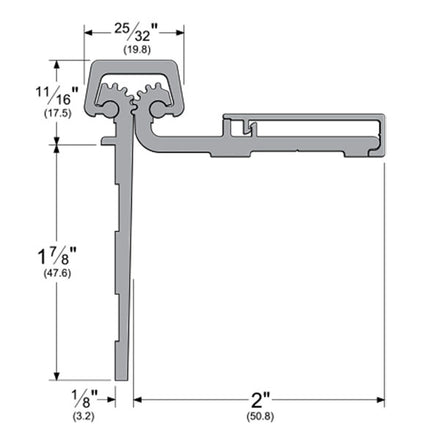

- Width: 1/8” (between frame edge and door edge)
- Width: 2” (between frame leaf and door leaf edge)
- Cap Width: 25/32”
- Height: 11/16” (to top cap/frame edge side)
- Height: 1-7/8” (to flange/frame edge side)
- Length: 83" or *95"
- Finishes: C (Clear Anodized) and D (Dark Bronze Anodized)
*excessive length surcharge applies to 95″ model
Models: CHS83HD1, CHS95HD1, DHS83HD1, DHS95HD1
| Brand | |
|---|---|
| Continuous Hinge Type |
Half Surface |
| Finishes |
C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum |
| Length |
83" (for 7'0" door), 95" (for 8'0" door) |
| Material |
Aluminum |
| Usage |
Heavy Duty |
| Door Applications |
1-3/4″ Thick Doors |
| Warranty |
10 Years |
