Product Overview

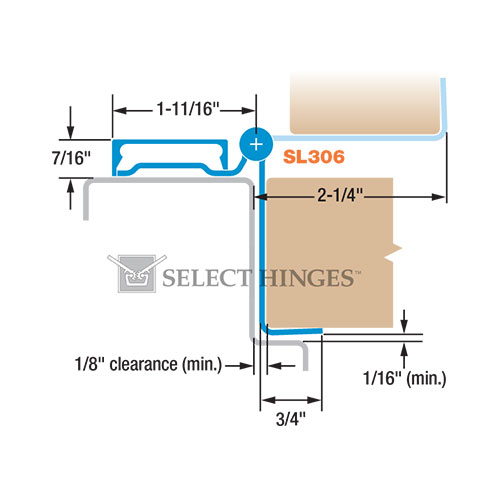

HALF MORTISE MOUNT applicable for renovation/retrofit or new construction. For 1-3/4" doors weighing up to 600 lb. (max. 48" door width).
- Stainless steel half mortise hinge with edge guard
- Mounts on frame face and door edge
- Tamper-resistant frame leaf cover
- For 1-3/4" doors weighing up to 600 lb., 48" max. door width
- SL306 pin & barrel continuous hinges are BHMA Grade 1 certified
- Corrosion-resistant stainless steel
- Templated hole pattern
- 3-hour fire-rated
| Brand | |
|---|---|
| Length |
83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door) |
| Finish |
Stainless Steel |
| Material |
14 gauge 304 stainless steel with 3/16" diameter 304 stainless pin. Long-life nylon medical bearings. |
| Load / Frequency |
For 1-3/4" doors, 48" wide (max.), weighing up to 400 pounds (medium-frequency) without frame or door reinforcement; up to 600 pounds (low-frequency) without frame or door reinforcement. |
| ANSI/BHMA Standard |
ANSI/BHMA A156.26-2006 Grade 1 |
| Fire-Rating |
3 Hour Fire-rated |
| Continuous Hinge Type |
Half Mortise |
| Usage |
Heavy Duty |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
