Product Overview

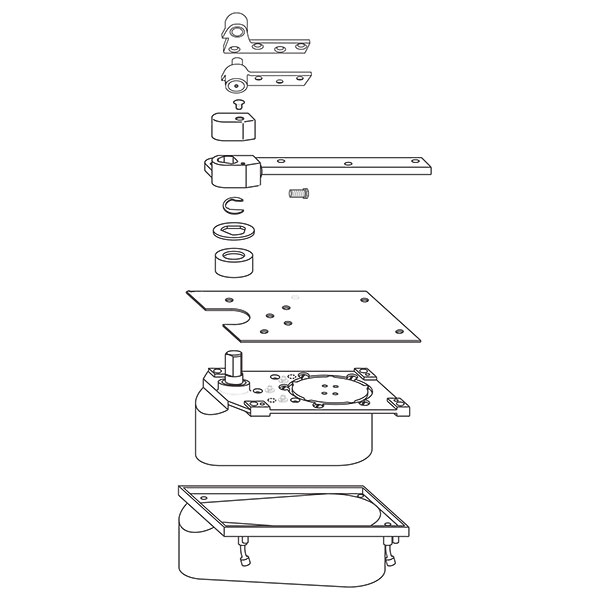

Rixson Model #27 Complete Floor Door Closer, 3/4" Offset Hung, (N) Non Hold Open
The 27 is a 3/4" offset-hung floor closer designed for standard door frame installation for interior or exterior doors weighing up to 450lbs.
Features
- Pivot point located 3/4" from the heel edge of the door and 3/4" from face of door
- Single acting, handed
- Exterior or interior doors
- 180 top pivot included
- M19 intermediate pivots required (order separately)
- Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 90° or 105°
- Separate independent valves for closing speed, latch speed, and backcheck
- Vertical door adjustment
- Available with floor plate or threshold installation
- Cycolac, rust-proof cement case
- Doors 60" to 90" in height should use one intermediate pivot - each additional 30" warrants another intermediate pivot
- Extended spindles available in 1/2" increments up to 2" longer than standard
- Door width up to 4' 0"
- Door weight up to 450lbs.
Benefits
- Aesthetically appealing way to support and control the door
- Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
- Heavy-duty hardened one-piece steel spindle designed to provide positive dead stop
- Built-in positive dead stop prevents door from swinging beyond the desired opening degree
- Multiple valves provide precision adjustment and enhanced control
- Weight of door is supported by floor closer
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613e Dark Oxidized Satin Bronze equivalent, BSP - Black Suede Powder Coat |
| ANSI/BHMA Standard |
ANSI/BHMA A156.4, Grade 1 |
| Usage |
Heavy Duty |
| Handing |
Handed – LH, RH |
| Warranty |
10 Year Limited |
