Product Overview

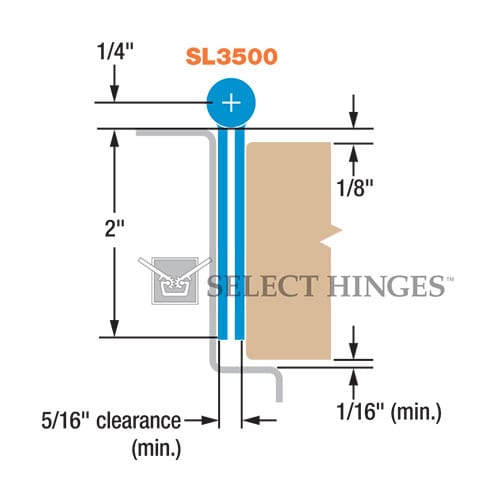

Extra heavy duty 12 gauge stainless steel. Meets ASTM F-1450A Abuse Test requirements. Hospital Tip Prep standard. 1/8" door inset. For 1-3/4" to 2-1/4" doors weighing up to 900 lb., 48" max. door width.
SL3500 pin & barrel continuous hinges are BHMA Grade 1 certified.
- CORROSION-RESISTANT STAINLESS STEEL
- TEMPLATED HOLE PATTERN
- 3-HR. FIRE RATING
- STAINLESS STEEL PIN
| Brand | |
|---|---|
| Length |
83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door) |
| Finish |
Stainless Steel |
| Material |
12 gauge 304 stainless steel with 3/16" diameter 304 stainless pin. Long-life nylon medical bearings. |
| Load / Frequency |
For 1-3/4"—2-1/4" doors, 48" wide (max.), weighing up to 900 pounds with frame and door reinforcement. |
| ANSI/BHMA Standard |
ANSI/BHMA A156.26-2006 Grade 1 |
| Fire-Rating |
3 Hour Fire-rated |
| Continuous Hinge Type |
Full Mortise (Concealed) |
| Usage |
Heavy Duty |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
