Rockwood

Rockwood LTWS-B2 Windstorm Rated Vision Lite Kit Pack with Galvannealed Frame and 9/16" Laminated Glass

$329.54
This item ships FREE! Usually Ships:  5-10 Business Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes 9/16" heat-strengthened laminated glass
  • Built and tested to withstand extreme windstorm conditions

Available Options:

Clear

Product Overview

Rockwood LTWS-B2 Windstorm Vision Lite Frame, Galvanneal Steel, Includes 9/16" Heat-Strengthened Laminated Glass and Glazing Tape, for 1-3/4" Thick Door

The LTWS-B2 Windstorm Rated Lite Kit was purpose-built and tested to withstand extreme windstorm conditions. This product effectively supports door assembly integrity during severe weather events, while also providing a wide viewing angle and sleek, hemmed design.

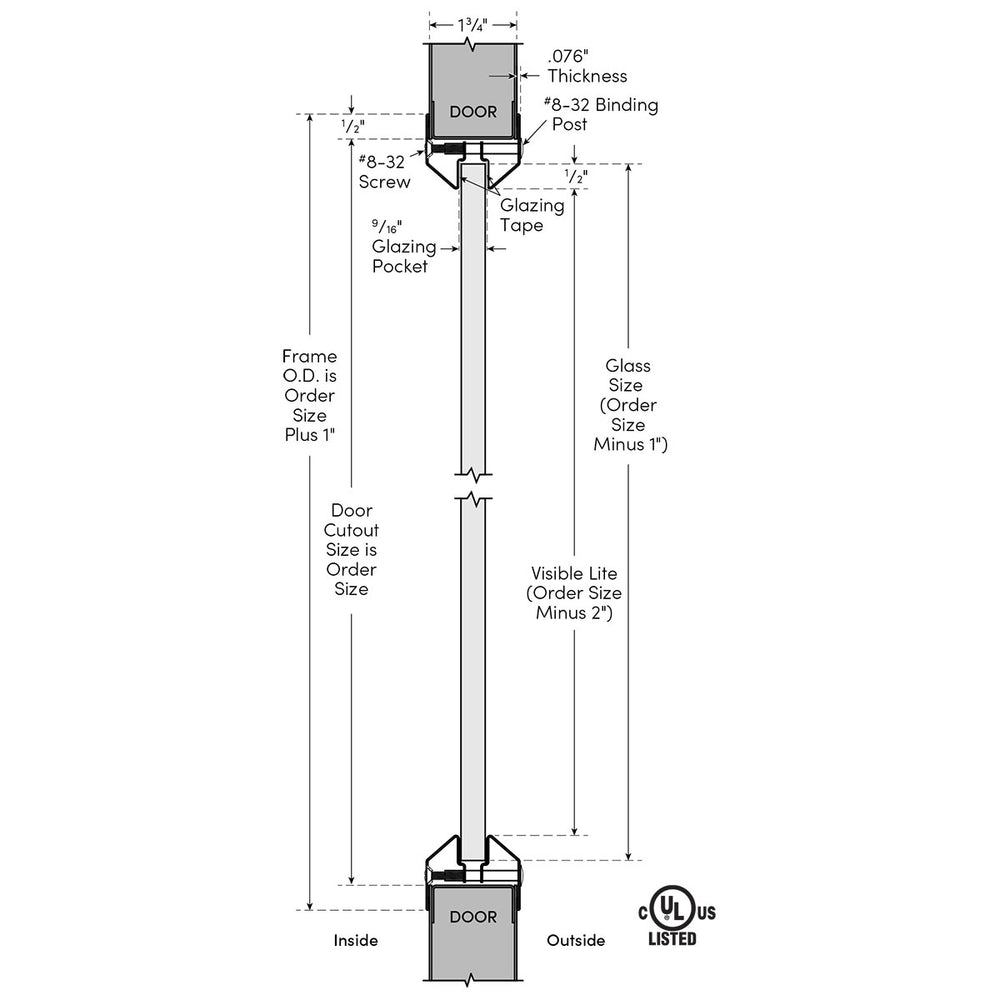

  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
  • Includes 9/16" Heat Strengthened Laminated Glass
  • Includes 1/8" thick Tremco glazing tape
  • Crafted from durable 20-gauge galvannealed steel

Certifications

  • UL 10C Positive Pressure
  • ASTM E330 Certified
  • ANSI A250.13 [+/- 60 PSF] Windstorm Listed
  • ASTM E1996 Certified
  • ASTM E1886 Certified
  • TAS 201 Certified
  • TAS 202 Certified
  • TAS 203 Certified

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Finishes

BSP - Black Suede Powder Coat, WSP - White Suede Powder Coat, Beige Powder Coat, Gray Primer Powder Coat, Dark Bronze Duranodic Powder Coat

Order Size

12" x 12", 5" x 35", 6" x 27", 7" x 22", 24" x 30", 24" x 36", 24" x 66"

Frame Profile

Low

Glass Type

Clear Laminated Glass

Glass Thickness

9/16"

Frame Construction

20 Gauge Galvannealed Steel

Frame Fasteners

#8 - 32 x 3/4" Screw, #8-32 x 1-1/2" Round Binding Post

Glass Fire-Rating

None

Glass Appearance

Clear

Door Thickness

1-3/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
