Anemostat

Anemostat PLSL STORM PRO Security Door Louver with Inverted Split Y Blades and Security Grille

$386.57
Usually Ships:  10-15 Business Days
  • Includes security grille - Free area 50%
  • For 1-3/8" to 1-3/4" thick doors
  • Windstorm rated

Available Options:

Clear

Product Overview

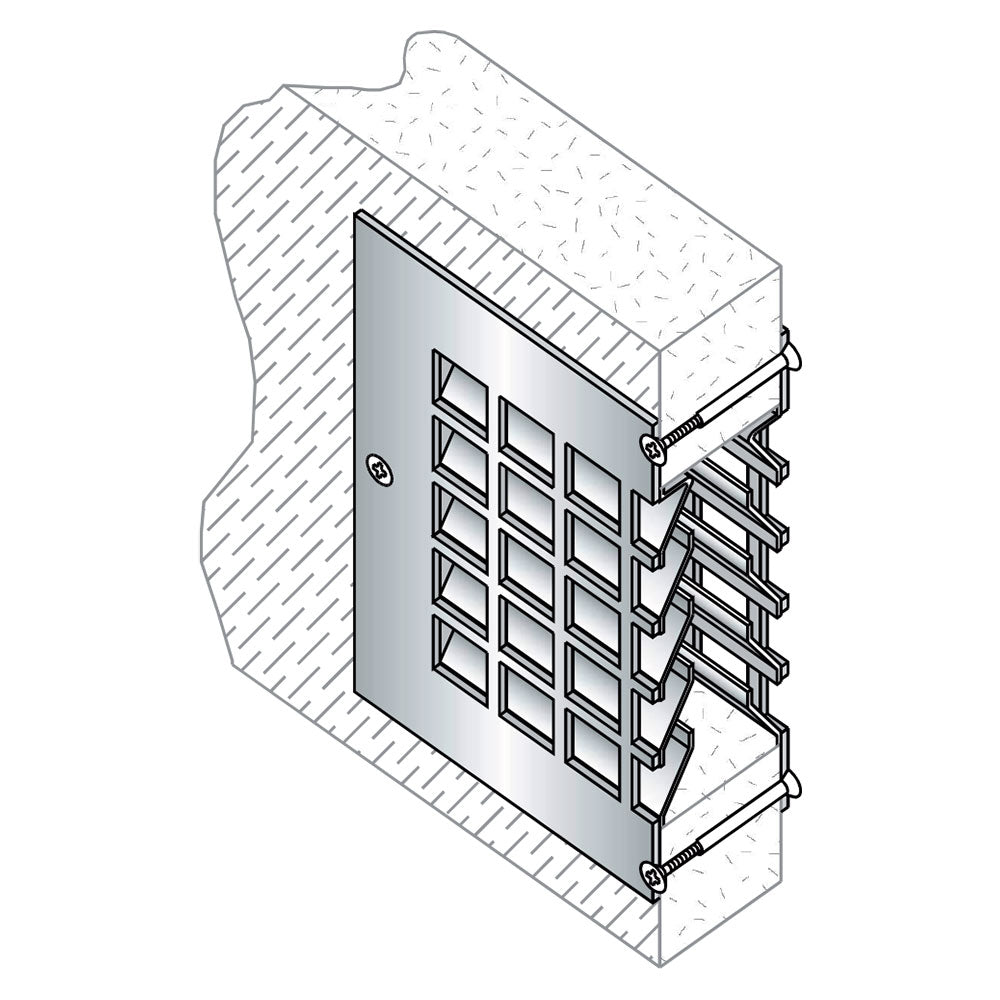

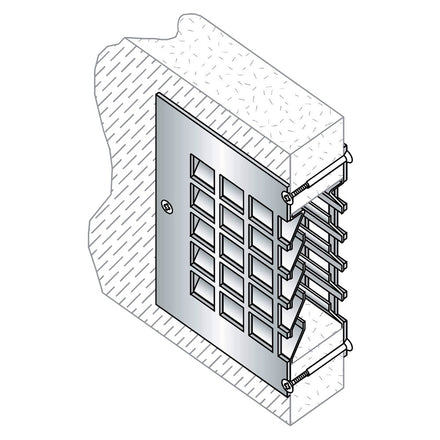

Anemostat/NGP PLSL STORM PRO™ Inverted Split Y Security Door Louver for 1-3/8" to 1-3/4" Thick Doors

  • For 1-3/8" to 1-3/4" Thick Doors

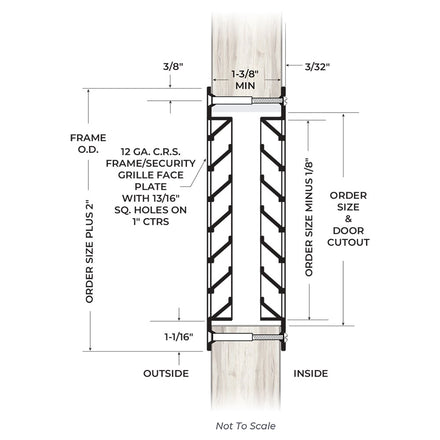

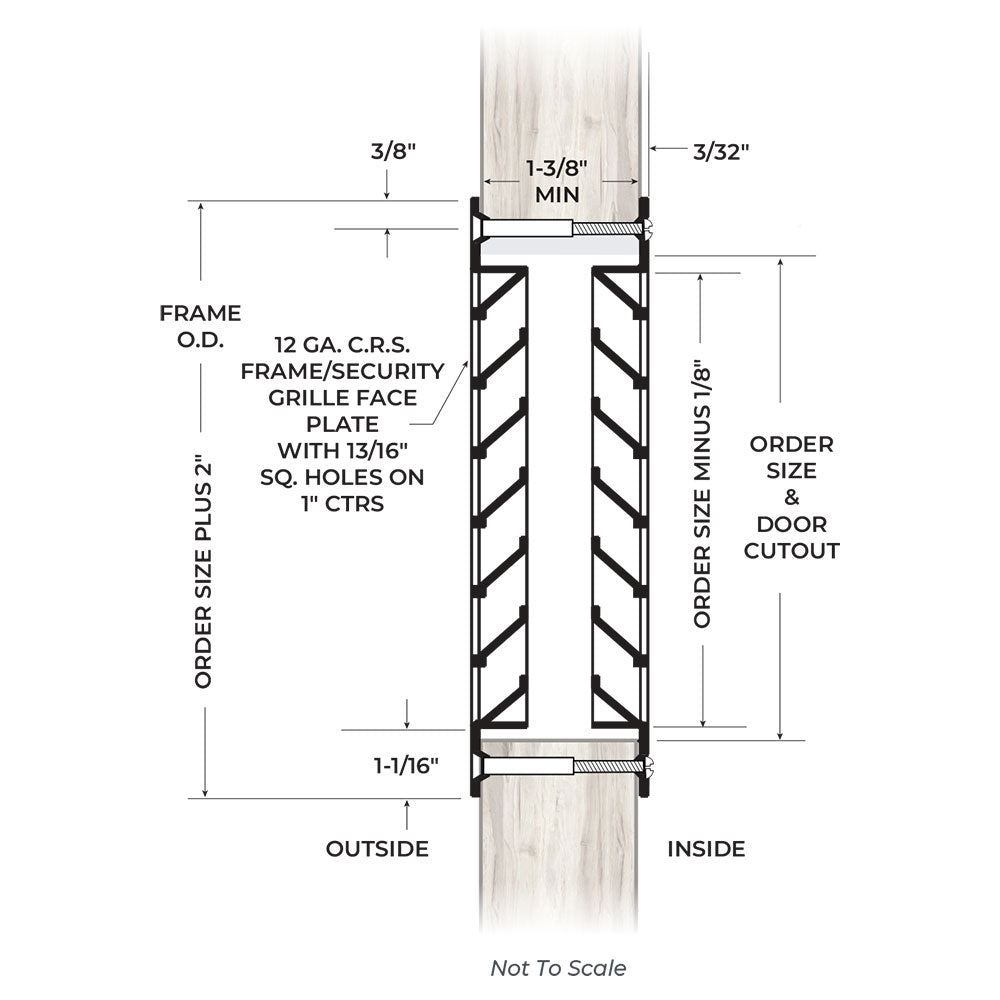

  • 12 Ga. Cold Rolled Steel Security Grille Frame With 13/16" Square Holes on 1" Centers
  • 20 Ga. Cold Rolled Steel Louver Blades
  • Countersunk Mounting Screw-Holes
  • #8-32 Phillips Head Screw Thru-Bolts
  • Free Area 50%
  • Windstorm Rated
  • For Use in Windstorm-Rated Assembly in Accordance With ANSI/ASTM E330, ANSI/ASTM E1886, ASTM E1996, AAMA/WDMA/CSA 101/I.S.2/A440, FEMA 320, FEMA 361 and ICC 500. Design Pressure = +/- 70 PSF, Large Missile, Impact = 350 ft. lbs., Hazard - Hurricane
  • This Product is Not Rated for Use on Fire-Rated Doors

Brand

Finishes

GPZ - Gray Primer, CAB - California Bronze

Size

12" x 12", 24" x 64", 24" x 12", 24" x 18", 24" x 24", 24" x 60", 18" x 12", 18" x 18"

Material

Cold Rolled Steel

Door Thickness

1-3/8" to 1-3/4"

Free Flow Area

50% Free Area

Fasteners

#8-32 Phillips Head Screw Thru-Bolts

Fire-Rating

None

Warranty

5 Year

Buy American Act Compliance

Meets Buy American Act - Made in USA
