Product Overview

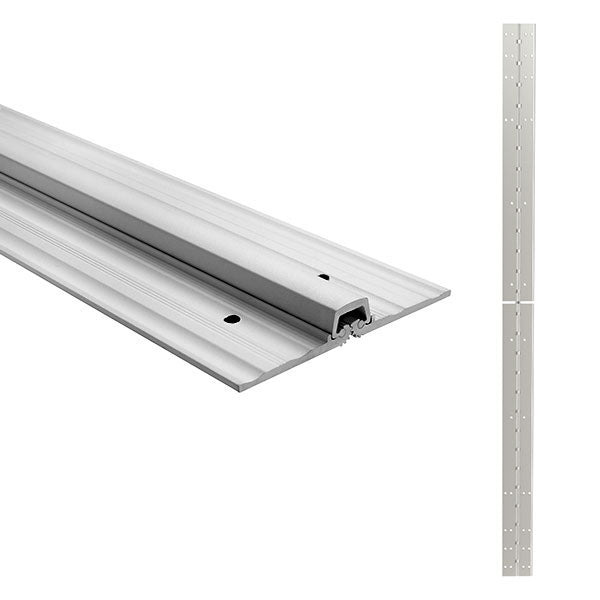

Pemko _FM_HD1-M PemKonnect Modular Heavy-Duty Full Mortise Continuous Gear Hinge
Pemko’s latest groundbreaking innovation the patent-pending PemKonnect™ Modular Hinge was designed with you in mind. With a 50% reduction in packaging size, this multi-piece continuous hinge conveniently fits through doors, elevators, into vans; and can even be stored on shelves.

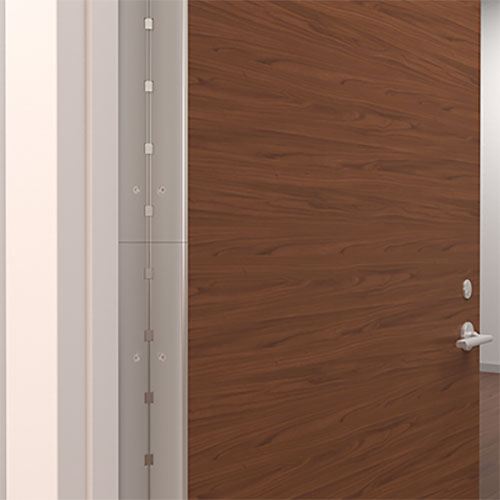

- Applied to the frame rabbet and door edge to conceal both leaves
- Hinge segments fit together easily, No extra tools needed for assembly
- Packed in a 45" box (decreased freight damages and freight costs)
- Fasteners are #12-24 x 11/16” flat head undercut, type C, thread-forming fasteners, no tapping required
- ANSI/BHMA A156.26 and UL certified

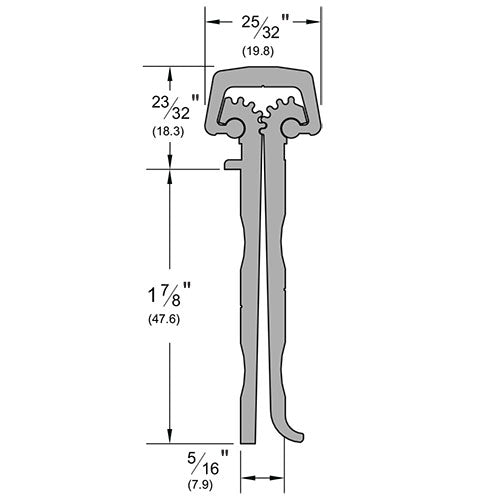

- Width: 5/16” (between frame edge and door edge)
- Cap Width: 25/32”
- Height: 1-7/8” (to flange/frame edge side)
- Height: 11/16” (flange to top of cap)
- Length: 83" (comes in two segments) and 95" (comes in three segments)
- Finishes: C (Clear Anodized) and D (Dark Bronze Anodized)
Models: CFM83HD1-M, CFM95HD1-M, DFM83HD1-M, DFM95HD1-M
| Brand | |
|---|---|
| Continuous Hinge Type |
Full Mortise (Concealed) |
| Finishes |
C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum |
| Length |
83" (for 7'0" door), 95" (for 8'0" door) |
| Material |
Aluminum |
| Usage |
Heavy Duty |
| Door Applications |
1-3/4″ Thick Doors |
| Warranty |
10 Years |
