PDQ

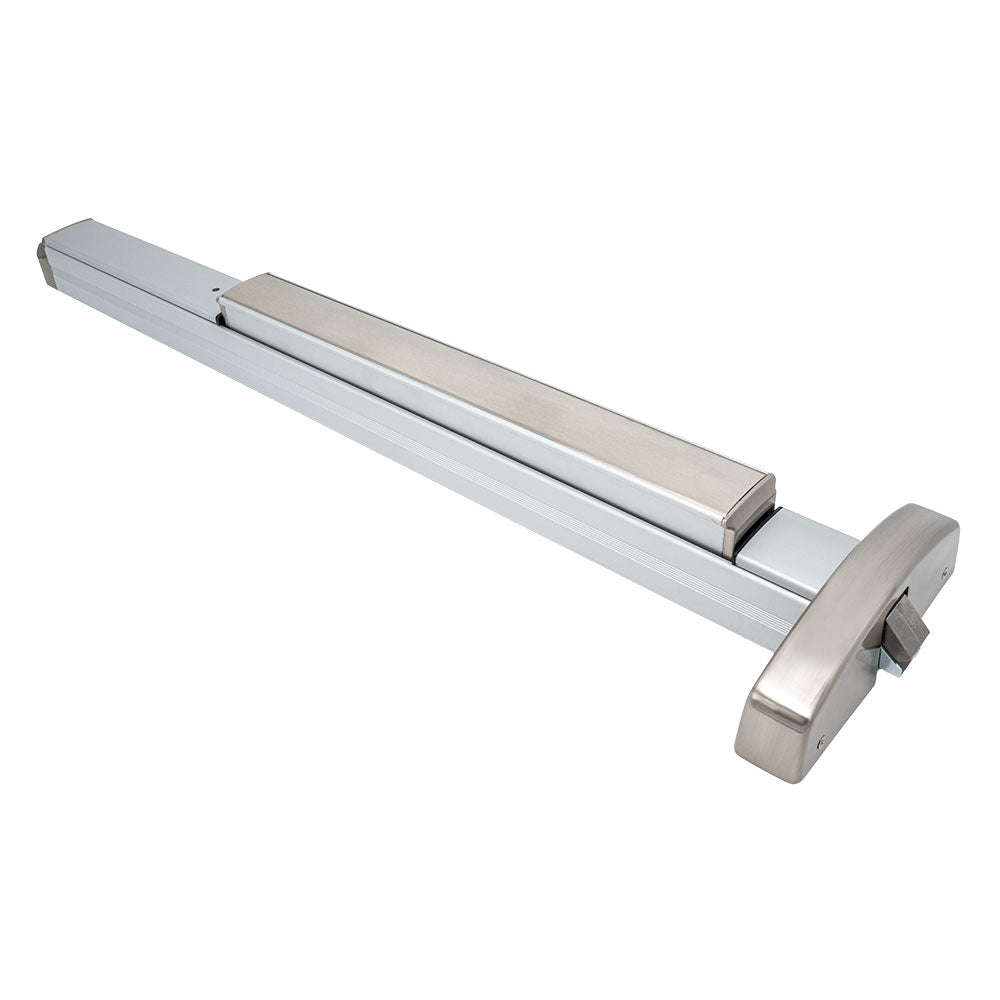

PDQ 6400R Narrow Stile Rim Exit Device

$434.83
Usually Ships:  3-5 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • Non-handed for easy installation
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

PDQ 6400R Series Heavy-Duty Grade-1 Narrow Stile Rim Exit Device

This narrow stile exit device features a strong 3/4" pullman latch. This makes it ideal for narrow stile single door applications, or double door setups with a mullion. The 6400R exit device combines functionality and aesthetics, making it perfect for those who want a sleek, narrow look.

  • Exit Only (PDQ Exit Device Trim Sold Separately)
  • Cast chassis support for increased strength
  • Cush spring quiets in both directions
  • Compression spring for touch bar return
  • Heavy-duty flush end cap for pry resistance
  • Roller strike comes standard

Certifications

  • UL 305
  • UL 10C and CAN/ULC-S104 listed 3-hour fire door, for single doors up to 4’ x 10’, double doors with mullion up to 8' x 8' (single egress pair)
  • Certified to ANSI/BHMA A156.3 Grade 1
  • FL #40297 +60/-65 psf 4080 16ga Single
  • FL #40297 +50/-50 psf 4080 18ga Single
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
  • Meets requirements of the BAA as a COTS product manufactured in the United States
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, 622 Flat Black, 625 Bright Chrome, 626 Satin Chrome, 630 Satin Stainless Steel, 630F Full Satin Stainless Steel

ANSI/BHMA Standard

Certified to ANSI/BHMA A156.3 Grade 1

Usage

Heavy Duty

Stile Type

Narrow

Minimum Stile Width

3-1/8” with 639027/639057 strike and 2-1/8” on aluminum frames with blade stop strike

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

Roller Strike

Trim

None - Exit Only (Outside Trim Sold Separately)

Handing

Completely Reversible

Warranty

10 Year Limited

Buy American Act Compliance

Meets BAA - Buy American Act
