Pamex

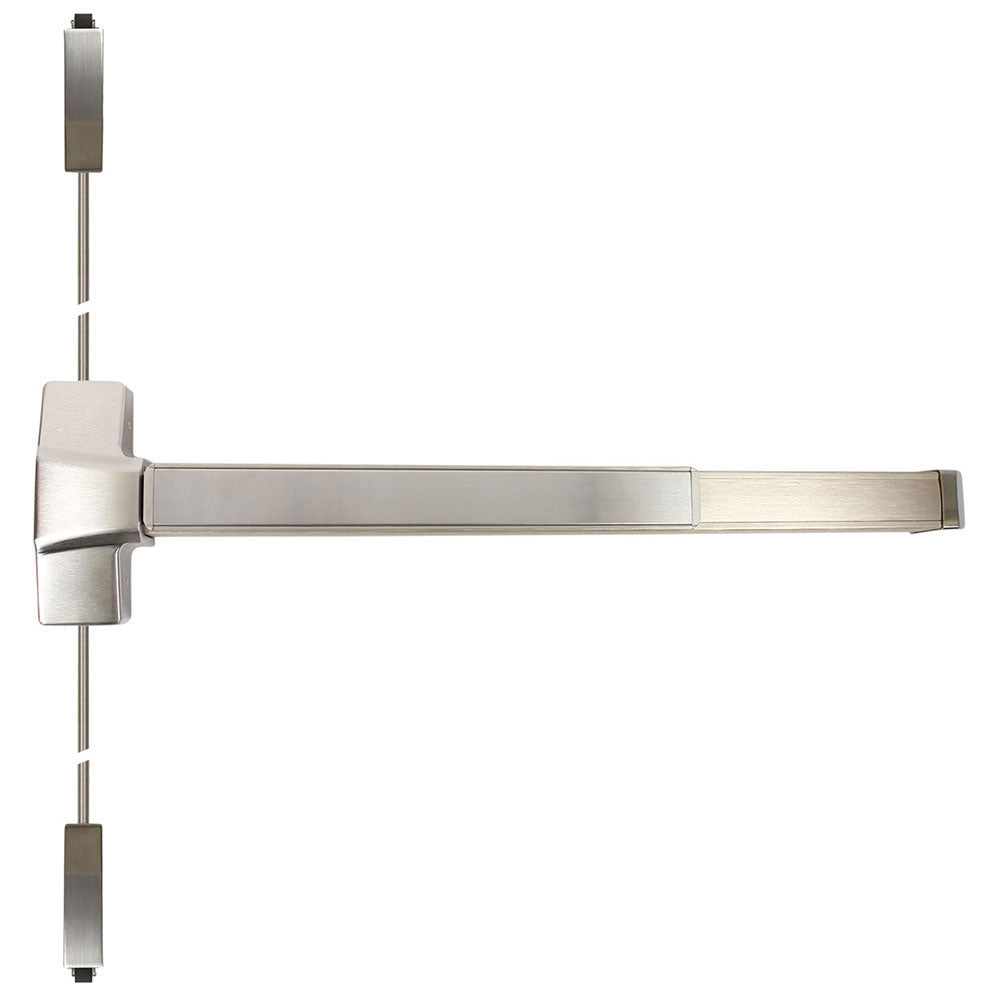

Pamex EF9000V Fire-Rated Surface Vertical Rod Exit Device

$705.66
Usually Ships:  2-3 Business Days
  • ANSI/BHMA A156.3 Grade 1
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed for panic and fire exit hardware

Available Options:

Clear

Product Overview

Pamex EF9000V Surface Vertical Rod Exit Device, Fire-Rated, Wide Stile Pushpad, Hex Dogging, Exit Only

E9000 Series Vertical Rod

  • Exit Only (Pamex Exit Device Trim sold separately)
  • Heavy Duty Commercial Application
  • ANSI/BHMA A156.3, Grade 1
  • UL 3-hour fire rated
  • UL Listed, UL(10C) and UBC (7-2) codes
  • Compatible only with Pamex E9000 trims & accessories
Brand

Finishes

US19 Matte Black, US26D Satin Chrome, US32D (630) Satin Stainless Steel, 690 Dark Bronze (Powder Coated)

Size

36" x 84", 36" x 96", 48" x 84", 48" x 96"

Device Type

Surface Rod Device

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.3 Series—Grade 1

Fire-Rating

UL/cUL 10C 3-Hour

Stile Type

Wide (Standard)

Minimum Stile Width

5-3/8” minimum for single doors and standard 5/8” stop 4-7/8” minimum for double doors

Door Thickness

1-3/4"

Dogging Feature

None

Warranty

Limited Lifetime Warranty
