Product Overview

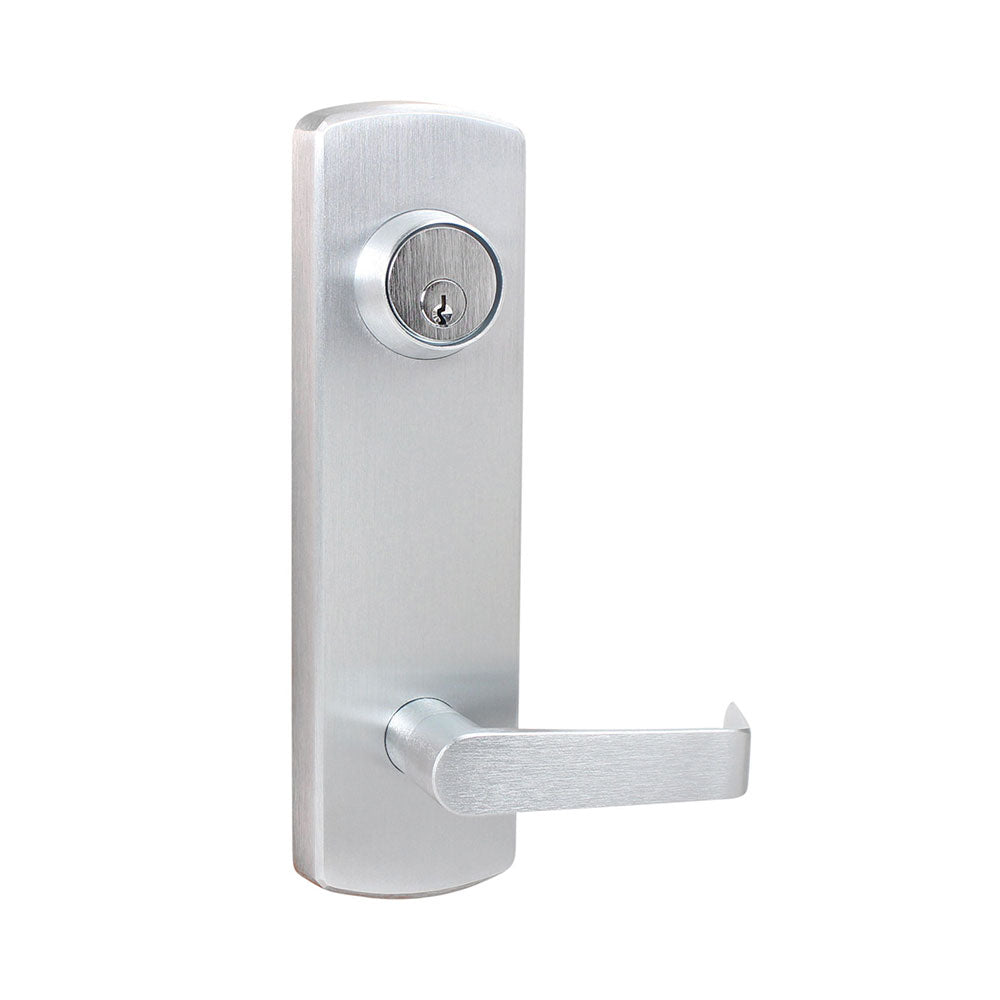

Pamex E9000 Exit Device Escutcheon Lever Trim For E9000 Series, L3 Lever Design, Entry Function
Compatible only with Pamex E9000 exit device
ANSI Function 13 – Lever trim locks or unlocks by key
- For use with E9000 Series Exit Devices
- ANSI/BHMA A156.3, Grade 1
- Heavy-duty lever, L3 design
- Door thickness: 1-3/4" to 2" standard
- Includes mortise cylinder
- Keyway: 6-pin SC standard
| Brand | |
|---|---|
| Finishes |
US26D (626) Satin Chrome, US10B (613) Oil Rubbed Bronze, US19 Matte Black |
| ANSI Grade |
ANSI Grade 1 |
| Usage |
Heavy Duty |
| Cylinder & Keys |
1-1/8" mortise cylinder, keyed different, with 2 keys |
| Cylinder Format |
Conventional |
| Keyway |
Schlage C Keyway |
| Handing |
Non Handed – Completely Reversible |
| Function |
Entry / Classroom |
| Door Thickness |
1-3/4" |
| Compatible Devices |
E9000R, E9000V, E9020V |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
