Pamex

Pamex EF9000R Fire-Rated Rim Exit Device

$513.07
This item ships FREE! Usually Ships:  2-3 Business Days
  • ANSI/BHMA A156.3 Grade 1
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed for panic and fire exit hardware

Available Options:

Clear

Product Overview

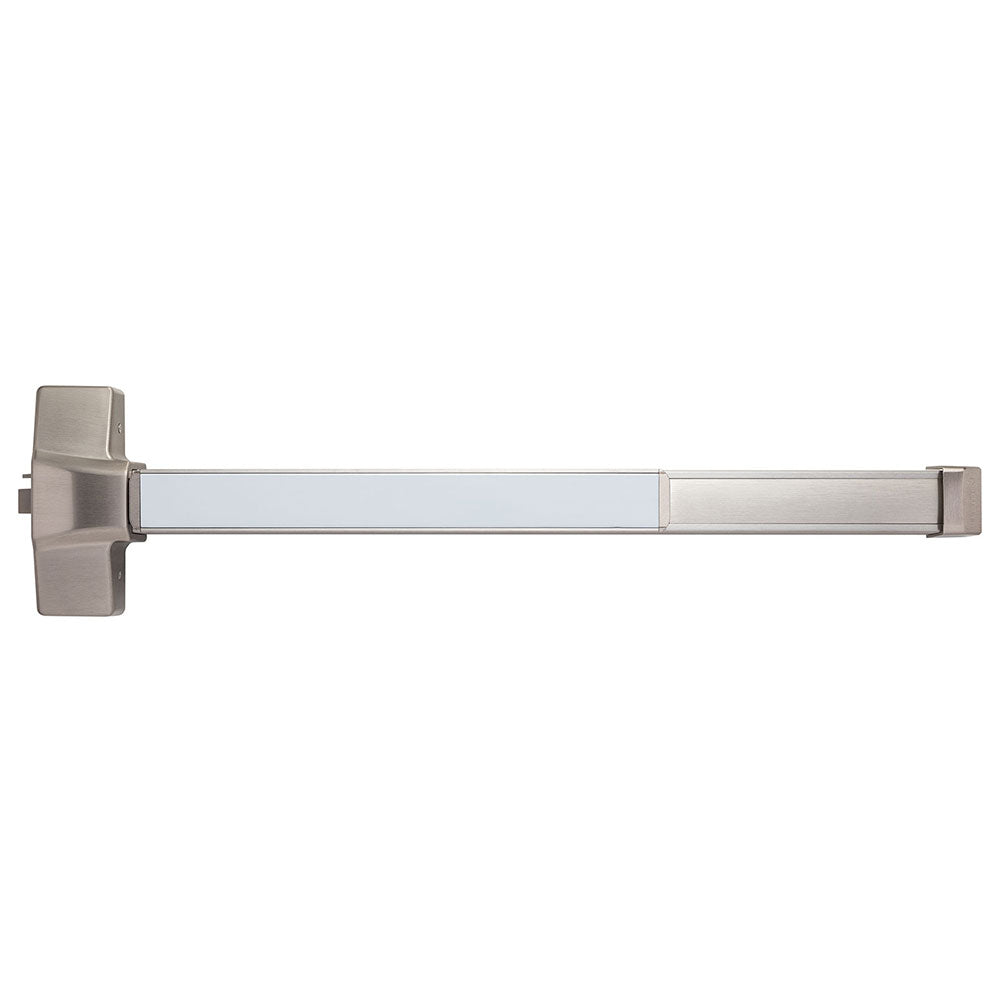

Pamex EF9000R Rim Exit Device, Wide Stile Pushpad, Fire-Rated, Exit Only

E9000 Series Rim Type Exit Device

  • Exit Only (Exit Device Trim sold separately)
  • Heavy Duty Commercial Application
  • ANSI/BHMA A156.3, Grade 1
  • UL Listed, UL(10C) and UBC (7-2) codes
  • UL 3-hour fire rated
  • Available for 3’ and 4’ wide doors
  • Compatible only with Pamex E9000 trims & accessories
Brand

Finishes

US19 Matte Black, US26D Satin Chrome, US32D (630) Satin Stainless Steel, 690 Dark Bronze (Powder Coated)

Length

33" (For 32" to 36" Wide Door), 42" (For 44" to 48" Wide Door)

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.3 Series—Grade 1

Fire-Rating

UL/cUL 10C 3-Hour

Strike

Stainless steel with plated rollers

Stile Type

Wide (Standard)

Minimum Stile Width

5-3/8” minimum for single doors and standard 5/8” stop 4-7/8” minimum for double doors

Door Thickness

1-3/4"

Dogging Feature

None

Warranty

Limited Lifetime Warranty
