Norton

Norton CLP7500R Door Closer with CloserPlus Ramp Parallel Hold Open Arm

$362.63
Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade 1 certified
  • Includes CloserPlus Ramp hold-open arm
  • Parallel arm mount only, handle controls hold-open function

Available Options:

Clear

Product Overview

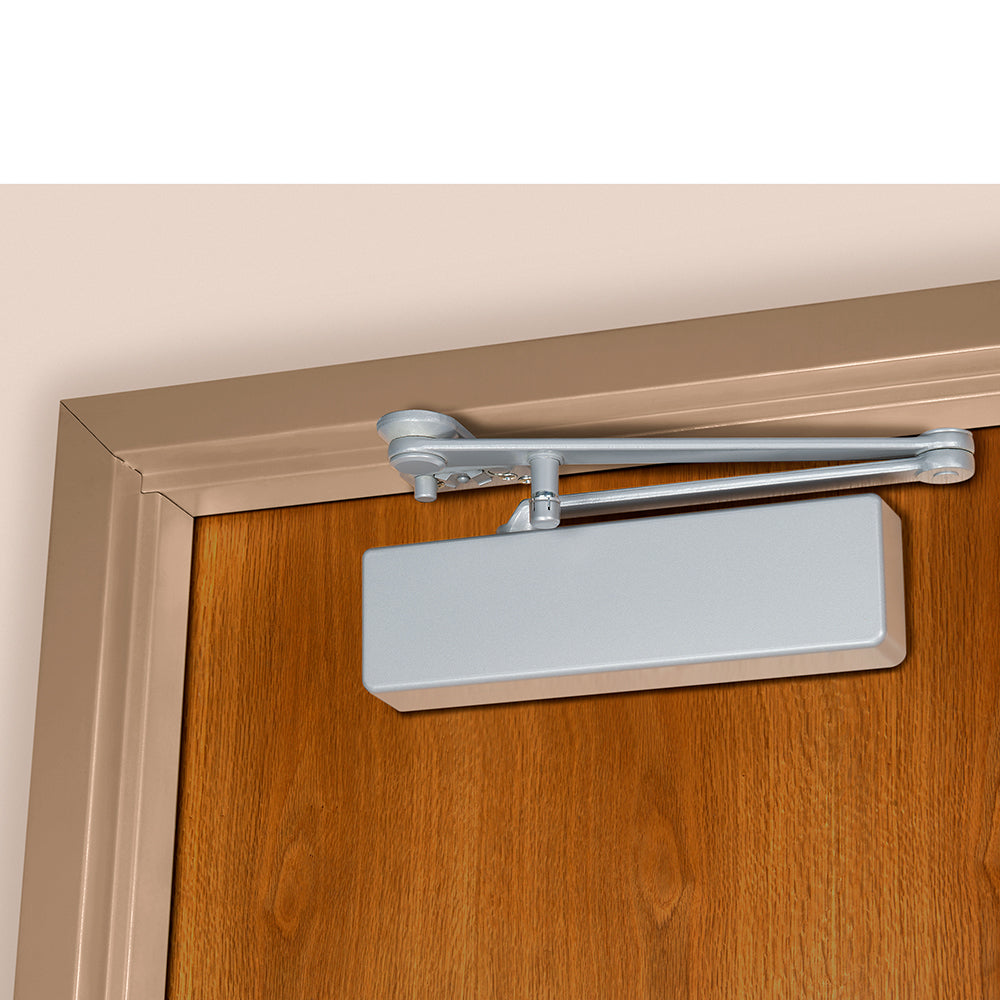

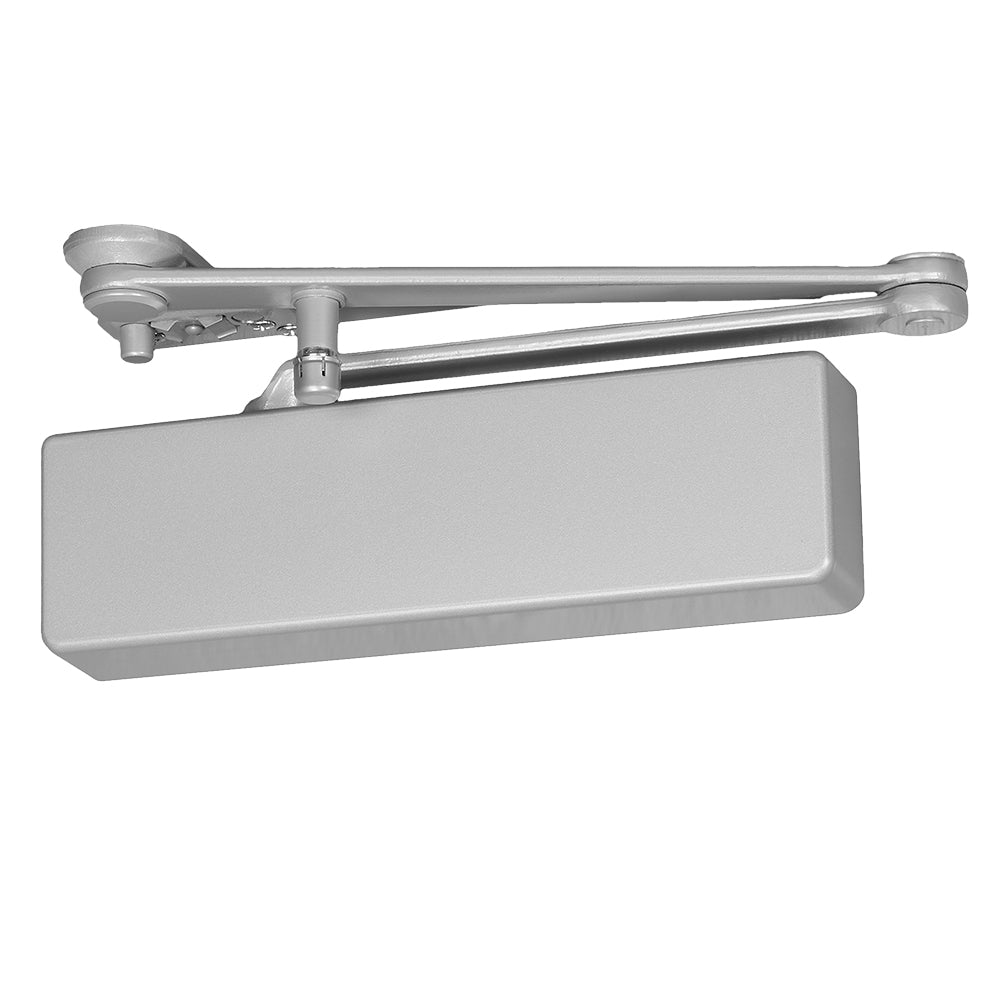

Norton CLP7500R Heavy Duty Grade-1 CloserPlus Ramp Hold-Open Door Closer, Adjustable Size 1-6, Parallel Arm Mount Only, Plastic Cover

The 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities that demand reliability, such as government, healthcare, and educational institutions.

  • Ramp and plunger design that easily slides into place reducing wear
  • Arm incorporates a stop at the arm's soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments
  • Prior to dead stop the door closer's backcheck feature slows the door speed to reduce the impact of the stop action
  • Ideal for applications where the door will constantly be pulled out of hold open
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Exceeds 25 million cycles
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum body
  • Stacked valves

Certifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
  • This product is manufactured in an ISO 9001 facility
Brand

Finishes

689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), BSP - Black Suede Powder Coat, 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), WSP - White Suede Powder Coat

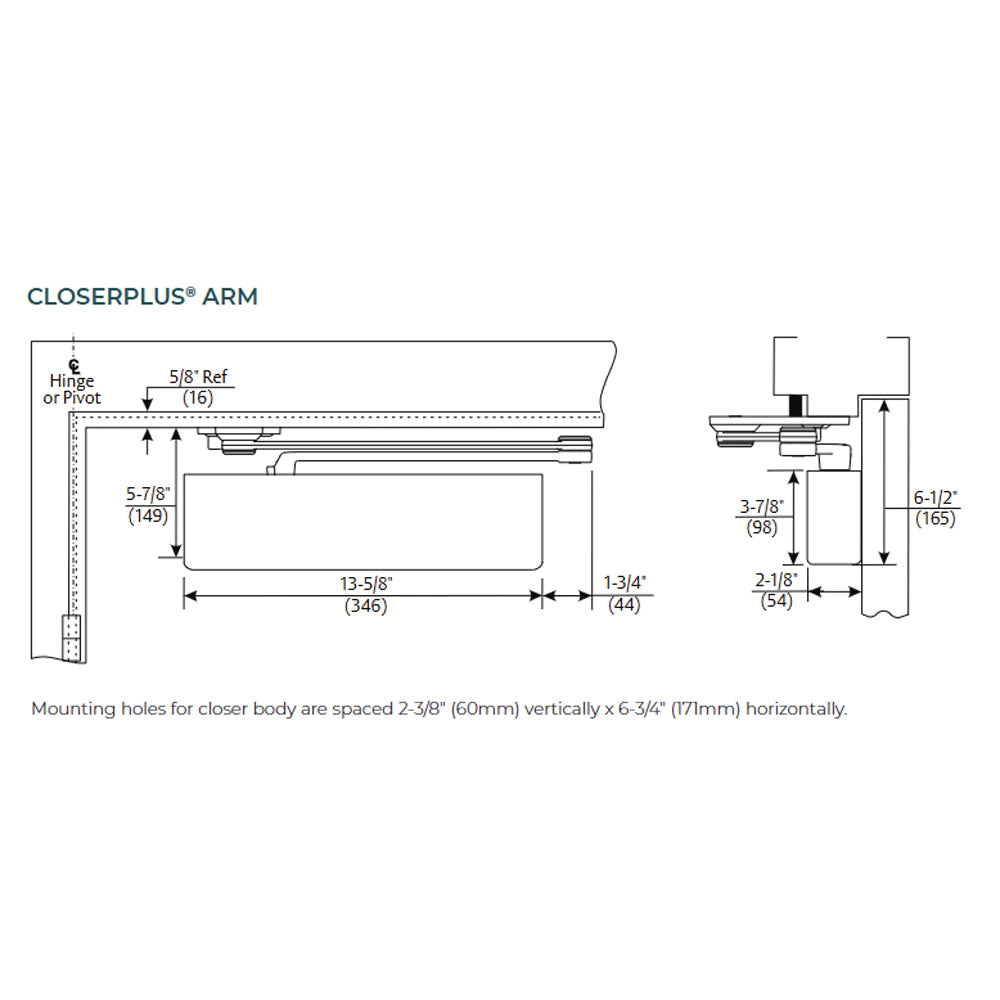

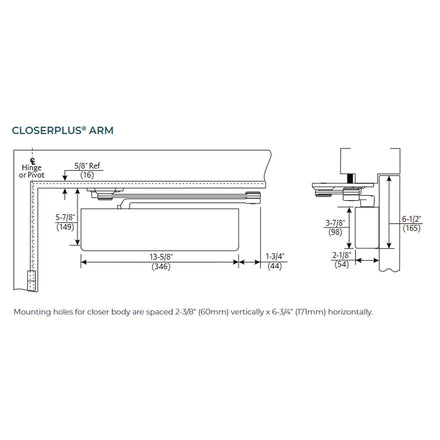

Templating (Hole Pattern)

2-3/8" x 6-3/4"

Usage

Heavy Duty

Mounting Options

Parallel Arm (Push Side)

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Cover

Full Cover

Handing

Non-Handed

Door Application

Hollow Metal or Wood

Warranty

30 Years

Norton-7500-Series-Door-Closer-CLP7500-CLP7700-CloserPlus-Parallel-Rigid-Non-Hold-Open-or-Hold-Open-Installation-Instructions Loading... Loading...
