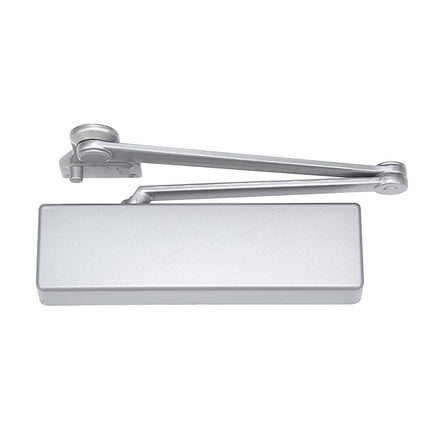

Norton CLP7500 Door Closer with CloserPlus Parallel Stop Arm

$303.67
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade 1 certified
  • Includes CloserPlus® dead stop arm
  • Parallel arm mounting

Available Options:

Clear

Product Overview

Norton CLP7500 Grade 1 Closer Plus Parallel Arm Door Closer, Push Side, Parallel Arm Heavy Duty, Size 1 to 6

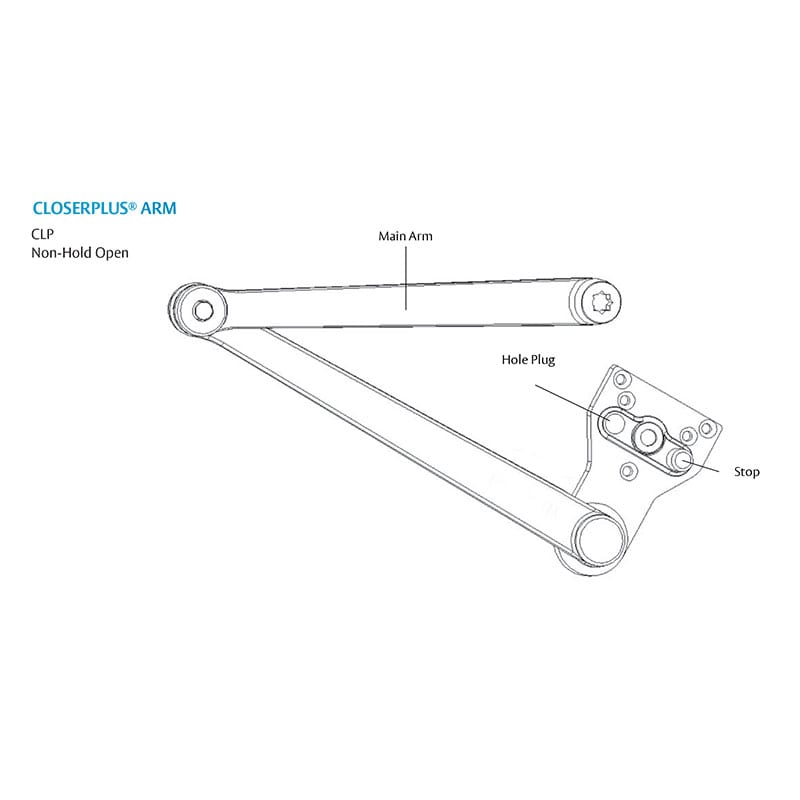

This arm incorporates a stop at the arm’s soffit plate to dead stop the door at a predetermined degree of door swing between 85° to 110°, in 5° increments. Prior to dead stop the door closer’s backcheck feature slows the door speed to reduce the impact of the stop action. The CloserPlus Arm is intended for use where an auxiliary door stop cannot be utilized and no more than moderate abuse is anticipated. Where more extreme conditions are expected, use of a Unitrol arm is recommended.

  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Exceeds 25 million cycles
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum body
  • Stacked valves

Certifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
  • This product is manufactured in an ISO 9001 facility
Brand

Finishes

690 Statuary Bronze (Powder Coated), BSP Black Suede Powder Coat, 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), 689 Aluminum (Powder Coated)

Templating (Hole Pattern)

2-3/8" x 6-3/4"

Usage

Heavy Duty

Mounting Options

Parallel Arm (Push Side)

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours

Cover

Full Cover

Handing

Non-Handed

Door Application

Hollow Metal or Wood

Warranty

30 Years
