Norton

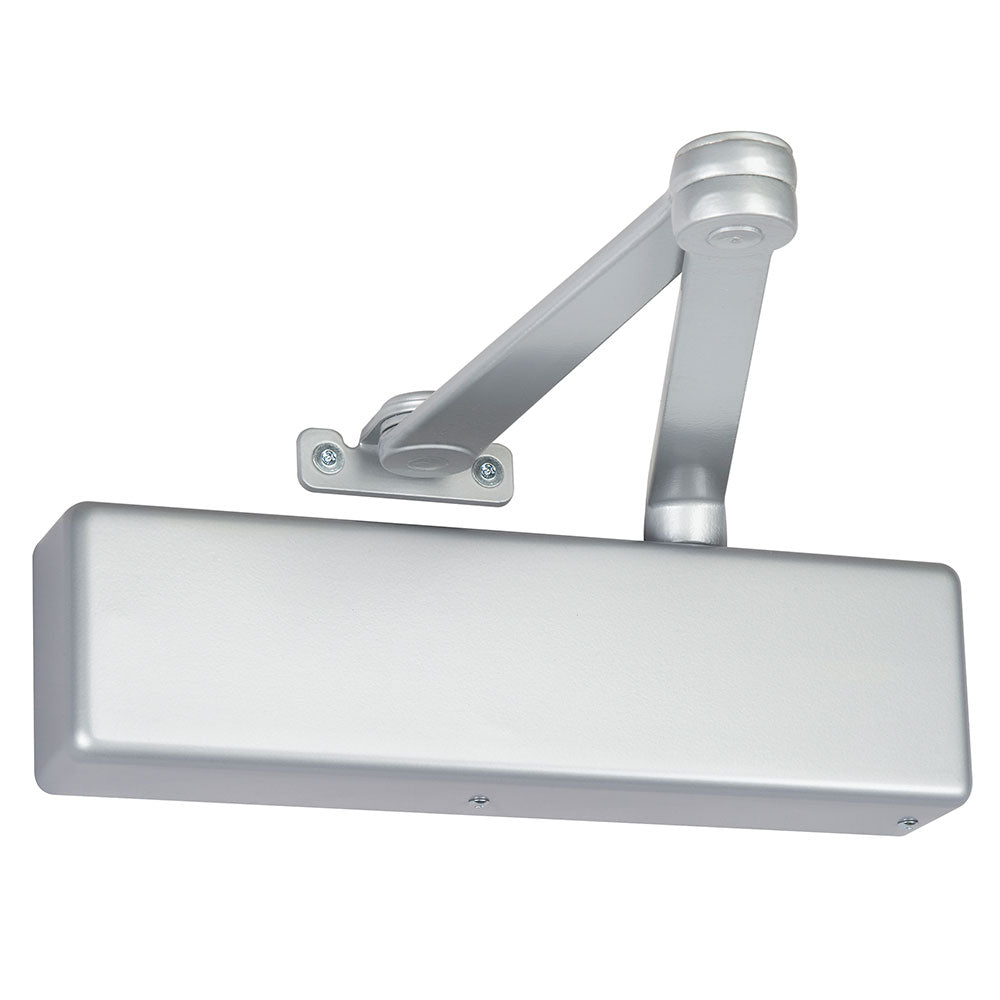

Norton 7570 High Security Door Closer with Regular Rigid Arm

$929.25
Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI A156.4, Grade 1 certified
  • Includes secuirty cover and Torx® screws
  • Constructed with robust materials and internal components

Available Options:

Clear

Product Overview

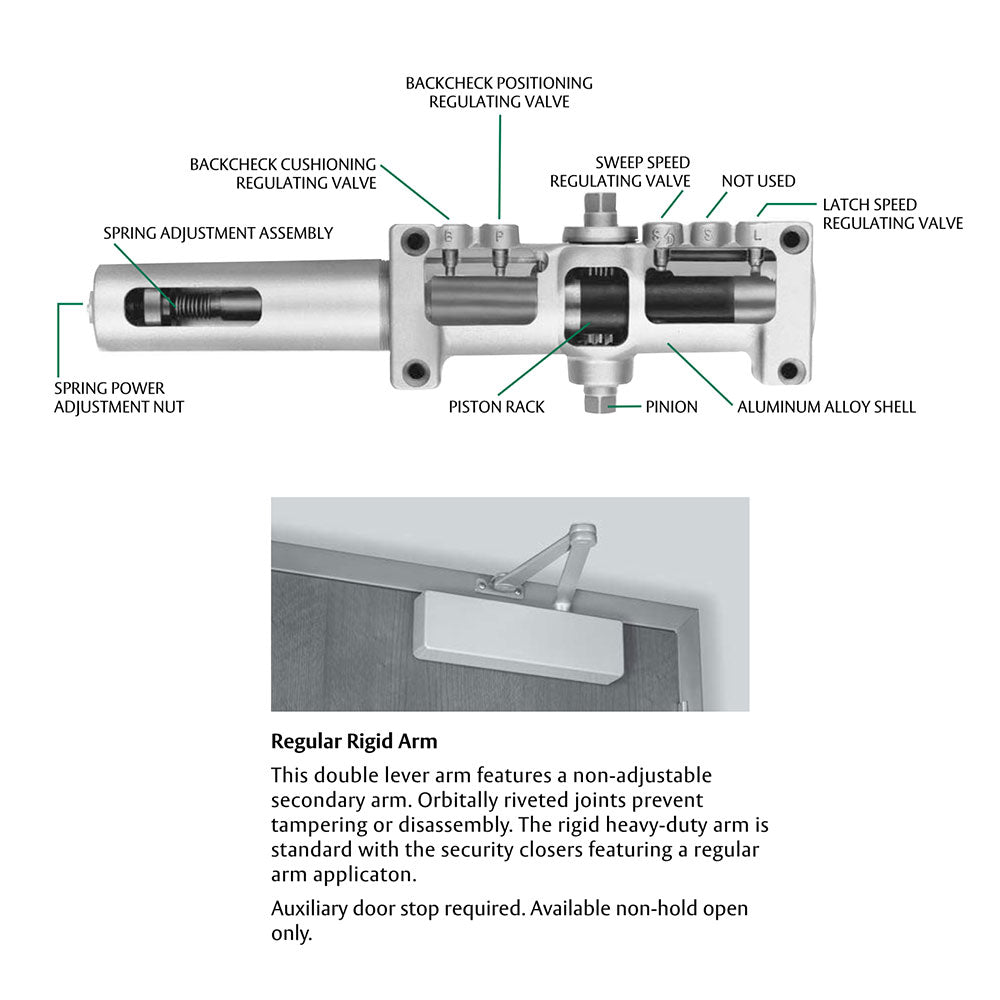

Norton 7570 Grade-1 High Security Door Closer with Regular Rigid Arm, Heavy-Duty Spring Sizes 1-6, Security Cover, Torx Screws

The 7570 Series high security door closer is designed to withstand maximum abuse, deter tampering, and help protect doors, walls, and hardware. Schools, government buildings, financial institutions, industrial facilities, and prisons and detention centers are ideal applications for this closer.

  • Cast aluminum body
  • Adjustable, heavy-duty spring sizes 1-6
  • Larger 1-1/2" (38mm) diameter piston
  • Security arms - joints feature permanent, orbital riveted elbow and arm show/soffit plate joints which prevent disassembly
  • Torx® drive machine screws with security pin standard
  • For interior or exterior doors
  • Adjustable backcheck cushioning and positioning
  • All series 7570 closer covers are handed (closer cover must match hand of door)
  • Fasteners: sex nuts, SDST
  • NorGlide® fluid
  • Closer footprint: 2-3/8" x 6-3/4"
  • Maximum Door Weight: 250 lbs

Certifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
  • MEA - City of New York Approved
Brand

Finishes

689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), BSP - Black Suede Powder Coat

Templating (Hole Pattern)

2-3/8" x 6-3/4"

Usage

Heavy Duty

Mounting Options

Regular (Pull Side)

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours

Cover

Full Cover

Fasteners

Torx® drive machine screws with security pin standard

Handing

Handed – LH, RH

Door Application

Hollow Metal or Wood

Door Weight

up to 250 lbs.

Warranty

30 Years
