Norton

Norton 5800 Series Low Energy Operator

$3,348.41
This item ships FREE! Usually Ships:  1-2 Business Days
  • World's only regenerative power door operator
  • Maximum door weight: 250lbs at 48" Wide

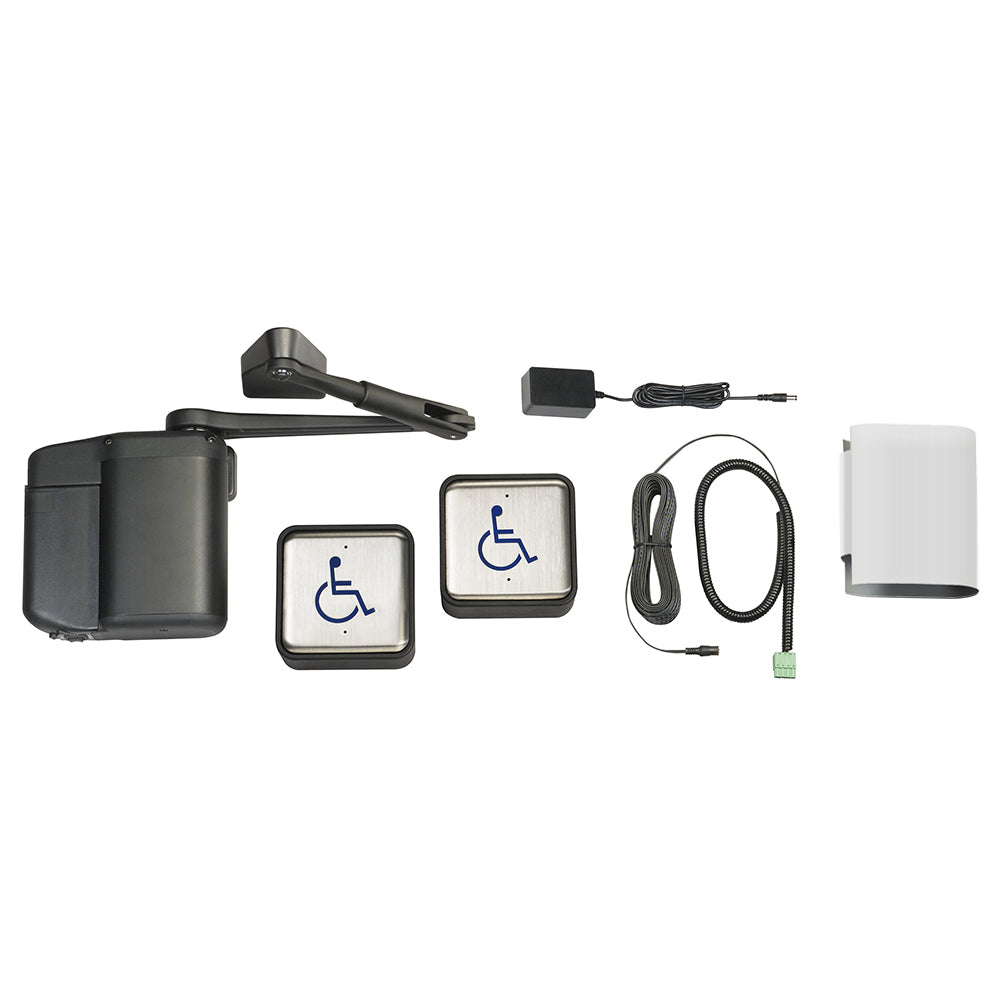

  • Bundled into easy and convenient kits

Available Options:

Clear

Product Overview

Norton 5800 Series Low Energy Operator

As one of the world’s only regenerative power door operators, Norton Rixson’s 5800 Series is certified by GreenCircle® to reduce energy consumption by as much as 100 percent versus other comparable operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, the 5800 is simple to install and use.

HOW IT WORKS

The 5800 Series Pro is an extreme duty, low energy operator designed for moderate to high traffic manual opening applications that occasionally requires powered operation. A regenerative drive system charges an onboard battery pack eliminating the need for electrical power.

The 80/25 guidelines should be applied when ordering this operator. It is recommended that the 5800 Series Pro be used on a door that gets approximately 80 manual cycles or more per day and is used 25% or less automatically. When applied using the 80/25 guideline this operator will self-generate all the power it needs to keep its field replaceable, onboard, battery pack charged for up to 12 years and in some cases longer.

FEATURES

  • Regenerative drive or continuous duty operation
  • Non-handed
  • 95° door opening
  • Maximum door weight: 250 lbs
  • Push and pull side mounting
  • Radio frequency stainless steel wall switches
  • Integral RF receiver
  • Shock absorbing arm
  • 24VDC input port
  • ADA1015P hardware kit
  • Auxiliary activation input port
  • Patented auto-tune feature
  • 2 year limited warranty

CERTIFICATIONS

  • ANSI/BHMA A156.19 certified
  • ETL tested to UL/cUL 325 standard for automatic operators
  • Complies with requirements for Americans with Disabilities Act (ADA)
  • UL10C positive pressure 90 minute
  • Manufactured in an ISO 9001 and ISO 14001 certified facility
  • Verified by GreenCircle to offer these energy savings as compared to similar products:
    • 5800 Series (plug-in) – 91% efficiency
    • 5800 Series (wireless) – 100% efficiency

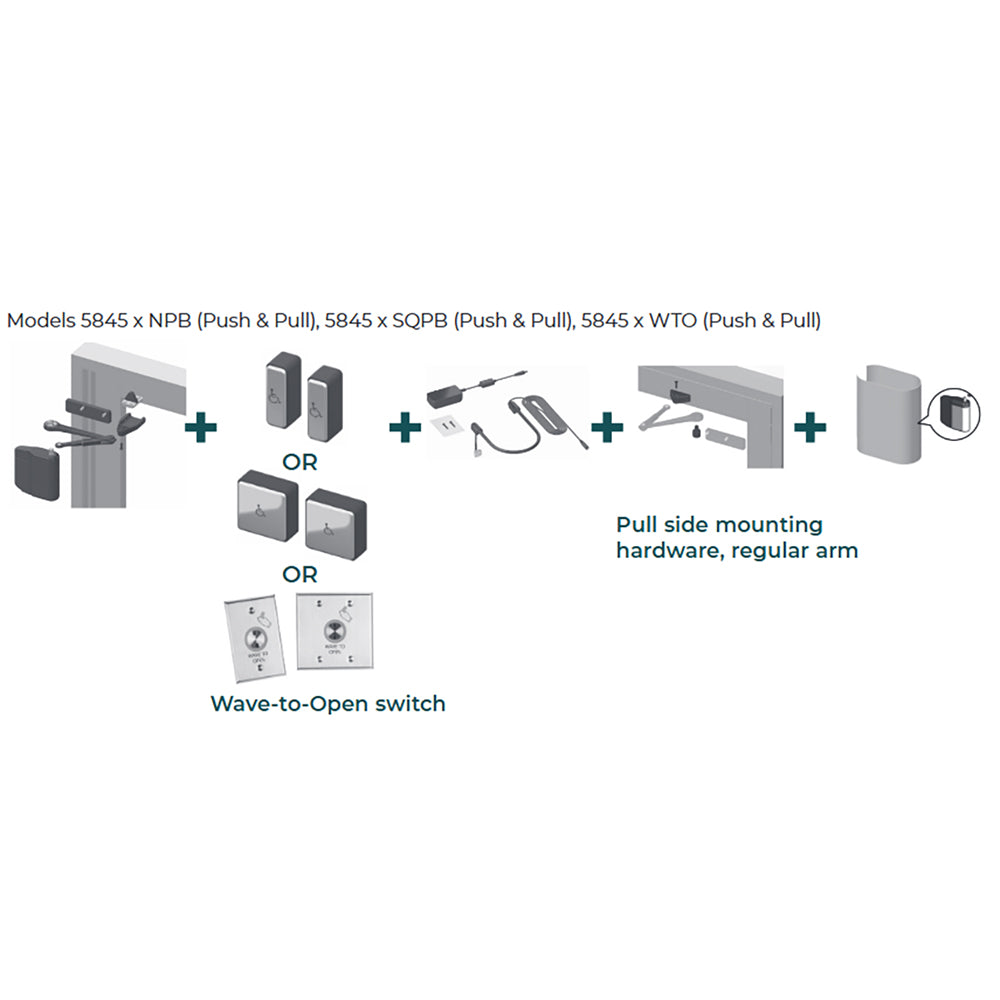

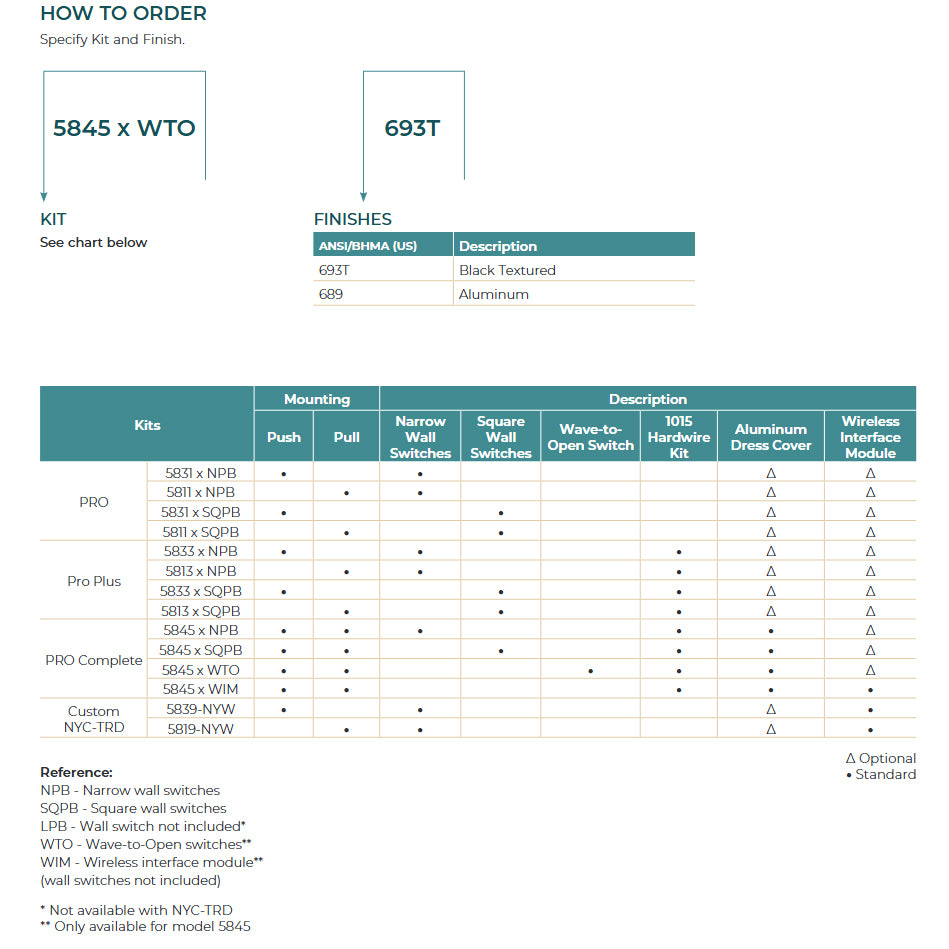

Models: 5831xNPB-689, 5831xNPB-693T, 5811xNPB-689, 5811xNPB-693T, 5831xSQPB-689, 5831xSQPB-693T, 5811xSQPB-689, 5811xSQPB-693T, 5833xNPB-689, 5833xNPB-693T, 5813xNPB-689, 5813xNPB-693T, 5833xSQPB-689, 5833xSQPB-693T, 5813xSQPB-689, 5813xSQPB-693T, 5845xSQPB, 5845xNPB, 5845xWTO, 5845xWIM, 5839xNYW-689, 5839xNYW-693T, 5819xNYW-689, 5819xNYW-693T, 5849xNYW-689, 5849xNYW-693T

Brand

Finishes

689 Aluminum (Powder Coated), 693T (Black Textured)

Mounting

Surface Mount - Pull Side, Surface Mount - Push Side

Usage

Heavy Duty

Handing

Non Handed – Completely Reversible

Door Weight

up to 250 lbs.

ANSI/BHMA Standard

ANSI/BHMA A156.19 certified

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
